4. 4. 4. 4. Installation on ULTITUBE reservoirs

Installation on ULTITUBE reservoirs Installation on ULTITUBE reservoirs Installation on ULTITUBE reservoirs
Hold the glass tube of the reservoir and remove the top lid from the reservoir by
turning it anti-clockwise. Install LEAKSHIELD by screwing it onto the ULTITUBE. For
installation on ULTITUBE reservoirs, neither stainless steel bracket nor adapter
parts are used. After installation, the display can still be rotated to a desired posi-
tion.

5. 5. 5. 5. Installation of LEAKSHIELD Standalone

Installation of LEAKSHIELD Standalone Installation of LEAKSHIELD Standalone Installation of LEAKSHIELD Standalone
First attach the adapter set to the LEAKSHIELD module. To do this, first place the
o-ring (94997) in the groove on the LEAKSHIELD module. Then position the acetal
adapter plate and screw it tightly to LEAKSHIELD using the aluminum threaded
coupling.

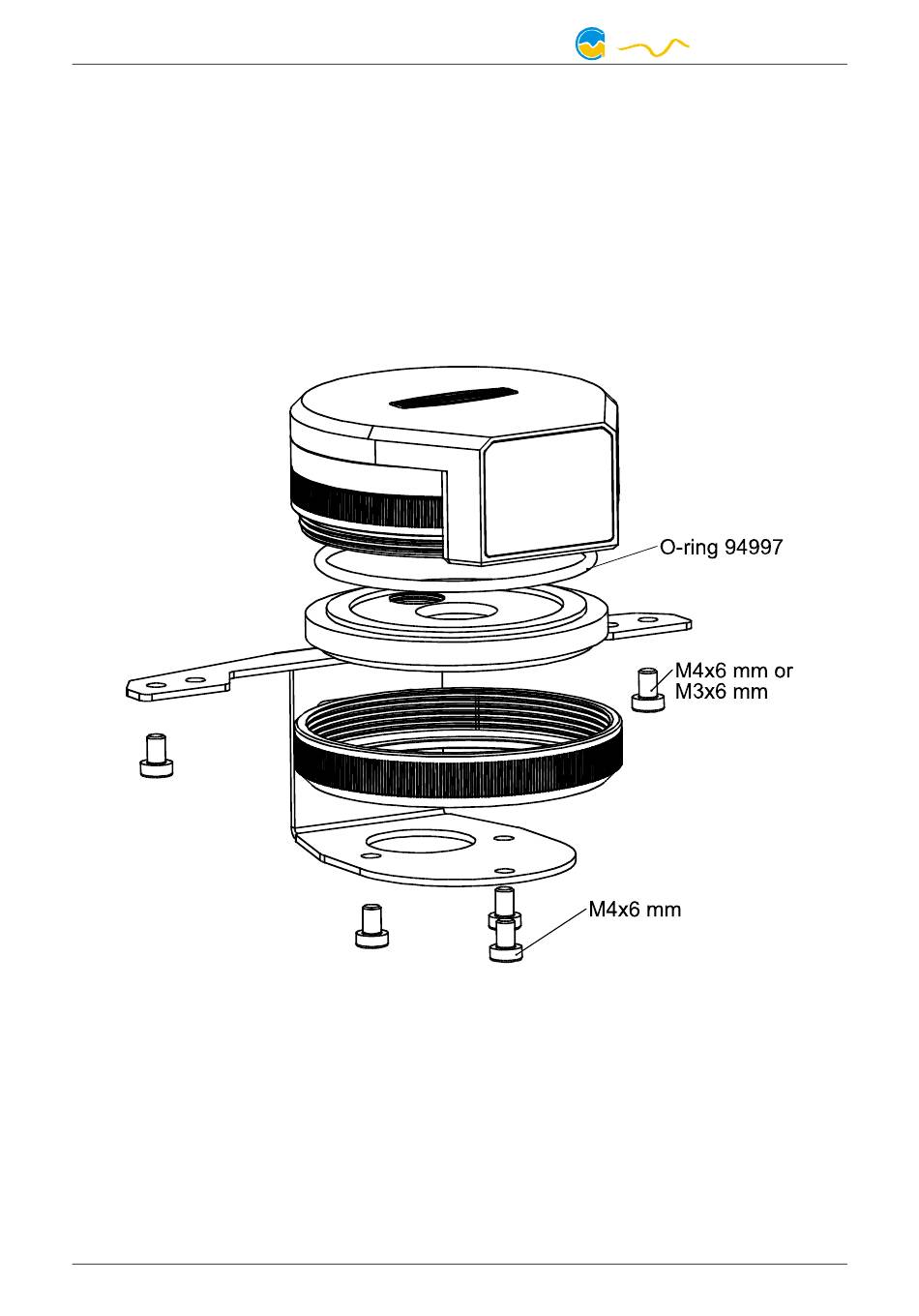

The stainless steel bracket is mounted with three M4x6 screws (see drawing).
LEAKSHIELD Standalone can be mounted to intended mounting holes for fans of
size 120 or 140 mm.
