9.2. Creating new overview pages and activating edit mode

9.2. 9.2. 9.2. Creating new overview pages and activating edit mode Creating new overview pages and activating edit mode Creating new overview pages and activating edit mode
In order to create a new overview page, click the plus symbol in the headline
"Overview pages".
Existing overview pages can be unlocked for editing by clicking lock symbol in the
page listing.
9.3.

9.3. Adding new elements

Adding new elements
9.3. 9.3. Adding new elements Adding new elements
If the currently selected overview page is unlocked for editing, a plus symbol is dis-
played in the top right corner of the screen. Click the symbol to add a
new element to the page and select the desired element from the followi-
ng list. All available data is displayed in a tree diagram, click the arrow
symbols to access individual items.
Confirm your selection by clicking the check symbol in the bottom right corner.
The new element will be displayed in the upper left corner and the configuration
window is displayed. Configure the element as described in the next chapters.
9.4. 9.4. 9.4.

9.4. Editing existing elements

Editing existing elements Editing existing elements Editing existing elements

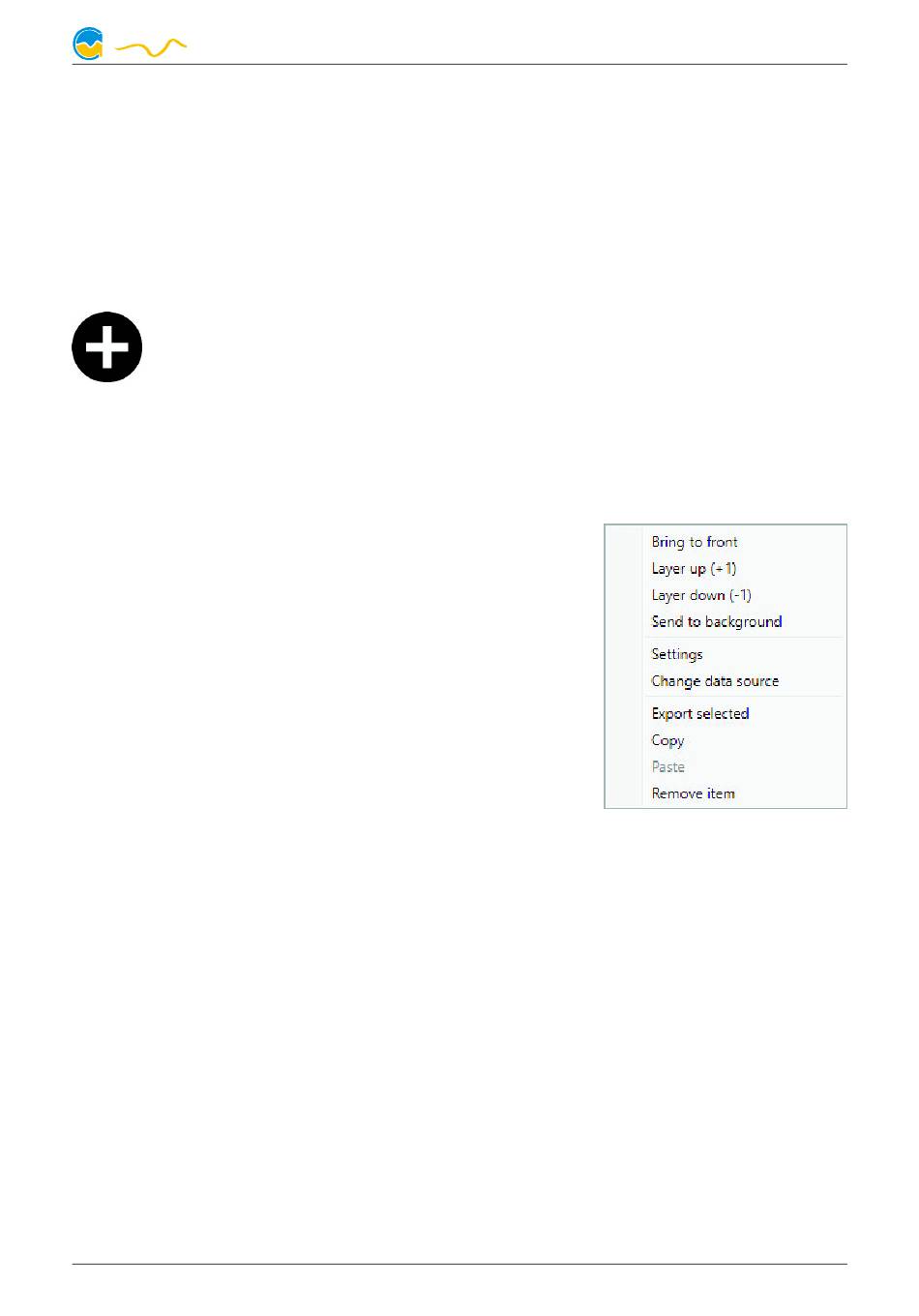

If the currently selected overview page is unlocked for
editing, right-clicking an element will access a context
menu.
To access the settings of an element, select "Settings"
in the context menu or simply double click the element.
If you want to move an element, "drag" this element
while holding down the mouse button. Release the
mouse button when the element is at the desired positi-
on.
9.5. 9.5. 9.5.

9.5. Values and names

Values and names Values and names Values and names
If the currently selected overview page is unlocked for editing, right-click an ele-
ment and select "Settings". You may also double click the element.
Font face, size and color as well as position, decimal places and unit can be confi-
gured for individual values.

9.6. Detailed data elements

9.6. Detailed data elements
9.6. 9.6. Detailed data elements Detailed data elements
If the currently selected overview page is unlocked for editing, right-click an ele-
ment and select "Settings". You may also double click the element. Apart from po-
sition, size and color, the style of the element can be selected and configured. The
following styles are available:
Headline only: Compact display as a headline.
●
Text: Displays the numerical value in a box with a headline.
●
Bar graph: Displays numerical value as well as bar graph.
●
Chart: Displays the value in chronological sequence as a chart.
●
