Connection

WEBSERVER HUB/5G

Modbus RTU

Note: Available from version 4.01.
EN

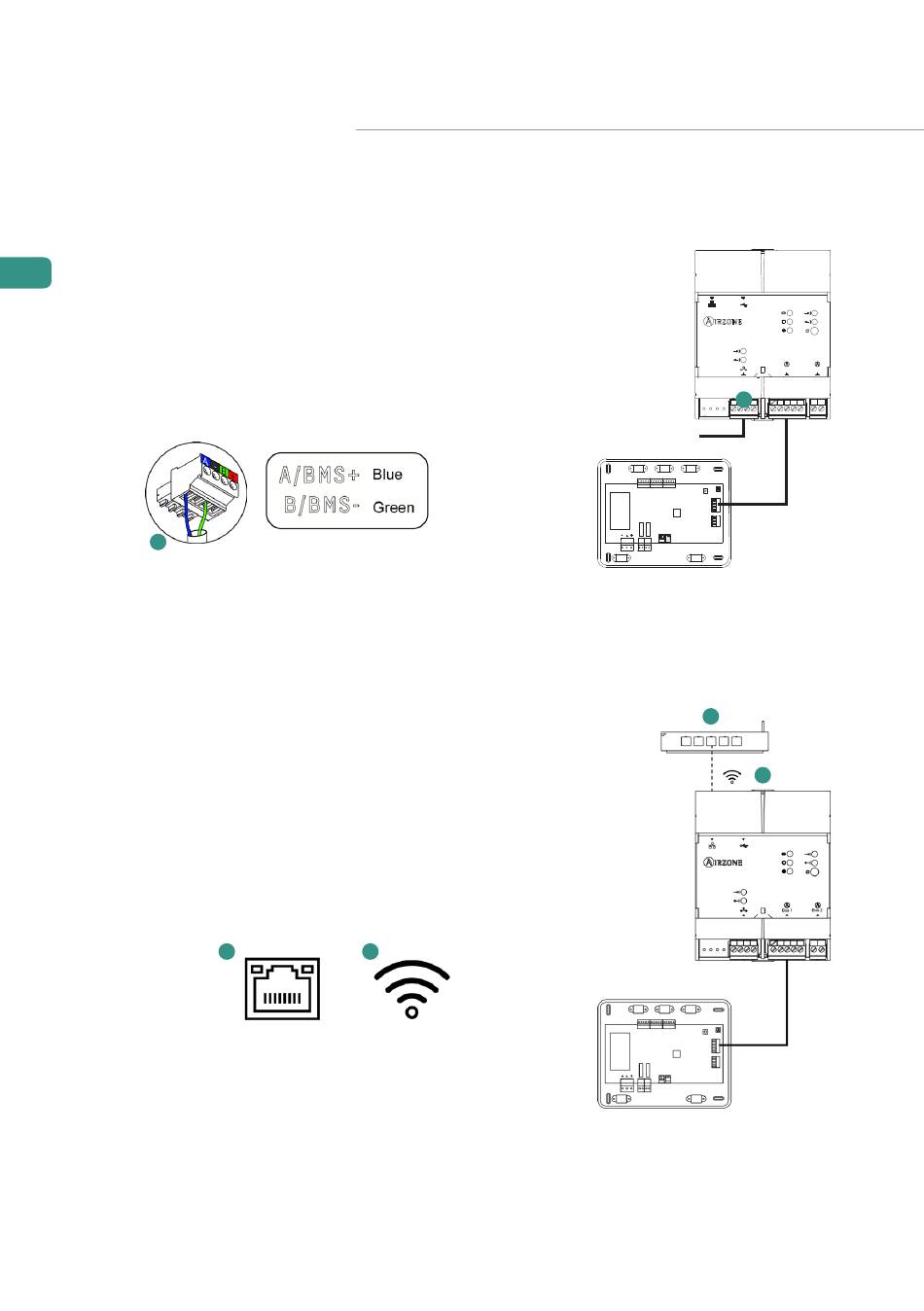

Connect the Modbus communication cable to the Modbus
interface. Consult the Modbus RTU Settings section.
1

Modbus TCP/IP

Note: Available from version 4.01.
Connect your router to the Webserver using the Ethernet
cable. Its presence will be detected automatically and the
parameters will be configured to make Modbus work.
See Modbus TCP/IP Settings.
6
1 2
1
Modbus RTU
ON
1 2
1
2
Modbus TCP
Bus 1 Bus 2
