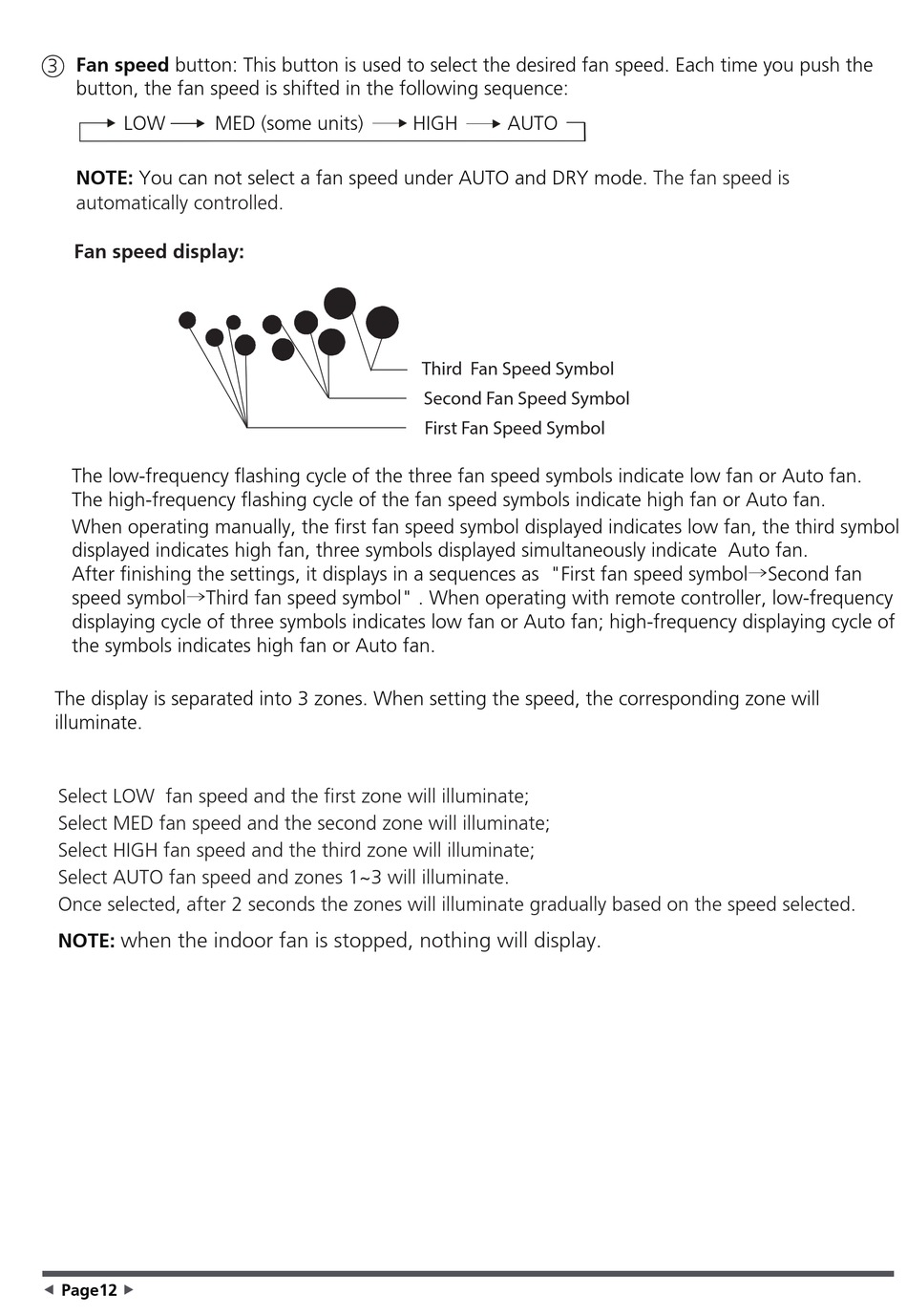

INVENTOR V5MFI-66B Benutzer- Und Installationshandbuch Seite 12

Fan speed button: This button is used to select the desired fan speed. Each time you push the
3
button, the fan speed is shifted in the following sequence:
LOW
NOTE: You can not select a fan speed under AUTO and DRY mode.
automatically controlled.
Fan speed display:
The low-frequency flashing cycle of the three fan speed symbols indicate low fan or Auto fan.
The high-frequency flashing cycle of the fan speed symbols indicate high fan or Auto fan.
When operating manually, the first fan speed symbol displayed indicates low fan, the third symbol
displayed indicates high fan, three symbols displayed simultaneously indicate Auto fan.
After finishing the settings, it displays in a sequences as "First fan speed symbol→Second fan
speed symbol→Third fan speed symbol" . When operating with remote controller, low-frequency
displaying cycle of three symbols indicates low fan or Auto fan; high-frequency displaying cycle of
the symbols indicates high fan or Auto fan.
The display is separated into 3 zones. When setting the speed, the corresponding zone will
illuminate.
Select LOW fan speed and the first zone will illuminate;
Select MED fan speed and the second zone will illuminate;
Select HIGH fan speed and the third zone will illuminate;
Select AUTO fan speed and zones 1~3 will illuminate.
Once selected, after 2 seconds the zones will illuminate gradually based on the speed selected.
when the indoor fan is stopped, nothing will display.
NOTE:
 
Page12
MED (some units) HIGH AUTO
Third Fan Speed Symbol
Second Fan Speed Symbol
First Fan Speed Symbol
The fan speed is
