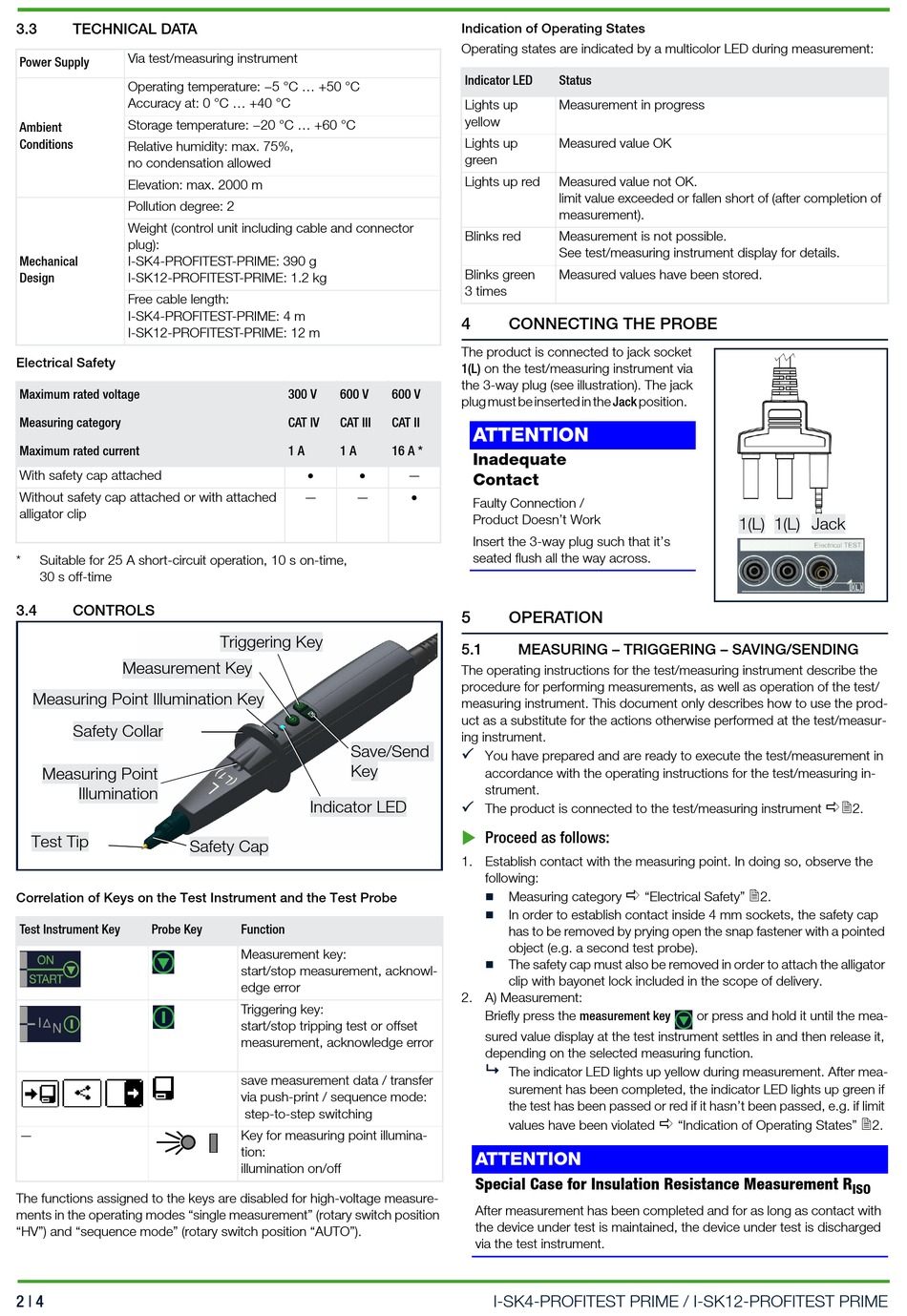

3.3

TECHNICAL DATA

Via test/measuring instrument
Power Supply
Operating temperature: −5 °C ... +50 °C
Accuracy at: 0 °C ... +40 °C
Storage temperature: −20 °C ... +60 °C
Ambient
Conditions
Relative humidity: max. 75%,
no condensation allowed
Elevation: max. 2000 m
Pollution degree: 2
Weight (control unit including cable and connector
plug):
Mechanical I-SK4-PROFITEST-PRIME: 390 g
Design I-SK12-PROFITEST-PRIME: 1.2 kg
Free cable length:
I-SK4-PROFITEST-PRIME: 4 m
I-SK12-PROFITEST-PRIME: 12 m
Electrical Safety
Maximum rated voltage
Measuring category
Maximum rated current
With safety cap attached
Without safety cap attached or with attached
alligator clip
* Suitable for 25 A short-circuit operation, 10 s on-time,
30 s off-time
3.4 CONTROLS
Measurement Key
Measuring Point Illumination Key
Safety Collar
Measuring Point
Illumination
Test Tip
Correlation of Keys on the Test Instrument and the Test Probe
Test Instrument Key Probe Key
—
The functions assigned to the keys are disabled for high-voltage measure-
ments in the operating modes "single measurement" (rotary switch position
"HV") and "sequence mode" (rotary switch position "AUTO").
2 | 4
300 V 600 V
CAT IV CAT III
1 A 1 A
 
— —
Triggering Key
Save/Send
Key
Indicator LED
Safety Cap
Function
Measurement key:
start/stop measurement, acknowl-
edge error
Triggering key:
start/stop tripping test or offset
measurement, acknowledge error
save measurement data / transfer
via push-print / sequence mode:
step-to-step switching
Key for measuring point illumina-
tion:
illumination on/off
Indication of Operating States
Operating states are indicated by a multicolor LED during measurement:
Indicator LED Status
Lights up Measurement in progress
yellow
Lights up Measured value OK
green
Lights up red Measured value not OK.
limit value exceeded or fallen short of (after completion of
measurement).
Blinks red Measurement is not possible.
See test/measuring instrument display for details.
Blinks green Measured values have been stored.
3 times
4

CONNECTING THE PROBE

The product is connected to jack socket
1(L) on the test/measuring instrument via
the 3-way plug (see illustration). The jack
600 V
plug must be inserted in the Jack position.
CAT II
ATTENTION
16 A *
Inadequate
—
Contact

Faulty Connection /
Product Doesn't Work
Insert the 3-way plug such that it's
seated flush all the way across.
5 OPERATION
5.1 MEASURING – TRIGGERING – SAVING/SENDING
The operating instructions for the test/measuring instrument describe the
procedure for performing measurements, as well as operation of the test/
measuring instrument. This document only describes how to use the prod-
uct as a substitute for the actions otherwise performed at the test/measur-
ing instrument.

You have prepared and are ready to execute the test/measurement in
accordance with the operating instructions for the test/measuring in-
strument.

The product is connected to the test/measuring instrument

Proceed as follows:
1. Establish contact with the measuring point. In doing so, observe the
following:
 Measuring category

In order to establish contact inside 4 mm sockets, the safety cap
has to be removed by prying open the snap fastener with a pointed
object (e.g. a second test probe).

The safety cap must also be removed in order to attach the alligator
clip with bayonet lock included in the scope of delivery.
2. A) Measurement:
Briefly press the measurement key
sured value display at the test instrument settles in and then release it,
depending on the selected measuring function.

The indicator LED lights up yellow during measurement. After mea-
surement has been completed, the indicator LED lights up green if
the test has been passed or red if it hasn't been passed, e.g. if limit
values have been violated
ATTENTION
Special Case for Insulation Resistance Measurement R
After measurement has been completed and for as long as contact with
the device under test is maintained, the device under test is discharged
via the test instrument.
I-SK4-PROFITEST PRIME / I-SK12-PROFITEST PRIME
1(L) 1(L) Jack


"Electrical Safety" 2.
or press and hold it until the mea-

"Indication of Operating States"

2.

2.
ISO
