3. Operating instructions

3.1 Intended use

The
Ex-Pt 720
temperature measuring device for temperature measurements in
explosion-endangered areas (excluding firedamp-endangered
underground mining) of Zones 2 and 1 according to
IEC/CENELEC.

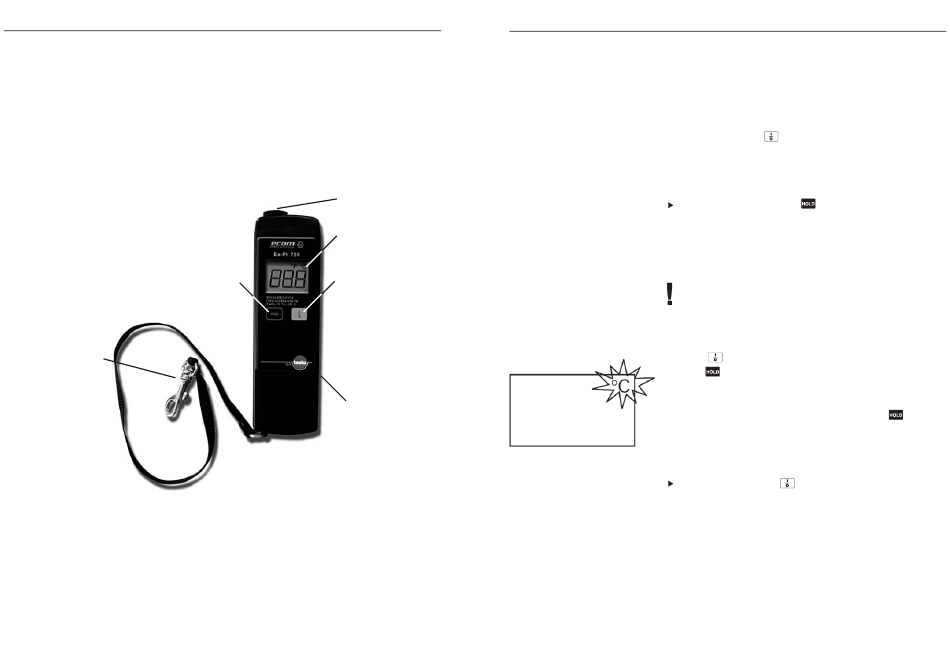

3.2 Display and operating elements

HOLD button
Carrying strap for
use in Zone 0

3.3 Initial operation

1 Please follow instruction manual.
2 Open instrument at the back using Allan key.
3 Insert battery correctly (+/-).
4 Put on battery cover.
5 Close instrument with screw.
24
is a precise, robust and simple to operate
Probe connection
Display
I/O button
Reverse side:
safety screw
3. Operating instructions

3.4 Switching-on and measuring

3.4.1 Switching-on

1 Connect probe (take note of plug coding).
2 Switch unit on with .
- After switching on, a short display and function test will take
place. The measuring instrument is now ready for use.

3.4.2 HOLD-Function

Hold readings in display via .

3.4.3 Auto-Off-Function

The Auto-Off-Function switches the unit off after 10 minutes'
operating time thus avoiding unintentional discharge of the
battery.
Cannot be switched off if HOLD function is activated.

3.4.4 Changing measuring unit

The display can be switched between °C and °F.
1 Press to switch on instrument.
2 Keep pressed during display and function tests.
- The measuring unit currently set flashes once the display and
function test is complete.
2 Switch between °C and °F within 5 seconds via
- If a button is not pressed within 5 seconds, the new
measuring unit comes into effect.

3.4.5 Switching-off

Switch the unit off with .
- The instrument is off if the display is no longer activated.
.
