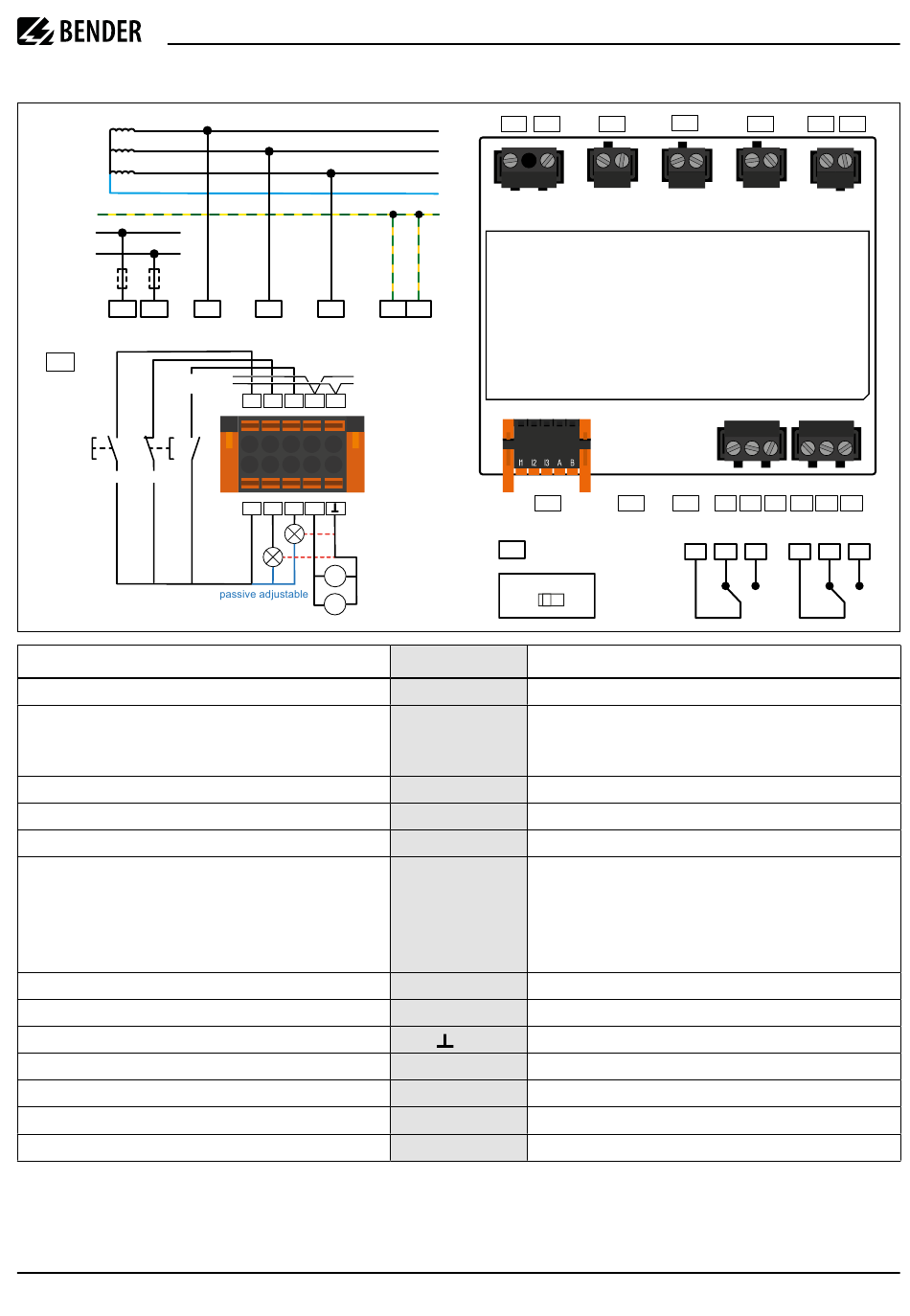

Anschlussbild
3(N)AC
U
n
U
S
A1/+
A2/–
X1
Deactivate
Device
high
low
active
active
TEST RESET
Anschlüsse
Stromversorgung, U
= 24...240V (50...400Hz)
s
Anschlüsse an das zu überwachende Netz
AC, 0...690 V / AC, 0...600 V für UL-Anwendungen /
DC, 0...1000 V
Anschluss an Erde
Konfigurierbare digitale Eingänge (z. B. Test, Reset, ...)
Serielle Schnittstelle RS-485 (BS-Bus)
Versorgungsspannung der Ein- und Ausgänge I, Q und M.
Elektr. Überlastschutz. Autom. Abschaltung bei Kurzschluss und
Transiente (rücksetzbar)
Bei Versorgung über ein externes 24-V-Netzteil dürfen A1/+,
A2/- nicht angeschlossen werden.
Konfigurierbarer digitaler Ausgang
Konfigurierbarer analoger Ausgang (z. B. Messinstrument)
Bezugspotential Masse
Ethernet-Anschluss, Webserver, Modbus, IP
Terminierung für den BS-Bus
Relais 1
Relais 2
i
** Leitungsschutz vorsehen! Gemäß der DIN VDE
0100-430 ist bei der Versorgungsspannung ein
Leitungsschutz vorzusehen.
L1/+
L2
L3/-
RS-485
I1 I2
I3
A B
+
Q1 Q2 M+
+24 V
active adjustable
A
Currentmeter
V
Voltagemeter
Wiring diagram
L1
A1/+
A2/–
L2
L3
N
KE
E
X1
R
R
OFF
Klemme/Terminal
A1/+ A2/- **
Power supply, U
L1/+, L2, L3/-
Connections to the system to be monitored
AC, 0...690 V / AC, 0...600 V für UL applications /
DC, 0...1000 V
KE, E
Connection to ground
I1...I3 (X1)
Configurable digital inputs (e.g. Test, Reset,...)
A, B (X1)
Serial interface RS-485 (BS bus)
+ (X1)
Supply voltage of the inputs and outputs I, Q and M.
Electrical overload protection. Automatic shutdown in the event
of a short circuit and transient (resettable).
If the supply is via an external 24 V source, then A1/+, A2/-
must not be connected.
Q1, Q2 (X1)
Configurable digital output
M+ (X1)
Configurable analogue output (e.g. measuring instrument)
(X1)
Reference potential ground
RJ45 (ETH)
Ethernet connector, webserver, modbus, IP
R
Termination for the BS bus
11, 12, 14
Relay 1
21, 22, 24
Relay 2
i
** Provide line protection! According to DIN VDE
0100-430, a line protection shall be provided for
the supply voltage
isoNAV685-D-B_D00264_03_Q_DEEN / 03.2024
ISOMETER® isoNAV685-D-B
L2
L1/+
ETH
R
11
11
12
ON
Connections
= 24...240V (50...400 Hz)
s
KE
L3/-
E
12
14
21
22
24
14
21
22
24
5
