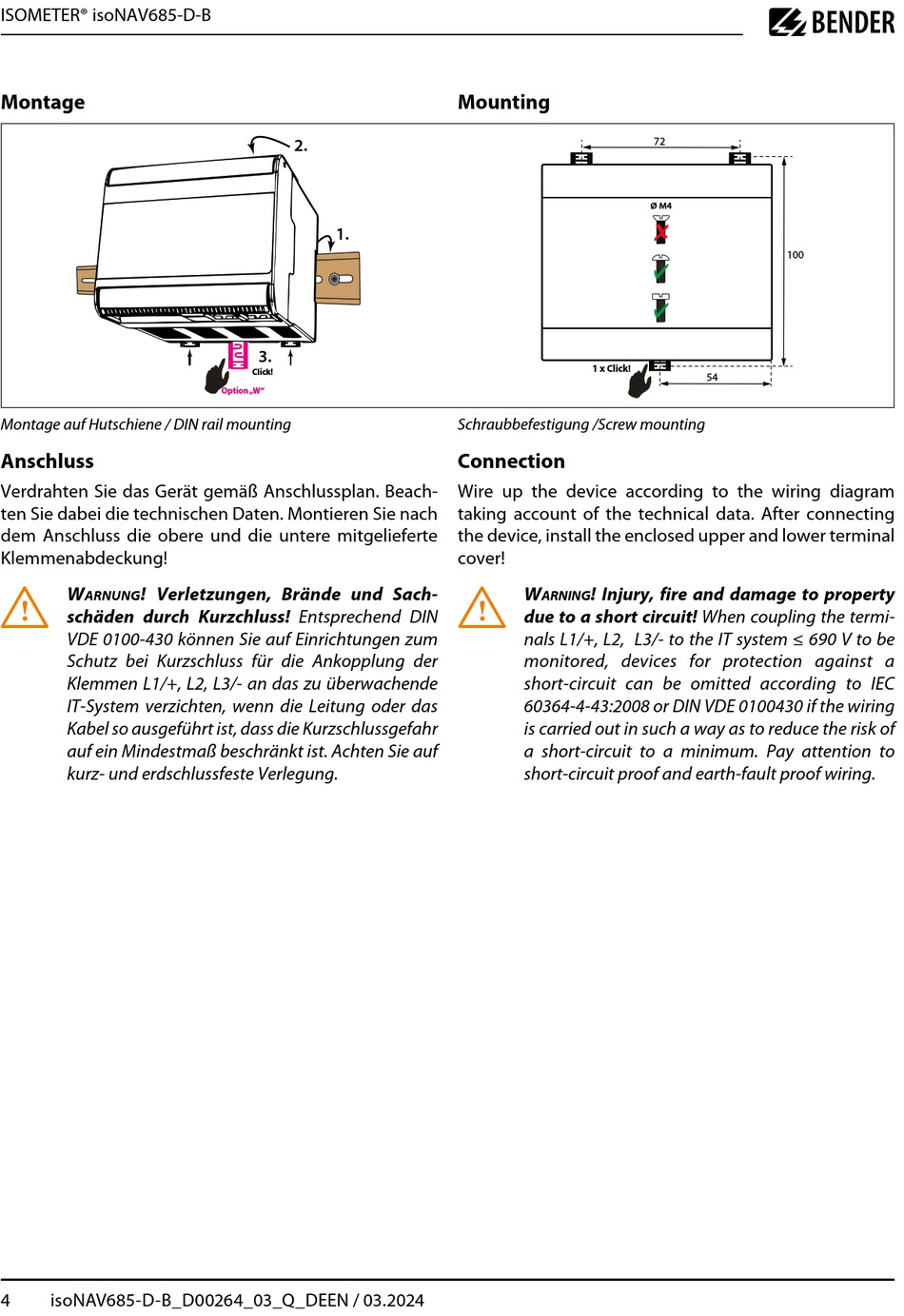

ISOMETER® isoNAV685-D-B
Montage
Montage auf Hutschiene / DIN rail mounting
Anschluss
Verdrahten Sie das Gerät gemäß Anschlussplan. Beach-
ten Sie dabei die technischen Daten. Montieren Sie nach
dem Anschluss die obere und die untere mitgelieferte
Klemmenabdeckung!
I
W
! Verletzungen, Brände und Sach-
arnung
schäden durch Kurzchluss! Entsprechend DIN
VDE 0100-430 können Sie auf Einrichtungen zum
Schutz bei Kurzschluss für die Ankopplung der
Klemmen L1/+, L2, L3/- an das zu überwachende
IT-System verzichten, wenn die Leitung oder das
Kabel so ausgeführt ist, dass die Kurzschlussgefahr
auf ein Mindestmaß beschränkt ist. Achten Sie auf
kurz- und erdschlussfeste Verlegung.
4
isoNAV685-D-B_D00264_03_Q_DEEN / 03.2024
2.
1.
3.
Mounting
Schraubbefestigung /Screw mounting
Connection
Wire up the device according to the wiring diagram
taking account of the technical data. After connecting
the device, install the enclosed upper and lower terminal
cover!
I
W
! Injury, fire and damage to property
arning
due to a short circuit! When coupling the termi-
nals L1/+, L2, L3/- to the IT system ≤ 690 V to be
monitored, devices for protection against a
short-circuit can be omitted according to IEC
60364-4-43:2008 or DIN VDE 0100430 if the wiring
is carried out in such a way as to reduce the risk of
a short-circuit to a minimum. Pay attention to
short-circuit proof and earth-fault proof wiring.
72
Ø M4
100
54
