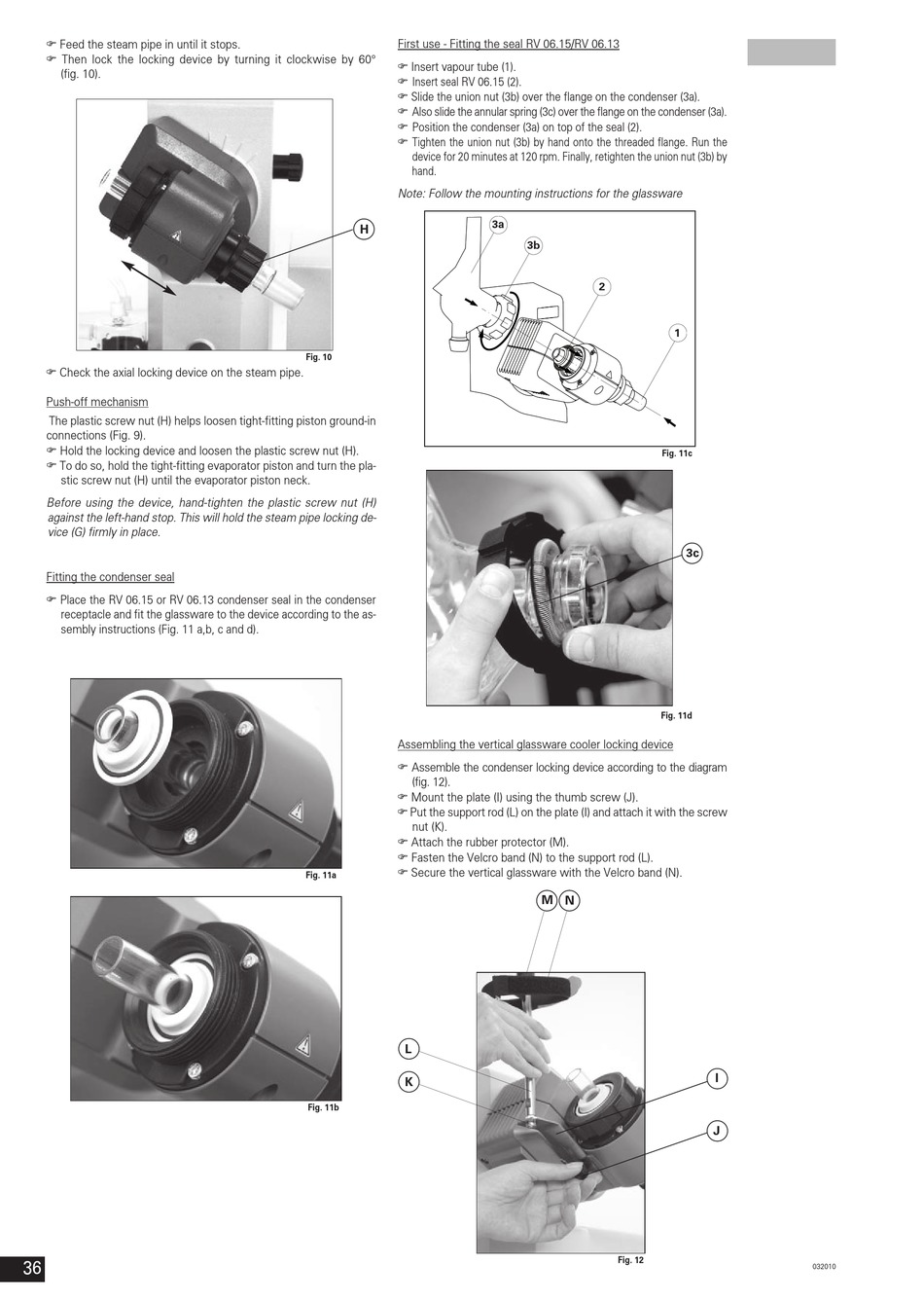

Before using the device, hand-tighten the plastic screw nut (H)
against the left-hand stop. This will hold the steam pipe locking de-
vice (G) firmly in place.

