Hach Polymetron 9610sc SiO2 Installation Seite 19

Install the stir bar
A stir bar is included in the installation kit. Prior to the installation, remove the funnel cover, funnel
and colorimeter cover. Refer to
shown in the illustrated steps. Refer to

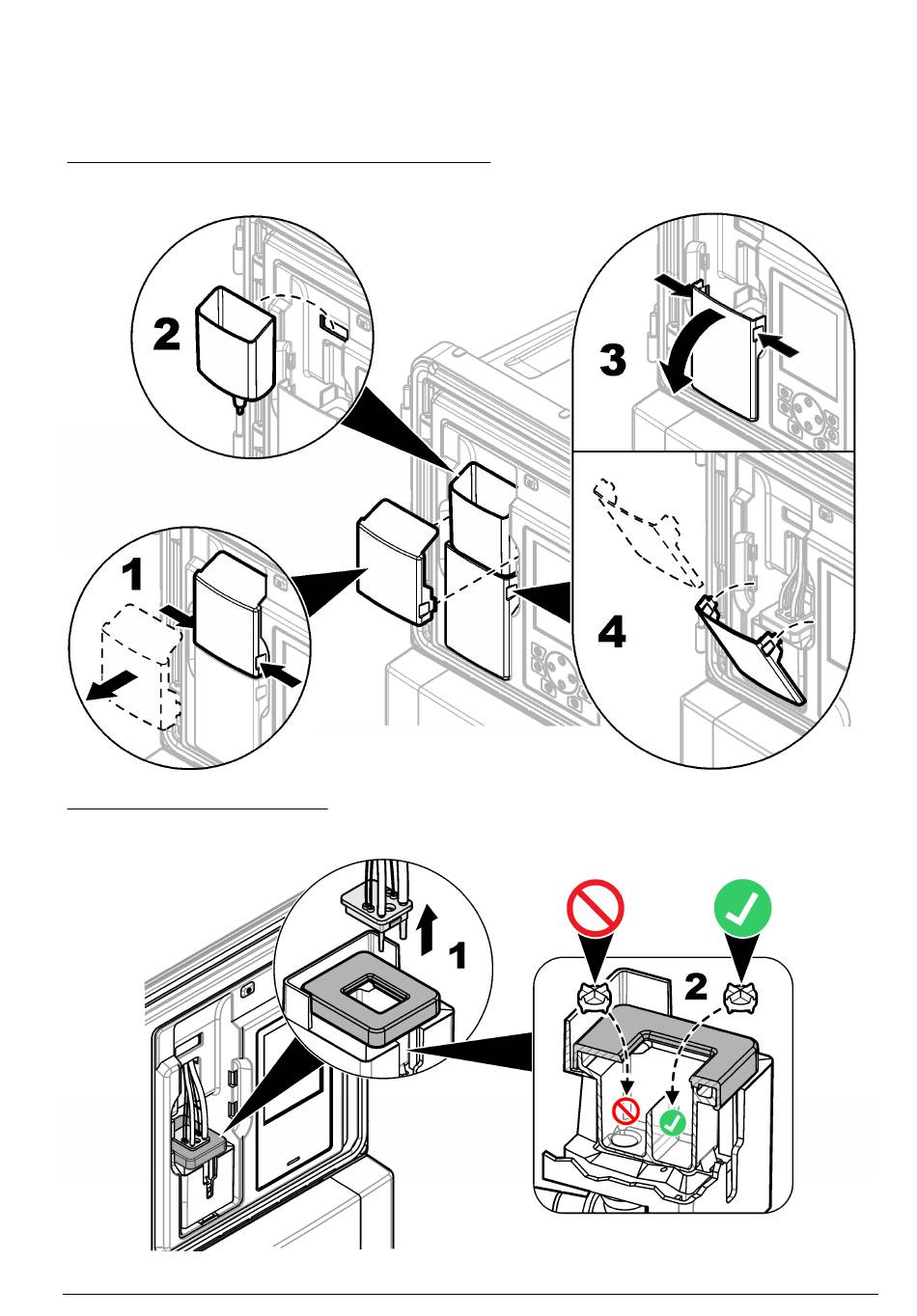

Figure 17 Colorimeter cover and funnel removal
Figure 18 Stir bar installation
Figure 17. Install the stir bar in the sample cell of the colorimeter as
Figure 18.
English 19
