- Wall mounted intallation (vertical)
NOTE
1. Do not put the connecting duct weight on the indoor unit.
2. When connecting duct, use inflammable canvas tie-in to
prevent vibrating.
3. Insulation foam should be wrapped outside the duct to
avoid condensate an internal duct under layer shall be
added to reduce the noise for special requirement.
1.4 Necessary space for the maintenance
Air outlet
> 200 mm
Inlet

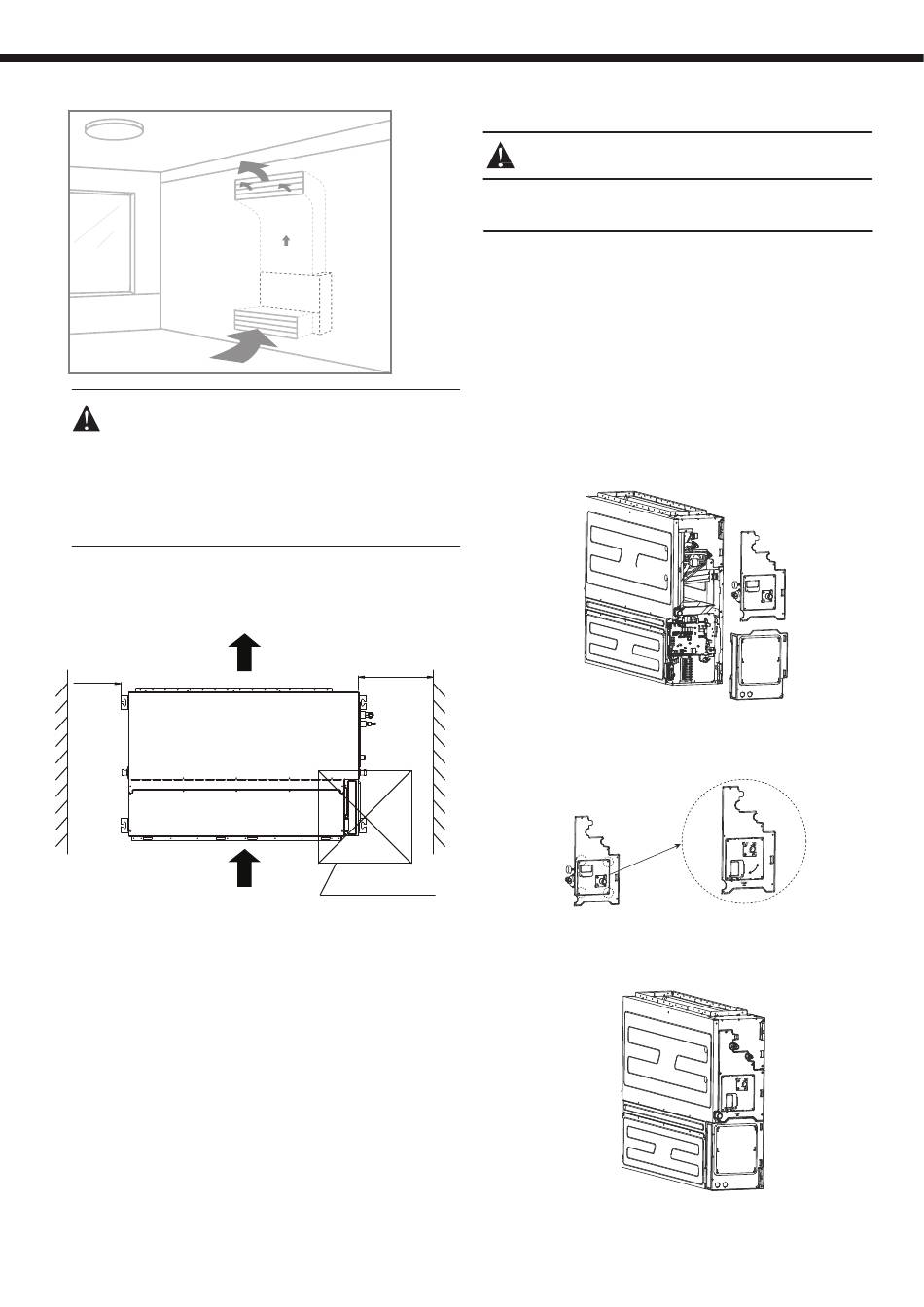

1.5 Indoor unit installation in wall mounted type

The indoor unit can be installed vertically (except models
09 and 12). If you choose to install in this position, you
must take into account that the position of the condensate
pump must be modified. To do this, it is necessary to
access the condensate pump in the following way:
1. Remove the cover of the electrical box, access the
electronic board to disconnect the condensate pump
condensate float connectors.
2. Remove the condensate pump assembly.
> 300 mm
3. Remove the 4 screws, rotate the condensate
pump 90º and secure it again to the support plate.
Service hole
(800 mm x 800 mm)
4. Reinstall the condensate pump in the unit and
its connectors to the electronic board.
85

IMPORTANT NOTICE

In the case of vertical installation, it is necessary to
modify the position of the condensate pump.
