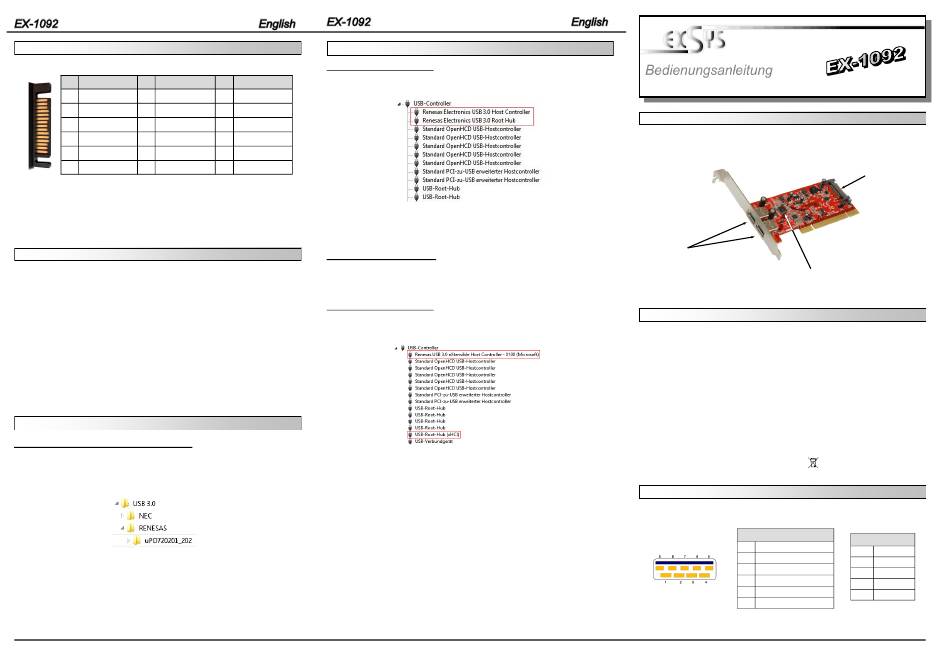

CONNECTORS
JP2:
Pin Assignment Pin Assignment
1 3.3 Volt (Orange) 7 5 Volt (pre-charge)
2 3.3 Volt (Orange) 8 5 Volt (Red)
3 3.3 Volt (pre-charge) 9 5 Volt (Red)
4 Ground (Black) 10 Ground (Black)
5 Ground (Black) 11 Reserve
6 Ground (Black) 12 Ground (Black)
For using the EX-1092 you must connect the card with the PC power supply. It must be
connected on the power connector JP2!
Please make sure you connect the plug in the right direction!
Attention! Never connect or release the plug while the PC is supplied with power!
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences
between PC's, we can give you only a general installation guide for the EX-1092. Please
refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Comput-
er and gently slide the cover off.
3. Locate an available PCI expansion slot and insert the card. Make sure that the card is
plugged in correctly.
4. Now install the power supply via the SATA 15 pin connector. (see at Connectors JP2)
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003 & 2008
After starting, Windows is recognizes a new "USB (Universal Serial Bus)-Controller".
Start the „SETUP" file which is in the "uPD720201_202" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating
system. After the installation the operating system detects the card and automatically
install them.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER:
Open the >Device manager<. Now you should see at „USB-Controller" the following new
Pin Assignment
entry's:
13 12 Volt (pre-charge)
14 12 Volt (Yellow)
15 12 Volt (Yellow)
If you see this or a similar information the device is installed correctly.
Windows 8 & Server 2012
After the hardware installation, the operating system will recognize the device automati-
cally and install the drivers.
CHECK INSTALLED DRIVER:
Open the >Device manager<. Now you should see at „USB-Controller" the following new
entry's:
If you see this or a similar information the device is installed correctly.
Bedienungsanleitung
Vers. 1.1 / 31.01.13
AUFBAU
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1092 ist eine USB 3.0 PCI Karte. Die Karte ist mit 2 externen Ports ausgestattet,
die jeweils 900mA Strom zu Verfügung stellen. Sie unterstützt den 32-Bit PCI & PCI-X
Bus mit 5 Volt und 3,3 Volt. Der serielle PCI Bus unterstützt optimal die Leistung des
schnellen Renesas Chipsatz. Die EX-1092 gewährleistet so eine sichere Datenübertra-
gung und exzellente Performance von bis zu 5Gbit pro Sekunde! Es ist nicht möglich die
I/O Adressen und Interrupts manuell einzustellen, da die Einstellungen der Karte vom
System (BIOS) und beim installieren des Betriebssystems automatisch vorgenommen
werden. Sie unterstützt alle USB Anschlüsse von 1.1 bis 3.0. Die EX-1092 benötigt
zusätzlichen Strom vom PC-Netzteil, um die volle Leistung von 900mA an beiden
externen Ports zu gewährleisten.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
J1-J2:
6
J1 & J2:
2 x externe
USB 3.0 A-Buchse
Renesas Chipset
PCI 32-Bit oder PCI-X, 33Mhz
Windows XP/ Vista/ 7/ 8/ Server 2003 & 2008 & 2012
2x USB 3.0 A-Buchse extern, 1x SATA 15 pin Stecker
EX-1092, Treiber CD, Anleitung, Low Profile Bügel
CE / FCC / RoHS / WEEE DE97424562 / WHQL
USB 3.0 Pin's
Pin Signal
5 SSTX+
6 SSTX-
7 GND
8 SSRX+
9 SSRX-
1
JP2:
SATA 15 pin
Power Anschluss
vom PC-Netzteil
USB 2.0 Pin's
Pin Signal
1 VCC
2 DATA-
3 DATA+
4 GND
