COMPACT 1.4
10

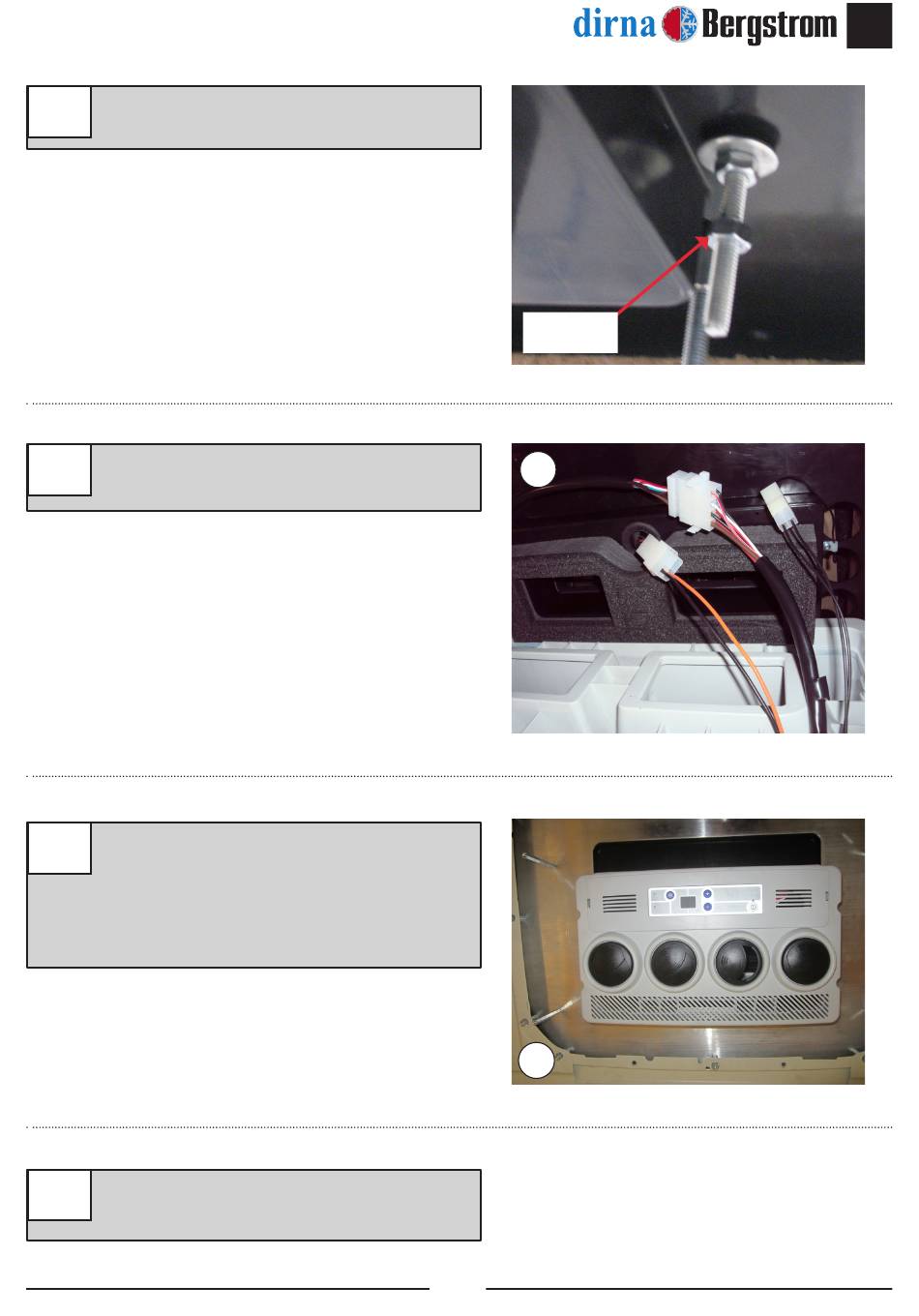

Place (1) M6 nut loosely on each stud.
11
Connect the front to the equipment as indicated
in the photograph.
12
Place the inner air distribution panel on the
the previous studs with (1) wide brimmed M6
washer and (1) M6 nut on each stud. Tighten
nuts until channelling duct of the inner panel
meets with the upper foam of the equipment.
13
Tighten nut from point 10 until it meets with the
top part of the inner air distribution panel.
M6 Nut
11
12
17
