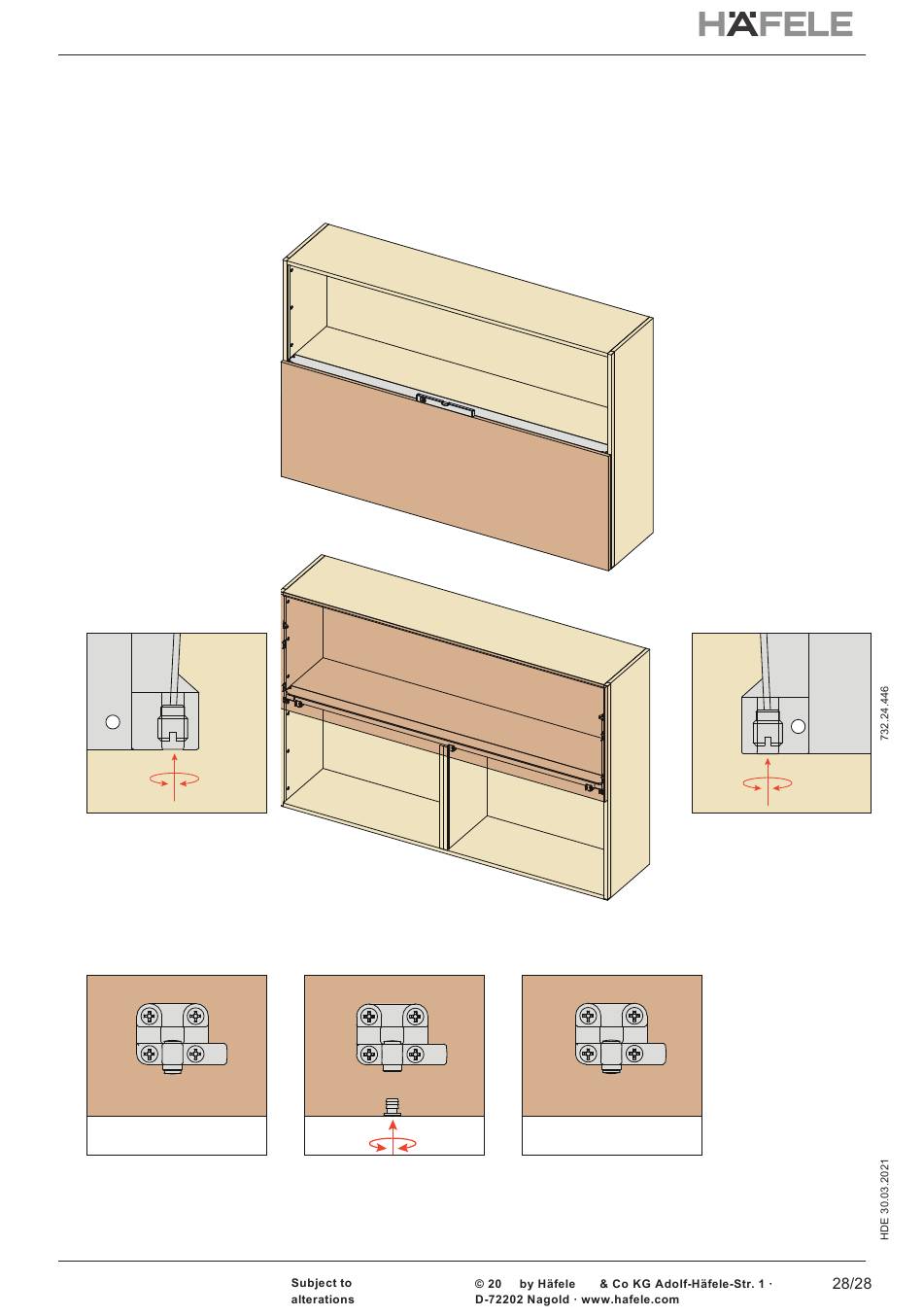

Vertical alignment of the door with the cabinet.
If the edge of the door is not parallel with the side of the cabinet, there is a difference in the length of the right and left
support cables. This can be corrected using the adjusters in the door hanging brackets, within a range of +/- 2mm.
± 2 mm
± 2 mm
± 3 mm
Door height adjustment.
Remove the door buffers from their brackets inside the door in order to access the height adjusters. Using a 4mm allen key,
adjust the vertical position of the door, replacing the buffers when adjustment is completed.
