Inserting the Module
1.
Switch off power supply
2.
Open the device (loosen the 4 screws at the front)
3.
Place module in slot (D-SUB connector)
4.
Tighten fastening screws of the module
5.
Connect sensor cable
6.
Close device, tighten screws at the front
7.
Switch on power supply
8.
Set parameters
NOTICE!
Be sure to select the sensor type you are using in the
parameter setting menu!
CONDI 3400(X)-051

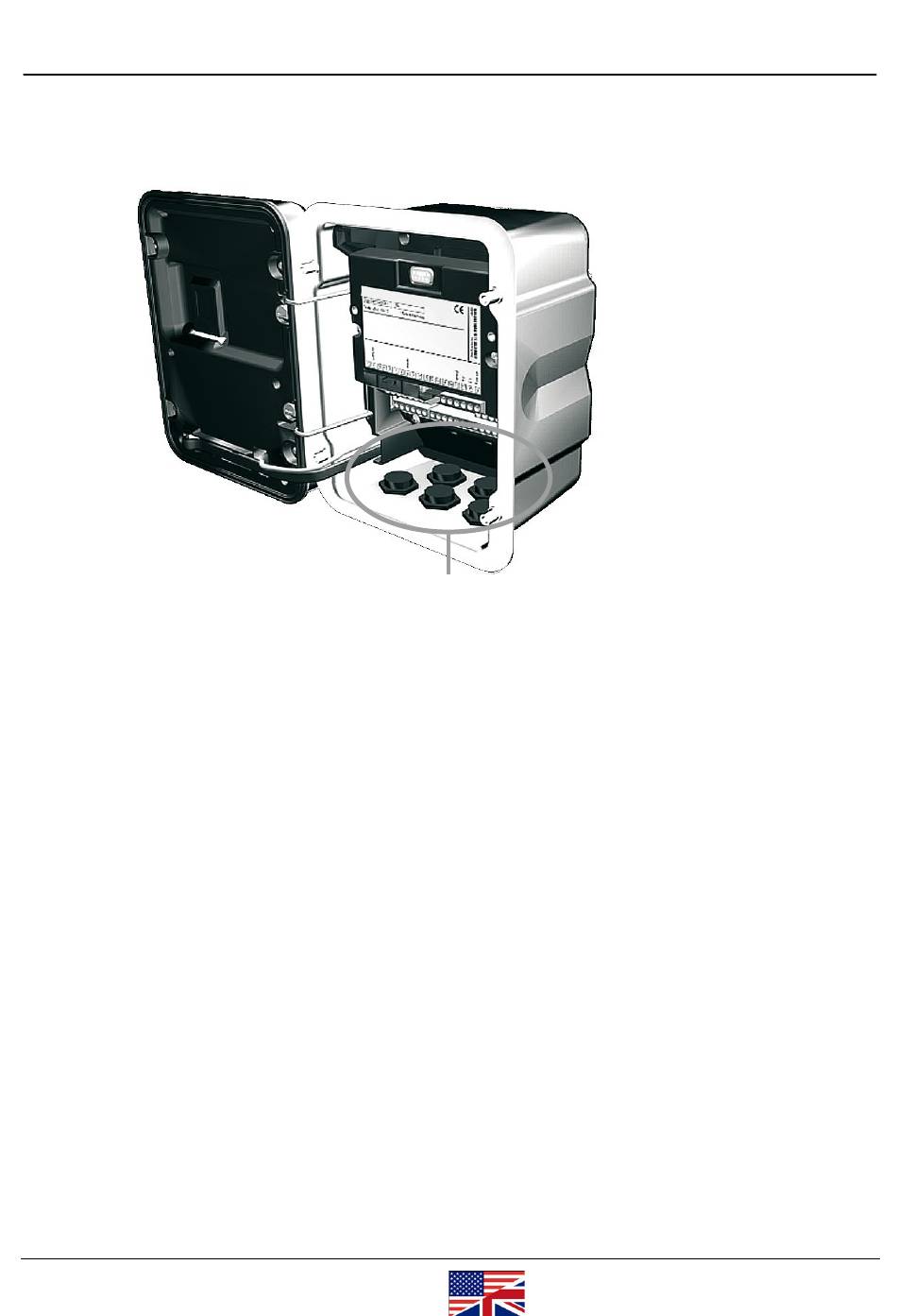

Make sure that the cable glands
are tightly closed to protect
against humidity.
