Aquaglide Monsoon System
To supply one or more Tricklers using an Aquaglide Monsoon system, an optional Inline
Monsoon Tee with Filter (#585522186, available from your Aquaglide distributor) is
required. The Inline Monsoon Tee can be inserted into any Banjo hose connection in the
Monsoon System (i.e. at a central Tee, or at a Universal Monsoon connection). If installing
a single Trickler supplied by an existing Monsoon System, the Inline Tee should be the only
optional part required. See C below.

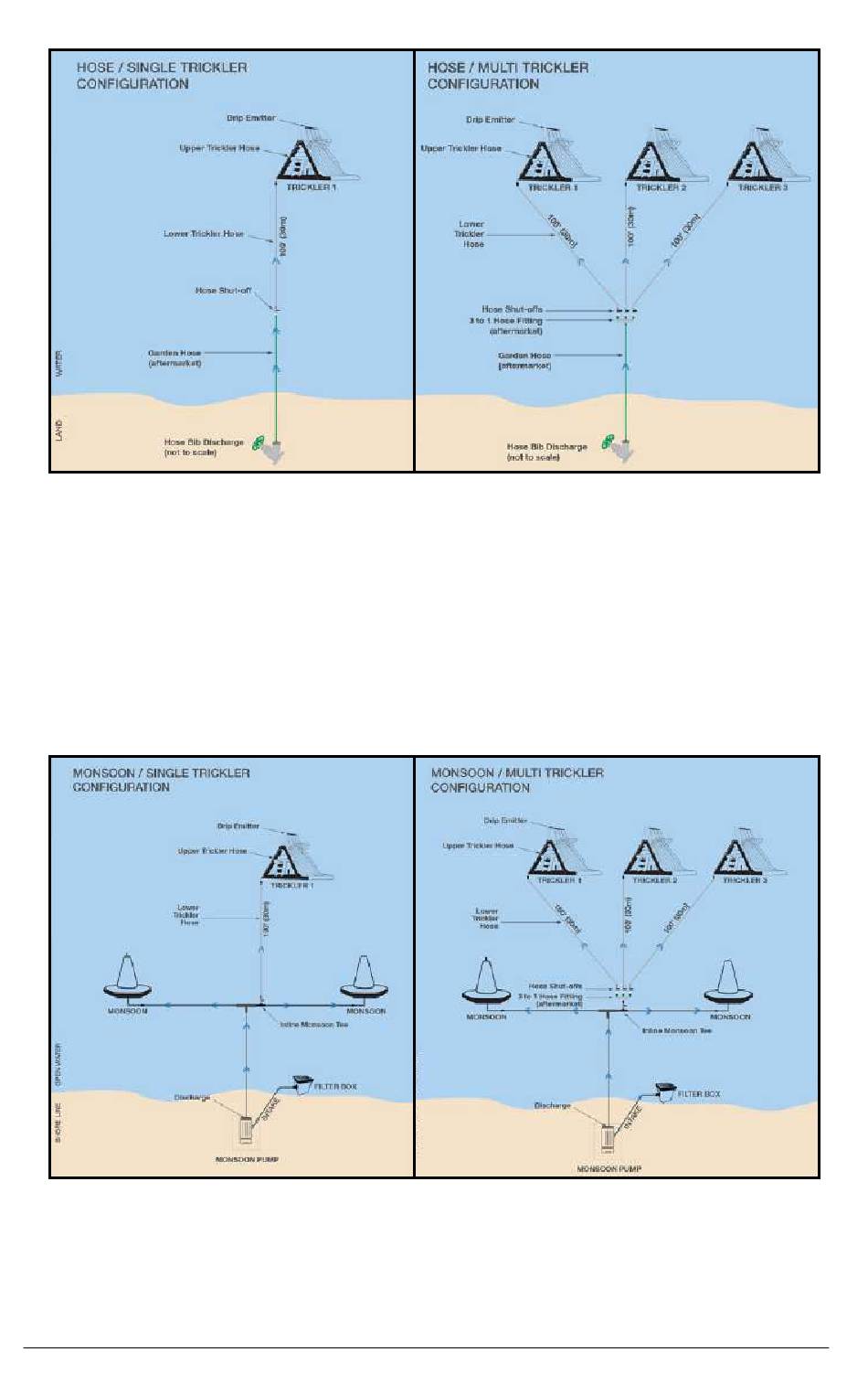

Depending on variables (hose length, water depth, available pressure, etc.) a single
Inline Monsoon Tee connection can normally be branched to feed up to 4 Tricklers using
plumbing/ hose fittings typically found where garden supplies are sold. These fittings, and
additional Trickler kits are not included. See D below.
C

Installation Steps:

1. The drip emitter is a gray PVC pipe with small drip holes. The drip emitter slides into a PVC
pocket with matching holes. This is called the emitter pocket. It is necessary to fasten the drip
emitter securely to the emitter pocket using plastic zip ties, included. Gather the zip ties and
prepare to insert drip emitter into emitter pocket. The process will take several minutes and is best
done on a flat workspace with 2 people. See E below to understand the emitter pocket.
