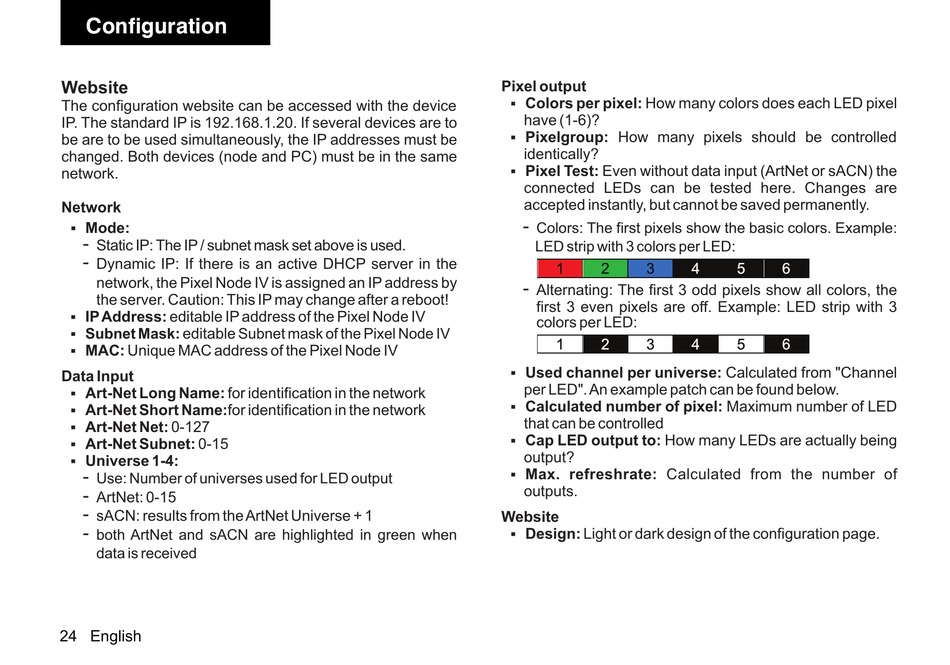

Configuration
Website
The configuration website can be accessed with the device
IP. The standard IP is 192.168.1.20. If several devices are to
be are to be used simultaneously, the IP addresses must be
changed. Both devices (node and PC) must be in the same
network.
Network
Mode:
§
-
Static IP: The IP / subnet mask set above is used.
-
Dynamic IP: If there is an active DHCP server in the
network, the Pixel Node IV is assigned an IP address by
the server. Caution: This IP may change after a reboot!
IP Address: editable IP address of the Pixel Node IV
§
Subnet Mask: editable Subnet mask of the Pixel Node IV
§
MAC: Unique MAC address of the Pixel Node IV
§
Data Input
Art-Net Long Name: for identification in the network
§
Art-Net Short Name:for identification in the network
§
Art-Net Net: 0-127
§
Art-Net Subnet: 0-15
§
Universe 1-4:
§
-
Use: Number of universes used for LED output
-
ArtNet: 0-15
-
sACN: results from the ArtNet Universe + 1
-
both ArtNet and sACN are highlighted in green when
data is received
24 English
Pixel output
Colors per pixel: How many colors does each LED pixel
§
have (1-6)?
Pixelgroup: How many pixels should be controlled
§
identically?
Pixel Test: Even without data input (ArtNet or sACN) the
§
connected LEDs can be tested here. Changes are
accepted instantly, but cannot be saved permanently.
-
Colors: The first pixels show the basic colors. Example:
LED strip with 3 colors per LED:
-
Alternating: The first 3 odd pixels show all colors, the
first 3 even pixels are off. Example: LED strip with 3
colors per LED:
Used channel per universe: Calculated from "Channel
§
per LED". An example patch can be found below.
Calculated number of pixel: Maximum number of LED
§
that can be controlled
Cap LED output to: How many LEDs are actually being
§
output?
Max. refreshrate: Calculated from the number of
§
outputs.
Website
Design: Light or dark design of the configuration page.
§
