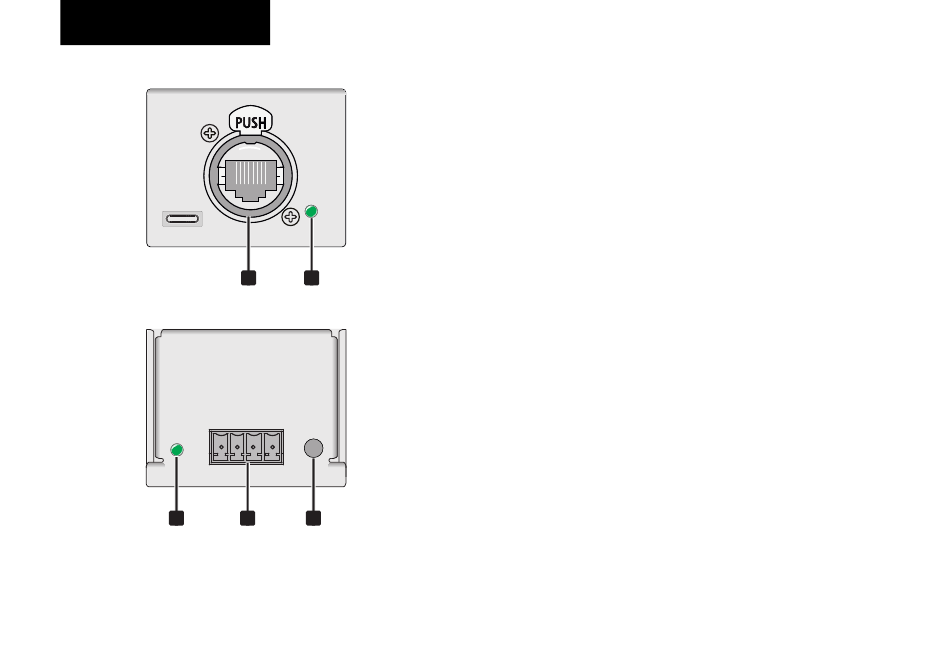

Device overview
1
3 4
1 Ethernet connection
10Base-T Ethercon connection (RJ45)
2 Ethernet indicator
- Off: no connection
- Lights up green: Ethernet connection established
- Flashing orange: Transmission activity
3 Status indicator
- Lights up green: device ready for use
- Flashing green: data output
- Lights up red: error
2
4 Connection terminals for the LEDs
Terminals for the digital LEDs and power supply.
Assignment from left to right:
- GND: negative pole or GND
- DATA: DI - / LED data pin
- CLOCK: CLK- / LED clock pin
- 5-12V IN: VCC -/ power (5-12V DC)
5 Rest button
Press for 5 seconds to reset to factorysettings:
- Static IP: 192.168.1.20,
- Subnet: 255.255.255.0
- Art-Net net: 0, subnet : 0
5
- 4 universes enabled: 1, 2, 3, 4
- 3 colors per pixel
- Pixel group: 1
