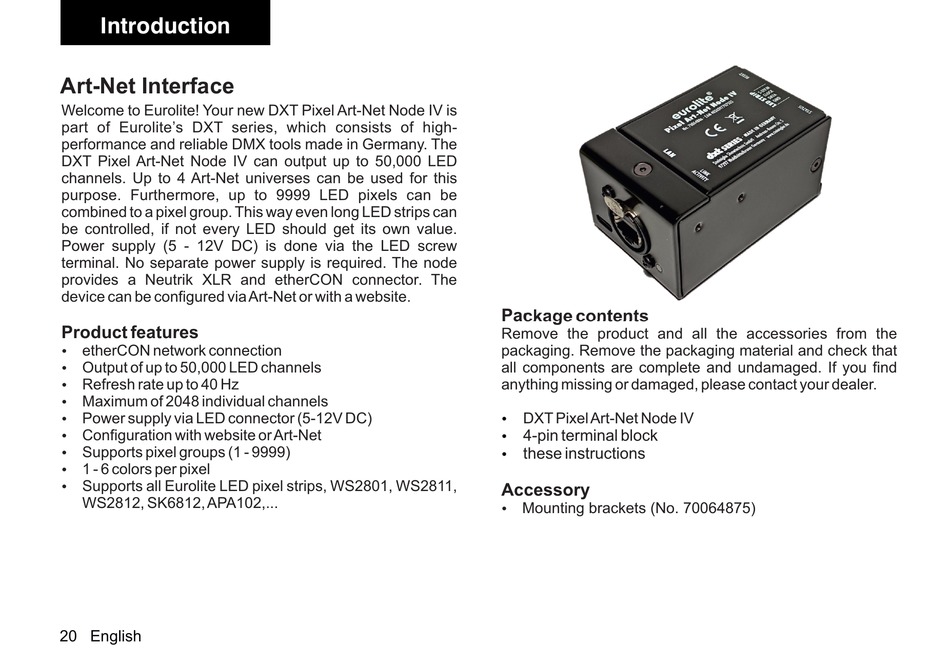

Introduction
Art-Net Interface
Welcome to Eurolite! Your new DXT Pixel Art-Net Node IV is
part of Eurolite's DXT series, which consists of high-
performance and reliable DMX tools made in Germany. The
DXT Pixel Art-Net Node IV can output up to 50,000 LED
channels. Up to 4 Art-Net universes can be used for this
purpose. Furthermore, up to 9999 LED pixels can be
combined to a pixel group. This way even long LED strips can
be controlled, if not every LED should get its own value.
Power supply (5 - 12V DC) is done via the LED screw
terminal. No separate power supply is required. The node
provides a Neutrik XLR and etherCON connector. The
device can be configured via Art-Net or with a website.
Product features
etherCON network connection
Ÿ
Output of up to 50,000 LED channels
Ÿ
Refresh rate up to 40 Hz
Ÿ
Maximum of 2048 individual channels
Ÿ
Power supply via LED connector (5-12V DC)
Ÿ
Configuration with website or Art-Net
Ÿ
Supports pixel groups (1 - 9999)
Ÿ
1 - 6 colors per pixel
Ÿ
Supports all Eurolite LED pixel strips, WS2801, WS2811,
Ÿ
WS2812, SK6812, APA102,...
20 English
Package contents
Remove the product and all the accessories from the
packaging. Remove the packaging material and check that
all components are complete and undamaged. If you find
anything missing or damaged, please contact your dealer.
DXT Pixel Art-Net Node IV
Ÿ
4-pin terminal block
Ÿ
these instructions
Ÿ
Accessory
Mounting brackets (No. 70064875)
Ÿ
