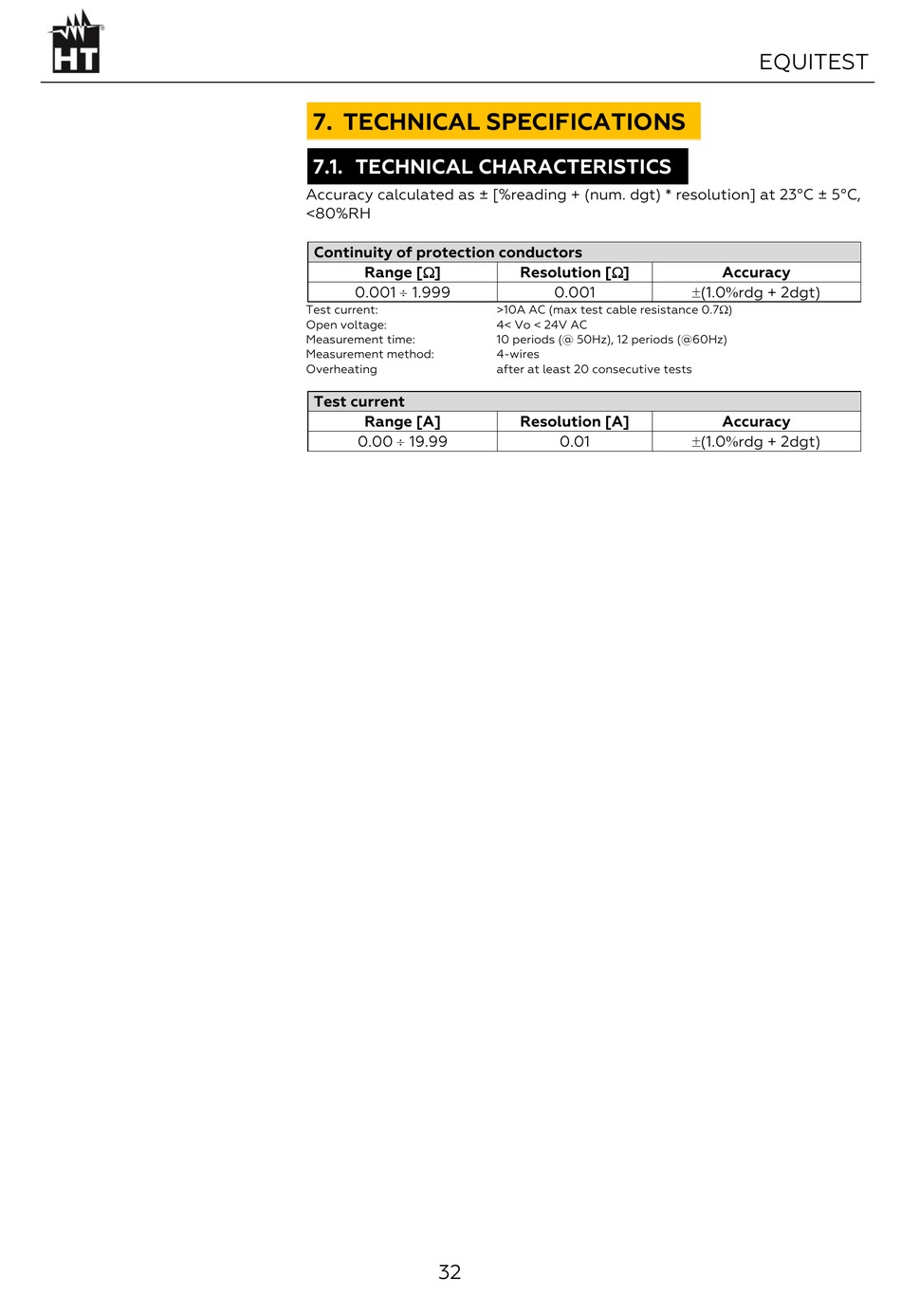

7. TECHNICAL SPECIFICATIONS

7.1. TECHNICAL CHARACTERISTICS

Accuracy calculated as ± [%reading + (num. dgt) * resolution] at 23°C ± 5°C,
<80%RH
Continuity of protection conductors
Range []
0.001  1.999
Test current:
Open voltage:
Measurement time:
Measurement method:
Overheating
Test current
Range [A]
0.00  19.99
32
Resolution []
0.001
>10A AC (max test cable resistance 0.7)
4< Vo < 24V AC
10 periods (@ 50Hz), 12 periods (@60Hz)
4-wires
after at least 20 consecutive tests
Resolution [A]
0.01
EQUITEST
Accuracy
(1.0rdg + 2dgt)
Accuracy
(1.0rdg + 2dgt)
