INSTALLATION

Maintenance

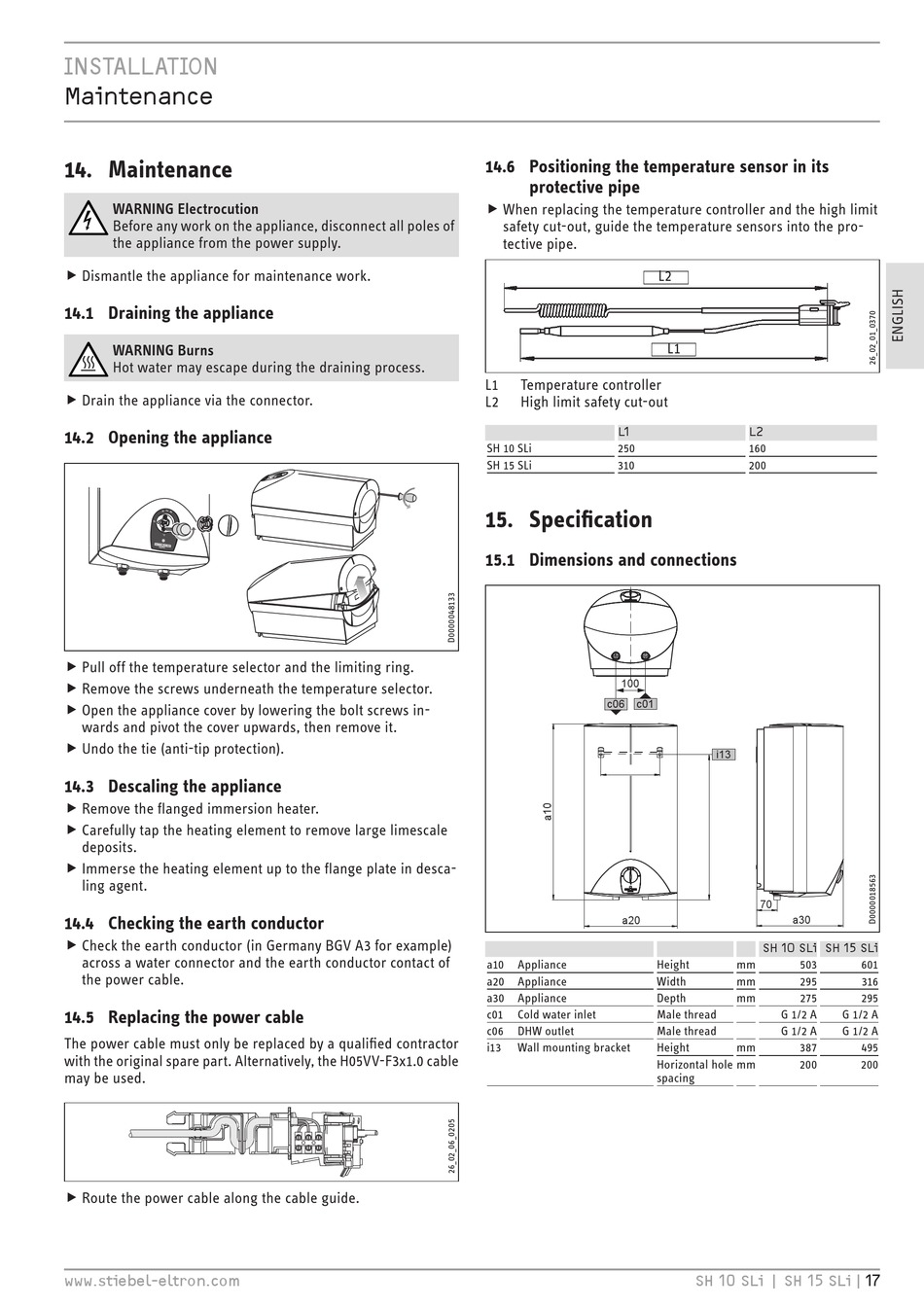

14. Maintenance
WARNING Electrocution
Before any work on the appliance, disconnect all poles of
the appliance from the power supply.
f Dismantle the appliance for maintenance work. f

14.1 Draining the appliance

WARNING Burns
Hot water may escape during the draining process.
f Drain the appliance via the connector. f

14.2 Opening the appliance

f Pull off the temperature selector and the limiting ring. f
f Remove the screws underneath the temperature selector. f
f Open the appliance cover by lowering the bolt screws in- f
wards and pivot the cover upwards, then remove it.
f Undo the tie (anti-tip protection). f

14.3 Descaling the appliance

f Remove the flanged immersion heater. f
f Carefully tap the heating element to remove large limescale f
deposits.
f Immerse the heating element up to the flange plate in desca- f
ling agent.

14.4 Checking the earth conductor

f Check the earth conductor (in Germany BGV A3 for example) f
across a water connector and the earth conductor contact of
the power cable.

14.5 Replacing the power cable

The power cable must only be replaced by a qualified contractor
with the original spare part. Alternatively, the H05VV-F3x1.0 cable
may be used.
f Route the power cable along the cable guide. f
www.stiebel-eltron.com
14.6 Positioning the temperature sensor in its
protective pipe
f When replacing the temperature controller and the high limit f
safety cut-out, guide the temperature sensors into the pro-
tective pipe.
L2
L1 Temperature controller
L2 High limit safety cut-out
L1
SH 10 SLi 250
SH 15 SLi 310

15. Specification

15.1 Dimensions and connections

100
c06 c01
a20
a10 Appliance Height
a20 Appliance Width
a30 Appliance Depth
c01 Cold water inlet Male thread
c06 DHW outlet Male thread
i13 Wall mounting bracket Height
Horizontal hole
spacing
L1
L2
160
200
i13
70
a30
SH 10 SLi SH 15 SLi
mm 503
mm 295
mm 275
G 1/2 A
G 1/2 A
mm 387
mm 200
SH 10 SLi | SH 15 SLi |
601
316
295
G 1/2 A
G 1/2 A
495
200
