COMPACT 1.4

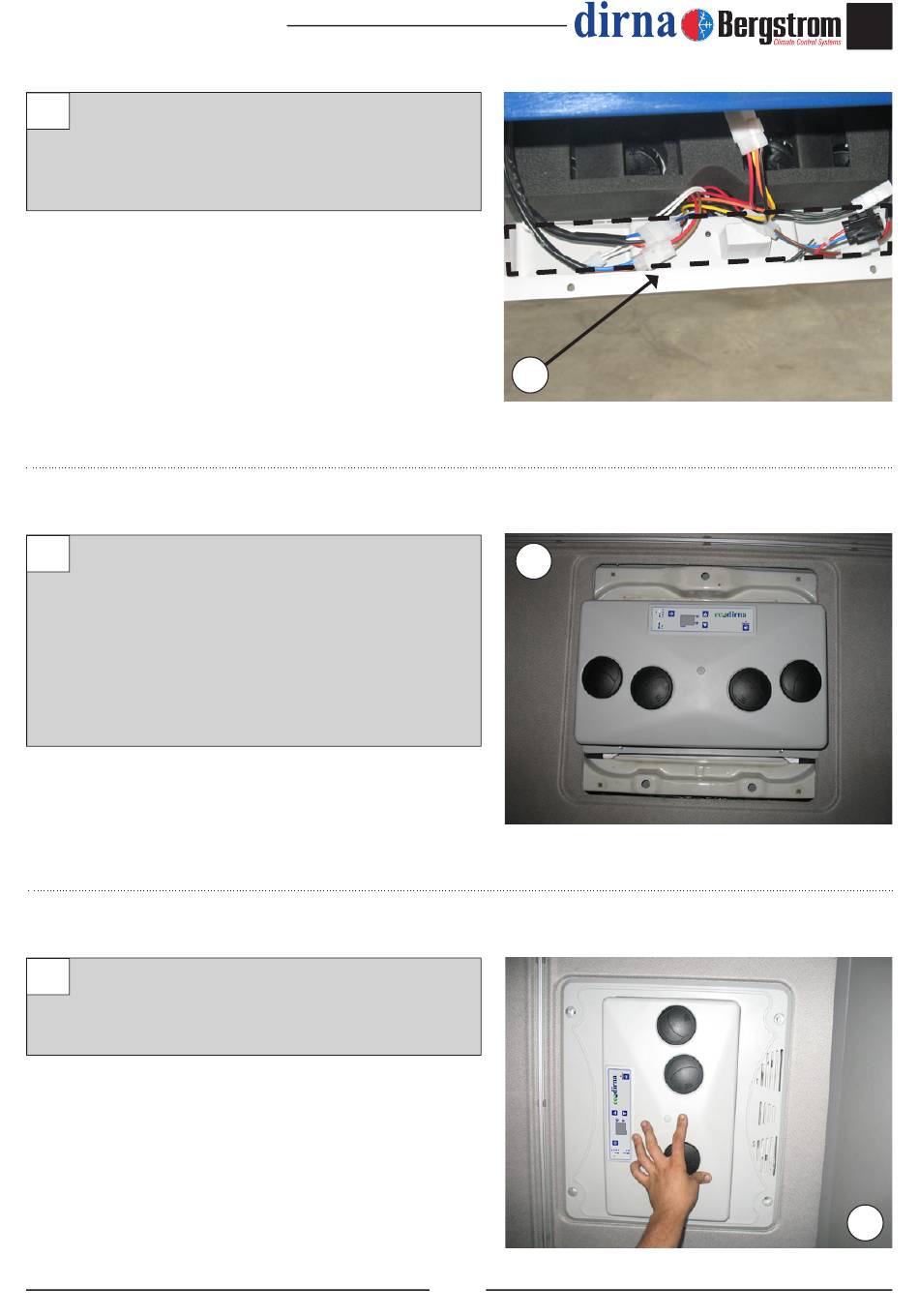

8 Introduce the cabling in the gap (H) in the interior
air distribution panel in order not to interfere in
the adjustment of the ducts with the base of the
unit.
9
Place the interior air distribution panel on the
fastening mounts with (4) 6 mm flat washers,
securing with (4) M6 self-locking nuts, and screw
without tightening.
Important: The channelling equipment should
come to a stop against the foam rubber in
order to prevent leakages of air.
10 Place the console using original screws and align
in the Compact in the most ideal position, until
the original screws coincide in their location.
All manuals and user guides at all-guides.com
19
Air conditioning for vehicles
H
9
ES
EN
10
