WI-FI TACHOMETER FOR HOSE LAY-DOWN
MAIN COMPONENTS OF THE WI-FI TACHOMETER
Portable device with integrated radio module
4 digits display
Keyboard with 3 keys and 2 leds
Removable wi-fi antenna
2 AA 1.5 V batteries
OPERATION SWITCH ON
Press the ON key to switch equipment on
The LCD displays the firmware version , ex. "F1.01" for 5 seconds
Battery voltage ex. 2.9V

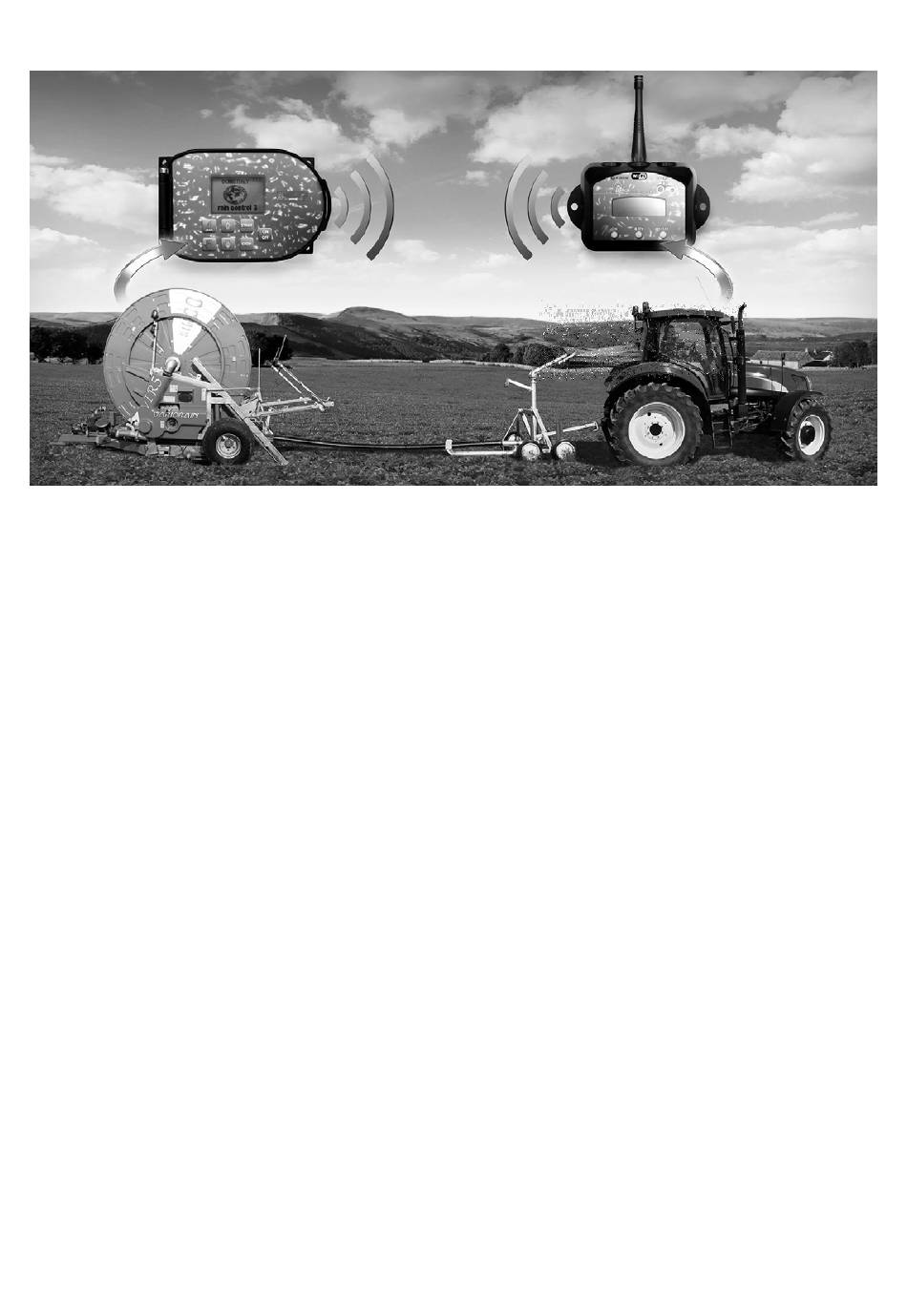

COMMUNICATING WITH RAIN CONTROL 4 COMPUTER
The communication with the Rain Control 4 computer is done through the Radio Modem module and is activated only with
the computer in STOP status, i.e. with machine ready for hose unwinding. The monitor displays the information on the un-
wound meters that the computer sends to the tachometer every second.
The
alarm LED lights up to indicate the proximity of the hose end when there are less than 25 meters of hose still on the reel.
The Wi-Fi tachometr has a range of 1000 meters in the cabin of the tractor and about 1200 outside.
It can work in combination with any RAIN Control 4 computer in WI-Fi version with no need of any identification code. It is
therefore recommended not to use the device when there are two irrigation machines with RC4 Wi-Fi in "stop" status within the
communication range or 1000 meters in order to avoid conflict .
COMMUNICATION ERRORS
In case of faults in the communication between the tachometr and the RAIN Control 4 computer the alarm led starts flashing and
the following errors are displayed on the screen :
1.
" E TO" the tachometer is not receiving any information. It occurs when the communication distance is too big and when
the computer is off or in "stop" status
2.
"E rc"
3.
"E cr"
4.
"E In"
2-3-4 errors occur when the information provided are not correct and the tachometer can not encode them properly, in this case
you have to report this anomaly to the manufacturer.
Press the "RESET" key to delete the errors.
EN
45
