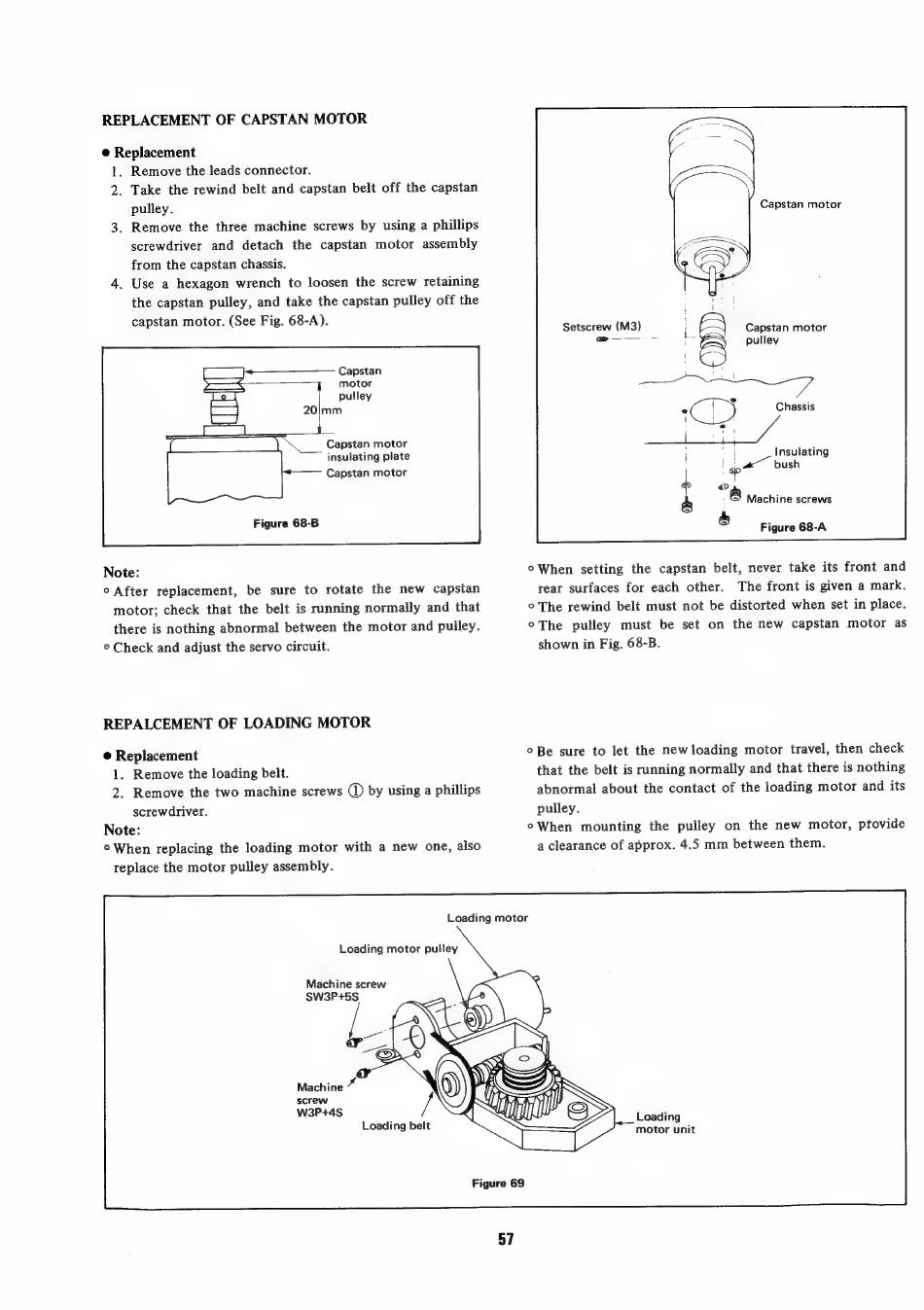

REPLACEMENT OF CAPSTAN MOTOR
@ Replacement
1. Remove the leads connector.
Capstan
— motor
pulley
20|mm
Capstan motor
insulating plate
Capstan motor
Figure 68-B
Note:
© Check and adjust the servo circuit.
REPALCEMENT OF LOADING MOTOR
@ Replacement
1. Remove the loading belt.
2. Remove the two machine screws ( by using a phillips
screwdriver.
Note:
© When replacing the loading motor with a new one, also
replace the motor pulley assembly.
Capstan motor
Capstan motor
pulley
Chassis
| Insulating
a bush
@ &
i Machine screws
Figure 68-A
Loading motor
Loading motor pulley
Machine screw
SW3P+5S
Machine
screw
W3P+4S
Figure 69
Loading
motor unit
