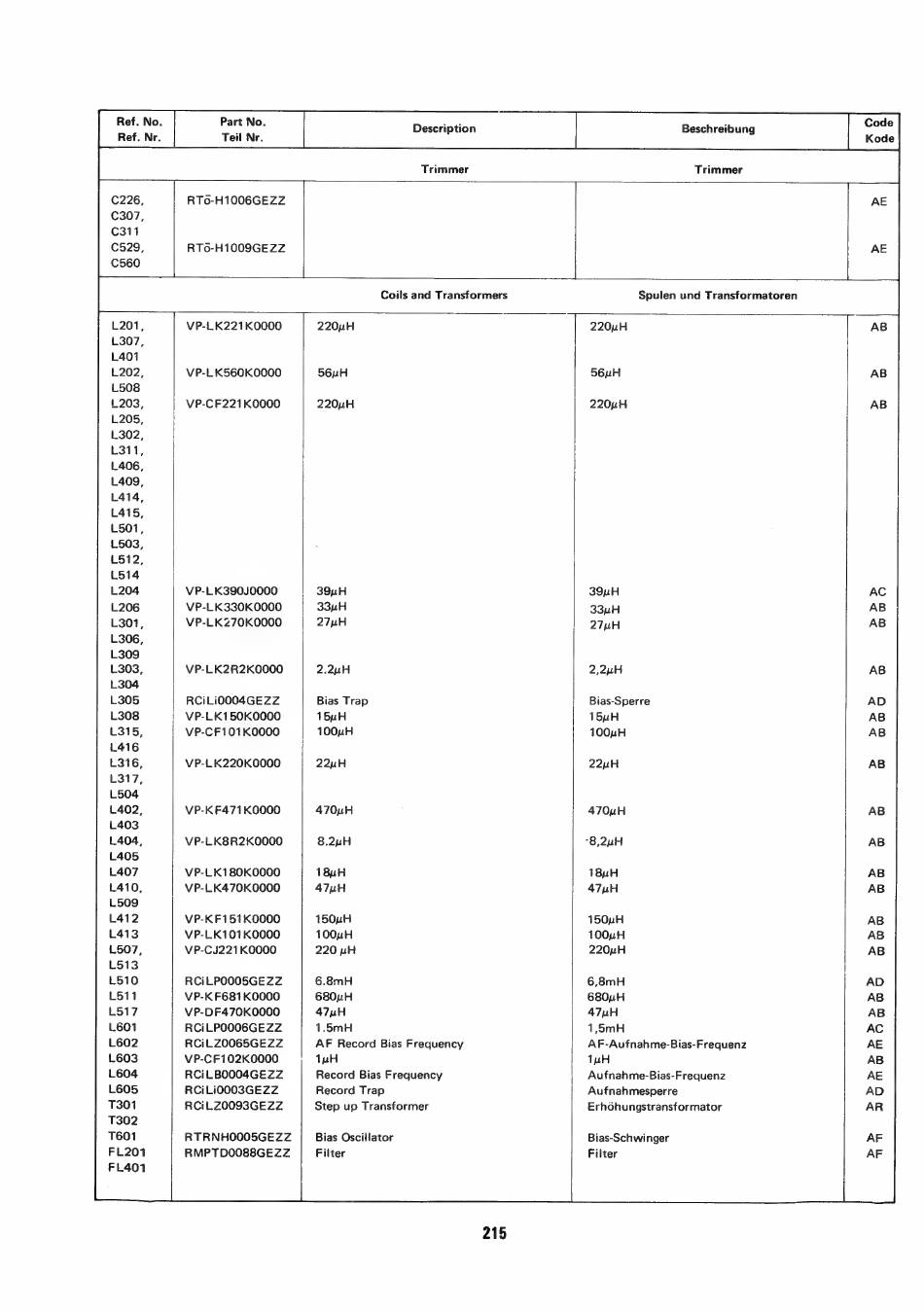

Sharp VC-2300G Serviceanleitung Seite 189

Ref. Nr. Teil Nr. Kode
Trimmer Trimmer
C226, RTo-H1006GEZZ AE
C307,
C311
C529, RT0o-H1009GEZZ AE
C560
Coils and Transformers Spulen und Transformatoren
L201, VP-LK221K0000 | 220uH 220uH oi AB
L307,
L401
L202, VP-LK560K0000 56uH 56uH AB
L508
1203, VP-CF221K0000 220uH 220uH AB
L205,
L302,
L311,
L406,
L409,
L414,
L415,
L501,
L503,
L512,
L514
L204 VP-LK390J0000 39H 39uH AC
L206 VP-LK330K0000 33H 33uH AB
L301, VP-LKZ270K0000 27H 27uH AB
L306,
L309
L303, VP-LK2R2K0000 2.2uH 2,2uH AB
L304
L305 RCiLiOO0D4GEZZ Bias Trap Bias-Sperre AD
L308 VP-LK150K0000 15H 15uH AB
L315, VP-CF101K0000 100uH 100uH AB
L416
L316, VP-LK220K0000 22uH 22uH AB
L317,
L504
L402, VP-KF471K0000 470uH 470uH AB
L403
L404, VP-LK8R2K0000 8.2uH -8,2uH AB
L405
L407 VP-LK180K0000 18uH 18H AB
L410, VP-LK470K0000 47H 47uH AB
L509
L412 VP-KF151K0000 150uH 150yH AB
L413 VP-LK101K0000 100uH 100uH AB
L507, VP-CJ221K0000 220 wH 220uH AB
L513
L510 RCiLPOOO5GEZZ 6.8mH 6,8mH AD
L511 VP-K F681 KO0000 680uH 680uH AB
L517 VP-DF470K0000 47H 47uH AB
L601 RCiLPOOO6GEZZ 1.5mH 1,5mH AC
L602 RCiLZO065GEZZ AF Record Bias Frequency AF-Aufnahme-Bias-Frequenz AE
L603 VP-CF102K0000 1H 1uH AB
L604 RCiLBOOO4GEZZ Record Bias Frequency Aufnahme-Bias-Frequenz AE
L605 RCiLiIOOO3GEZZ Record Trap Aufnahmesperre AD
T301 RCiLZO093GEZZ Step up Transformer Erhohungstransformator AR
T302
T601 RTRNHOOO5GE2ZZ Bias Oscillator Bias-Schwinger AF
FL201 RMPTDOO088GEZZ Filter Filter AF
FL401
