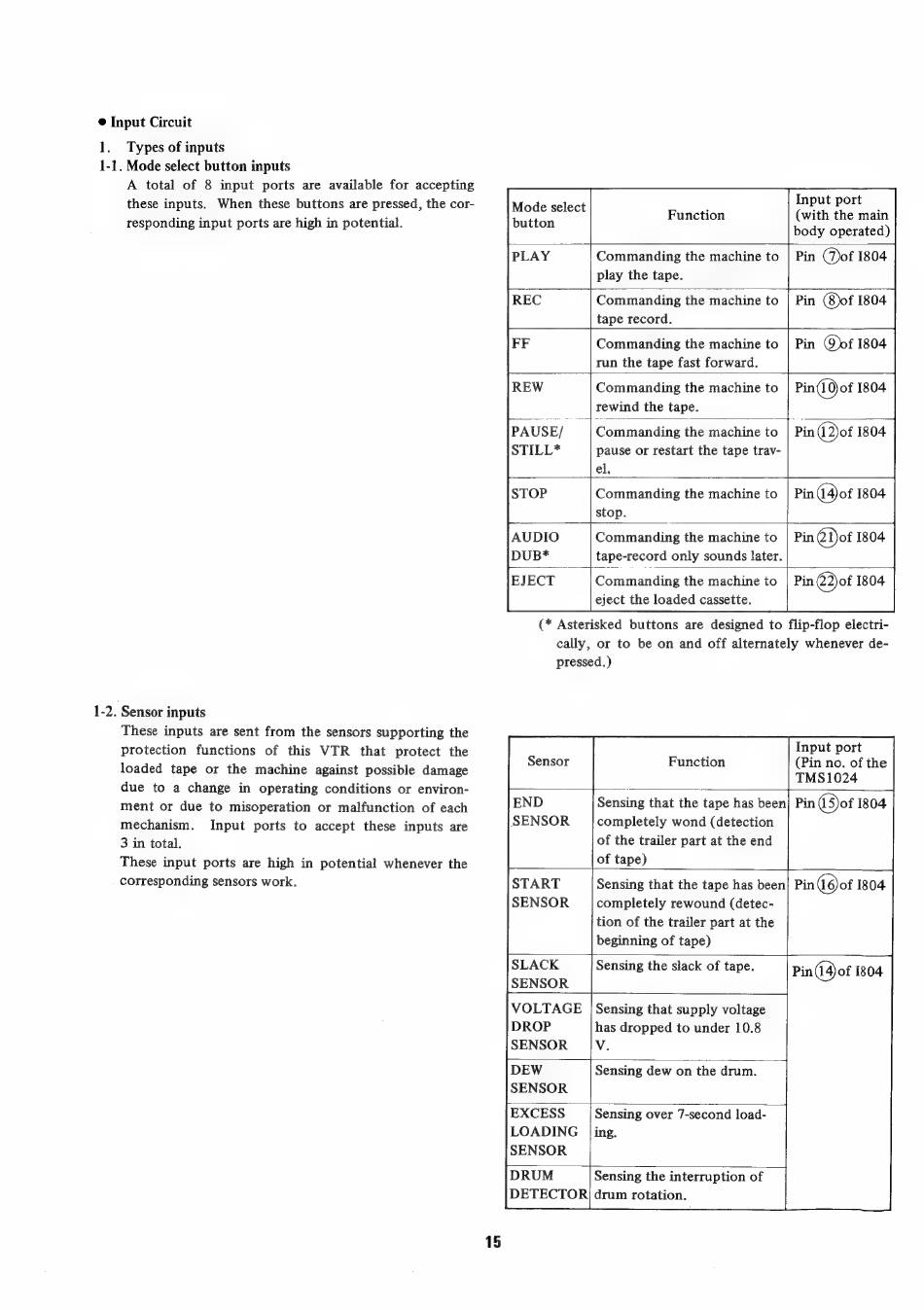

@ Input Circuit
1.
Types of inputs
1-1. Mode select button inputs
A total of 8 input ports are available for accepting
these inputs.
When these buttons are pressed, the cor-
responding input ports are high in potential.
1-2. Sensor inputs
These inputs are sent from the sensors supporting the
protection
functions
of this VTR
that
protect
the
loaded
tape or the machine
against possible damage
due
to a change
in operating conditions or environ-
ment or due to misoperation
or malfunction
of each
mechanism.
Input ports to accept
these inputs are
3 in total.
These input ports are high in potential whenever the
corresponding sensors work.
15
Mode select
button
Function
Input port
(with the main
body operated)
PLAY
Commanding the machine to
play the tape.
Pin (of 1804
Commanding the machine to
tape record.
|
Pin (8)of 1804
Commanding the machine to
run the tape fast forward.
Pin @of 1804
Commanding the machine to
rewind the tape.
|
Pin (1 of 1804
Commanding the machine to
pause or restart the tape trav-
el,
Pin (()of 1804
Commanding the machine to
stop.
Pin (14)of 1804
Commanding the machine to
tape-record only sounds later.
Pin lof 1804
Commanding the machine to
eject the loaded cassette.
Pin 22)of 1804
(* Asterisked
buttons are designed to flip-flop electri-
cally, or to be on and off alternately whenever de-
pressed.)
Sensor
Function
Input port
(Pin no. of the
TS1024
END
SENSOR
Sensing that the tape has been|
completely wond (detection
of the trailer part at the end
of tape)
Pin ((5)of 1804
Sensing that the tape has been
completely rewound (detec-
tion of the trailer part at the
beginning of tape)
Pin (16)of 1804
Sensing the slack of tape.
Sensing that supply voltage
has dropped to under 10.8
Vv.
Sensing dew on the drum.
EXCESS
LOADING
SENSOR
Sensing over 7-second load-
ing.
DRUM
DETECTOR
Sensing the interruption of
drum rotation.
Pin (14)of 1804
