Connecting the
sensor
The wirefeeder/SplitBox recognises that there is a sensor connected to the connect-
ing cable.
Each sensor is supplied with its own connecting cable, which must be used. The sensor
connecting cable will be marked with the item number and name of sensor.
2
3
18

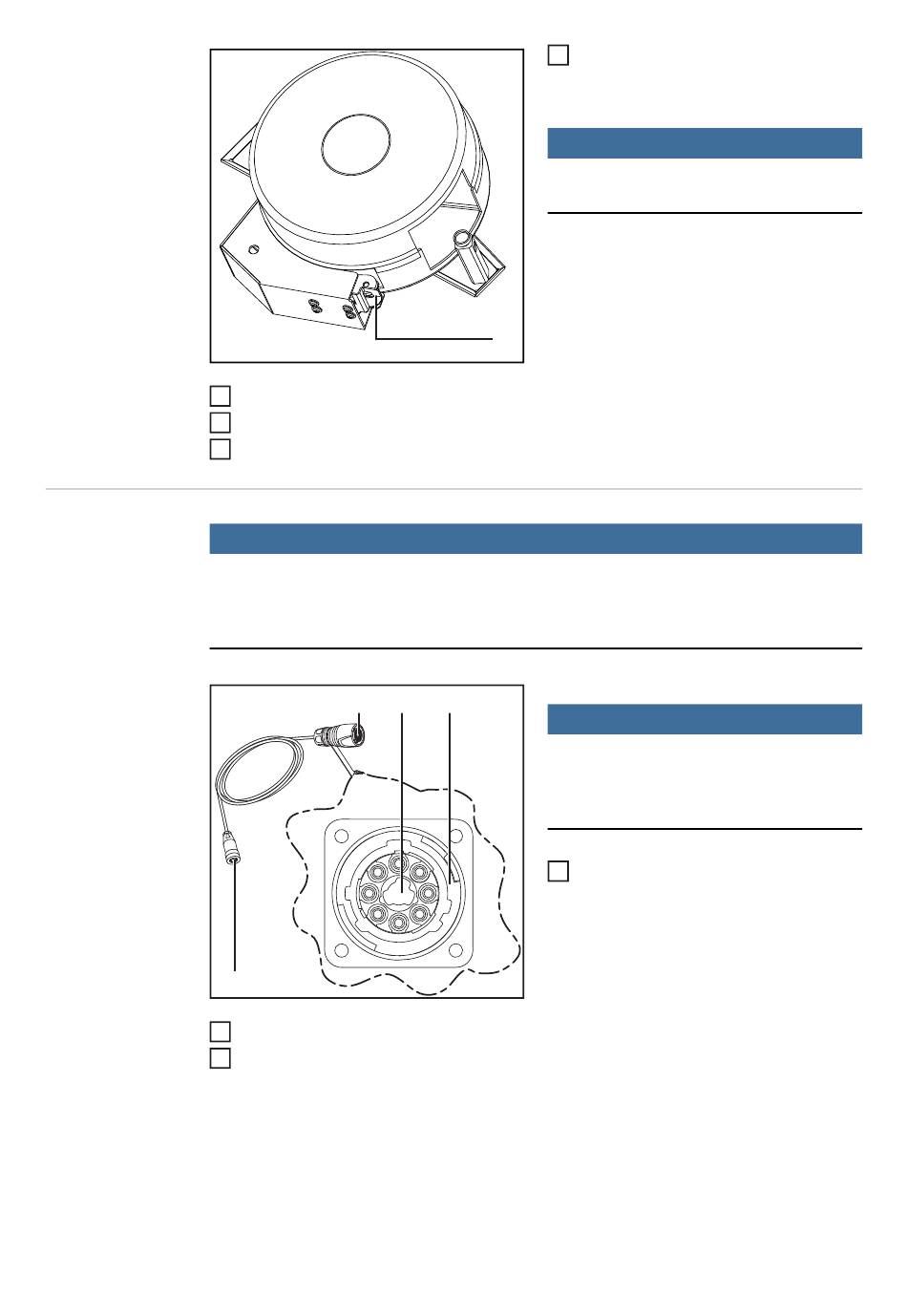

Fit the wirefeeding hose between the wirespool holder and the wirefeeder
Feed in the wire electrode
Close the wirespool cover (1)
NOTE!
(1)
(4)
Connect plug (4) to the sensor plug of the wirespool holder wire end sensor
If necessary, secure the cable with cable ties and cable eyelets
5
NOTE!
The retaining arm (2) must not touch the
wirespool or the wire electrode.
(3)
(3) (2)
NOTE!
The plug (1) of the connecting cable may
only be connected to the sensor
connections (2) that are colour-coded
red (3).
1
Unlock the retaining arm (2) by pres-
sing on the catch (3) and ensure that
the shoe is touching the wire electrode
Connect the plug (1) on the connecting
cable to an OPT/i ext. sensor plug (2)
connection of the wirefeeder/SplitBox
