General
Functional princi- The OPT/i WF R wirespool holder wire end sensor constantly monitors the wirespool. Its
ple integrated sensor detects when the final layer of the wire electrode has been wound off and
outputs a wire end alarm. This alarm does not interrupt the welding process.
Prerequisites
NOTE!
The OPT/i WF R wirespool holder wire end sensor can only be used if an OPT/i ext.
sensor plug has been installed in the respective wirefeeder or SplitBox.

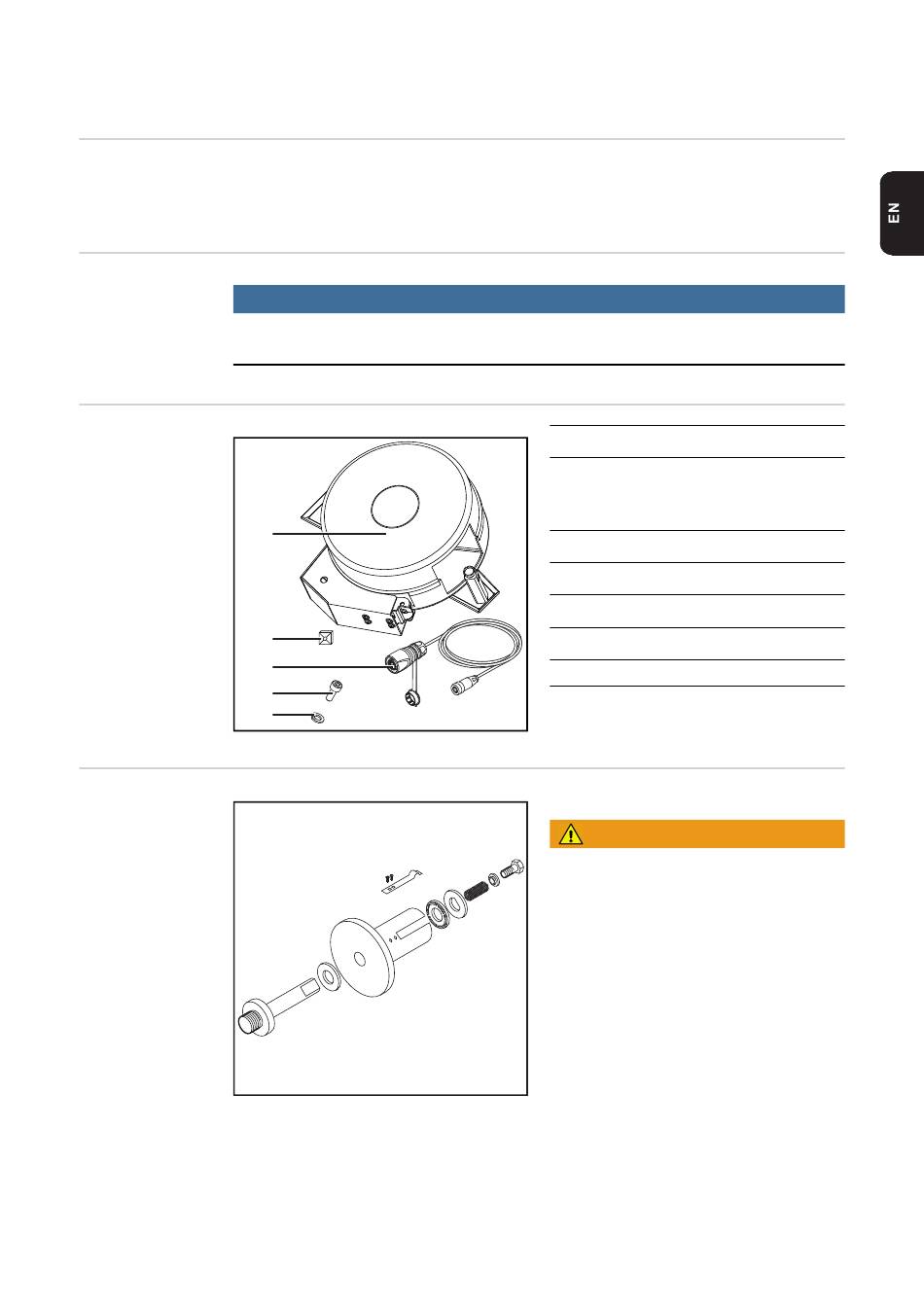

Scope of supply
(1)
(2)
(3)
(4)
(5)
Design of the
brake
(1) Wirespool holder
(2) Cable eyelet
For attaching the connecting cable
as required using cable ties
(3) Connecting cable
(4) 4x M10 x 16 mm Allen screws
(5) 4x locking rings
(6) 5x cable ties (not shown)
(7) This document (not shown)
WARNING!
Fitting the equipment incorrectly can
cause serious injury and damage.
► Do not dismantle the brake.
► Maintenance and servicing of brakes is
to be carried out by trained, qualified
personnel only.
The brake is only available as a complete
unit.
This illustration is for information purposes
only.
