3. Layout, Connections & Jumper Settings
3.2 Connections
USB 2.0 B-Port:

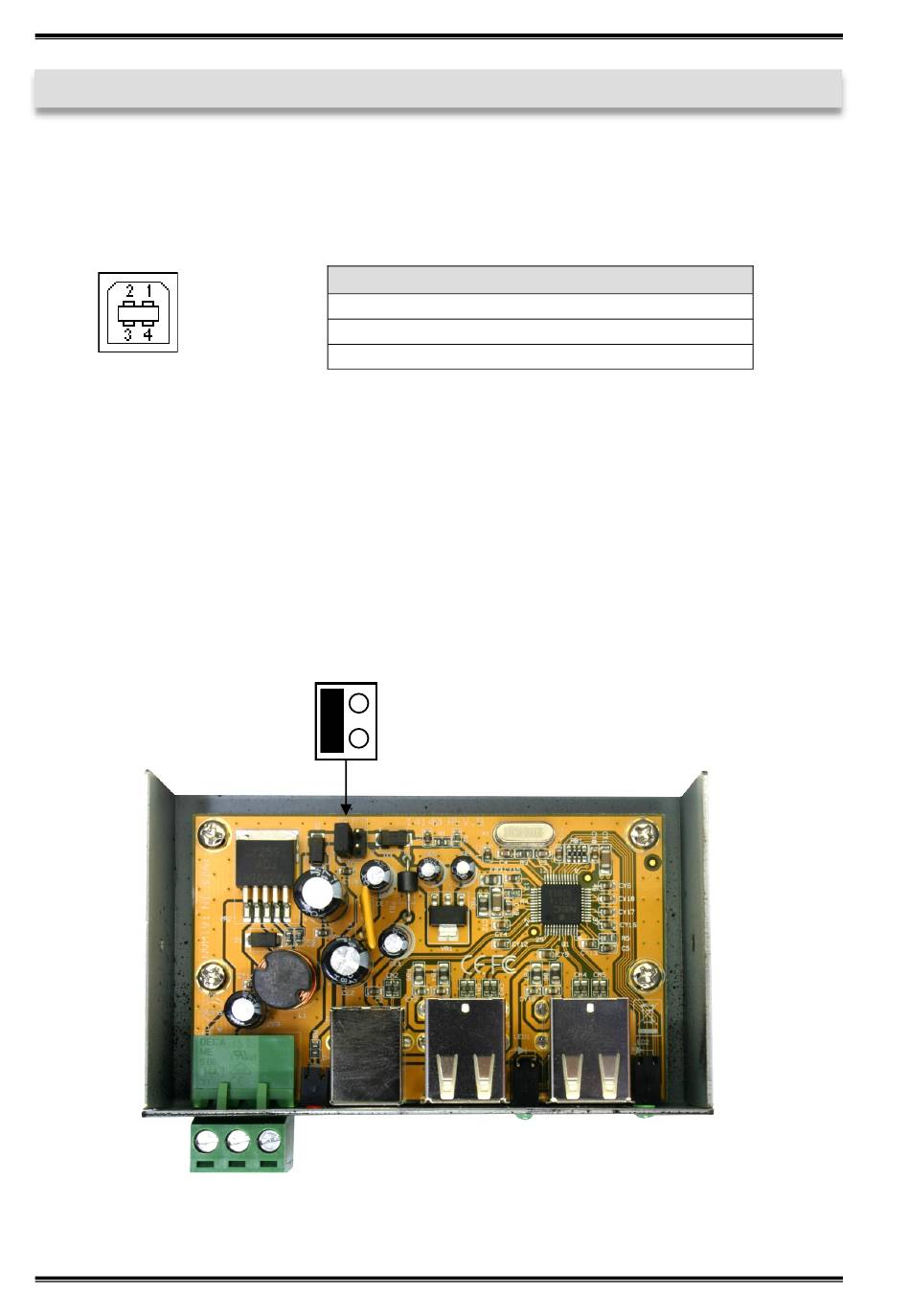

3.3 Jumper Einstellungen
The EX-1163HMS-WT is supplied with self-power setting, i.e. it only works when a voltage is
applied to the terminal block. With the internal jumper JP1, it is possible to operate the hub via
the USB bus (bus power). To do this, open the housing using the two screws on the side. Now
the jumper JP1 can be set from T (terminal block) to U (USB).
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
USB 2.0 B-Port
Pin
Signal
1
VCC
2
DATA-
T
U
JP1
10
EX-1163HMS-WT
Pin
Signal
3
DATA+
4
GND
