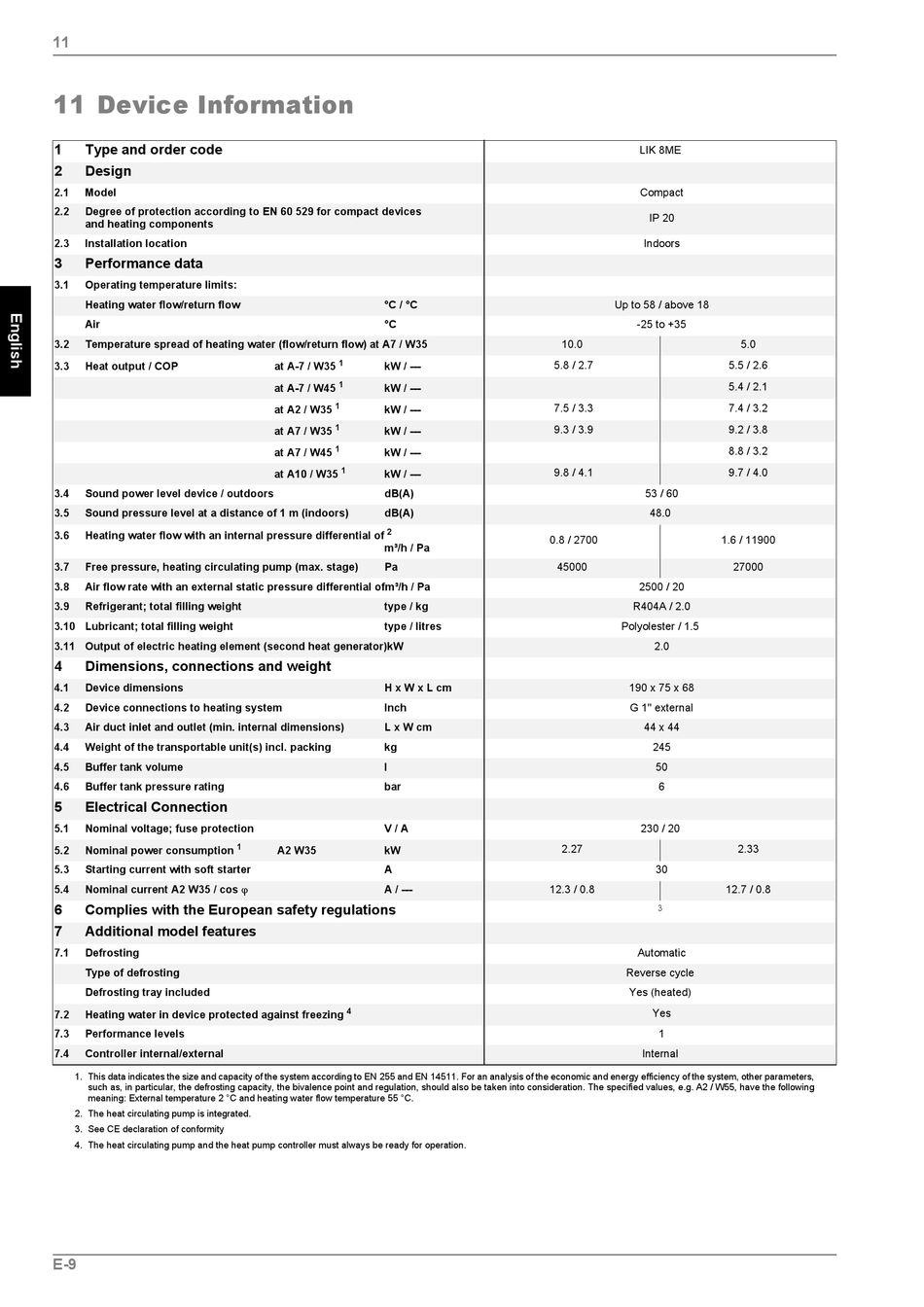

11 Device Information

1 Type and order code
2 Design
2.1 Model
2.2 Degree of protection according to EN 60 529 for compact devices
and heating components
2.3 Installation location
3 Performance data
3.1 Operating temperature limits:
Heating water flow/return flow
Air
3.2 Temperature spread of heating water (flow/return flow) at A7 / W35
3.3 Heat output / COP
3.4 Sound power level device / outdoors
3.5 Sound pressure level at a distance of 1 m (indoors)
3.6 Heating water flow with an internal pressure differential of
3.7 Free pressure, heating circulating pump (max. stage)
3.8 Air flow rate with an external static pressure differential ofm³/h / Pa
3.9 Refrigerant; total filling weight
3.10 Lubricant; total filling weight
3.11 Output of electric heating element (second heat generator)kW
4 Dimensions, connections and weight
4.1 Device dimensions
4.2 Device connections to heating system
4.3 Air duct inlet and outlet (min. internal dimensions)
4.4 Weight of the transportable unit(s) incl. packing
4.5 Buffer tank volume
4.6 Buffer tank pressure rating
5 Electrical Connection
5.1 Nominal voltage; fuse protection
5.2 Nominal power consumption
5.3 Starting current with soft starter
Nominal current A2 W35 / cos ϕ
5.4
6 Complies with the European safety regulations
7 Additional model features
7.1 Defrosting
Type of defrosting
Defrosting tray included
7.2 Heating water in device protected against freezing
7.3 Performance levels
7.4 Controller internal/external
1. This data indicates the size and capacity of the system according to EN 255 and EN 14511. For an analysis of the economic and energy efficiency of the system, other parameters,
such as, in particular, the defrosting capacity, the bivalence point and regulation, should also be taken into consideration. The specified values, e.g. A2 / W55, have the following
meaning: External temperature 2 °C and heating water flow temperature 55 °C.
2. The heat circulating pump is integrated.
3. See CE declaration of conformity
4. The heat circulating pump and the heat pump controller must always be ready for operation.
E-9
°C / °C
°C
1
at A-7 / W35 kW / ---
1
at A-7 / W45 kW / ---
1
at A2 / W35 kW / ---
1
at A7 / W35 kW / ---
1
at A7 / W45 kW / ---
1
at A10 / W35 kW / ---
dB(A)
dB(A)
2
m³/h / Pa
Pa
type / kg
type / litres
H x W x L cm
Inch
L x W cm
kg
l
bar
V / A
1
A2 W35 kW
A
A / ---
4
LIK 8ME
Compact
IP 20
Indoors
Up to 58 / above 18
-25 to +35
10.0
5.8 / 2.7
7.5 / 3.3
9.3 / 3.9
9.8 / 4.1
53 / 60
48.0
0.8 / 2700 1.6 / 11900
45000
2500 / 20
R404A / 2.0
Polyolester / 1.5
2.0
190 x 75 x 68
G 1'' external
44 x 44
245
50
6
230 / 20
2.27
30
12.3 / 0.8
3
Automatic
Reverse cycle
Yes (heated)
Yes
1
Internal
5.0
5.5 / 2.6
5.4 / 2.1
7.4 / 3.2
9.2 / 3.8
8.8 / 3.2
9.7 / 4.0
27000
2.33
12.7 / 0.8
