5. Startup

5.4 Venting the timed lubricator

The pump is vented by way of two special
vent plugs with center holes. Plug "A" is for
the lubricating oil, plug "B" for the servo oil.
The air can escape out timed lubricator when
the plugs are loosened. The pump vents itself
in normal operation.
PD timed lubricator – venting the
lubricating oil
Place the oil collection tray beneath the PD
timed lubricator
Turn vent plug "A" (lubricating oil) against
clockwise a maximum of 3 turns
The venting procedure is completed when
bubble-free oil escapes from the timed
lubricator.
Tighten vent plug "A" (lubricating oil)
Tightening torque 10 Nm
Timed lubricator – venting the servo oil-
- see Fig. 17and Fig. 18
Place the oil collection tray beneath the
timed lubricator
Operate the CLU4-C Pulse Lubrication
System via manual lubrication or manual
emergency operation
This is only possible with activated servo-
oil primary pressure!
Caution! – danger of injury!
A system pressure of appr. 50 bar is
pending at vent plug "B" during the
following venting procedure. That is
why the vent plug may only be loo-
sened a maximum of 3 turns.
Turn vent screw "B" (servo oil) counter-
clockwise a maximum of 3 turns
The venting procedure is completed when
bubble-free oil escapes from the PD
timed lubricator.
Tighten vent plug "B" (servo oil)
Tightening torque 10 Nn
Page 91
CAUTION – danger of injury!
Pay attention to safety information in
Chapter 5.4

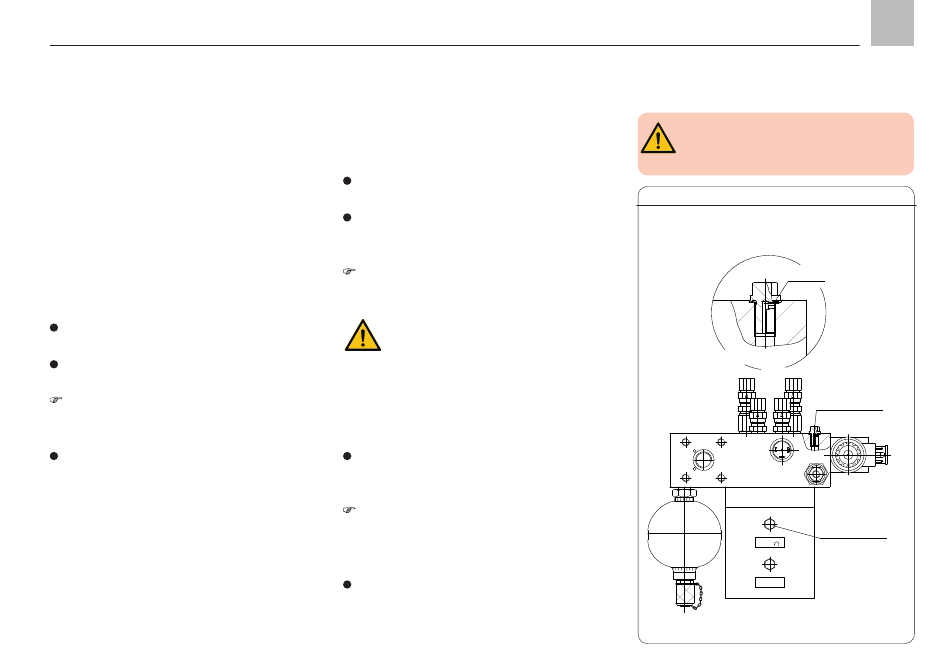

Venting the CLU4-C timed lubricator
vent hole
Vent plug "B" (servo oil)
Vent plug "A"
(lubricating oil)
venting valve luboil
open max. 3 (for lubrication oil
supply venting)
do not open
EN
Fig. 17
(for servo oil
supply venting)
