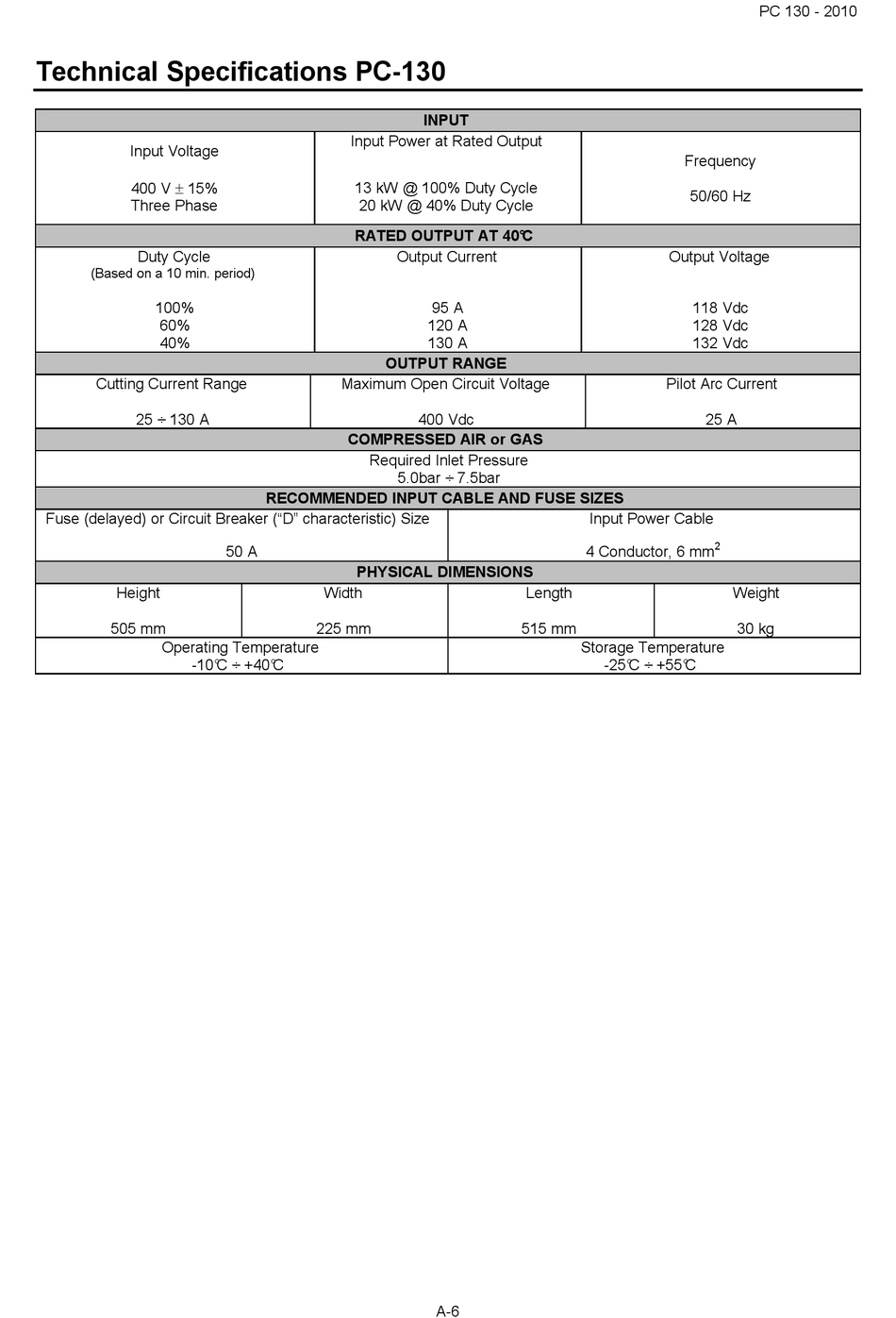

Technical Specifications PC-130
Input Voltage
400 V  15%
Three Phase
Duty Cycle
(Based on a 10 min. period)
100%
60%
40%
Cutting Current Range
25 ÷ 130 A
Fuse (delayed) or Circuit Breaker ("D" characteristic) Size
Height
505 mm
Operating Temperature
-10° C ÷ +40° C
Input Power at Rated Output
13 kW @ 100% Duty Cycle
20 kW @ 40% Duty Cycle
RATED OUTPUT AT 40° C
OUTPUT RANGE
Maximum Open Circuit Voltage
COMPRESSED AIR or GAS
Required Inlet Pressure
RECOMMENDED INPUT CABLE AND FUSE SIZES
50 A

PHYSICAL DIMENSIONS

Width
225 mm
INPUT
Output Current
95 A
120 A
130 A
400 Vdc
5.0bar ÷ 7.5bar
Length
515 mm
A-6
Frequency
50/60 Hz
Output Voltage
118 Vdc
128 Vdc
132 Vdc
Pilot Arc Current
25 A
Input Power Cable
2
4 Conductor, 6 mm
Weight
30 kg
Storage Temperature
-25° C ÷ +55° C
PC 130 - 2010
