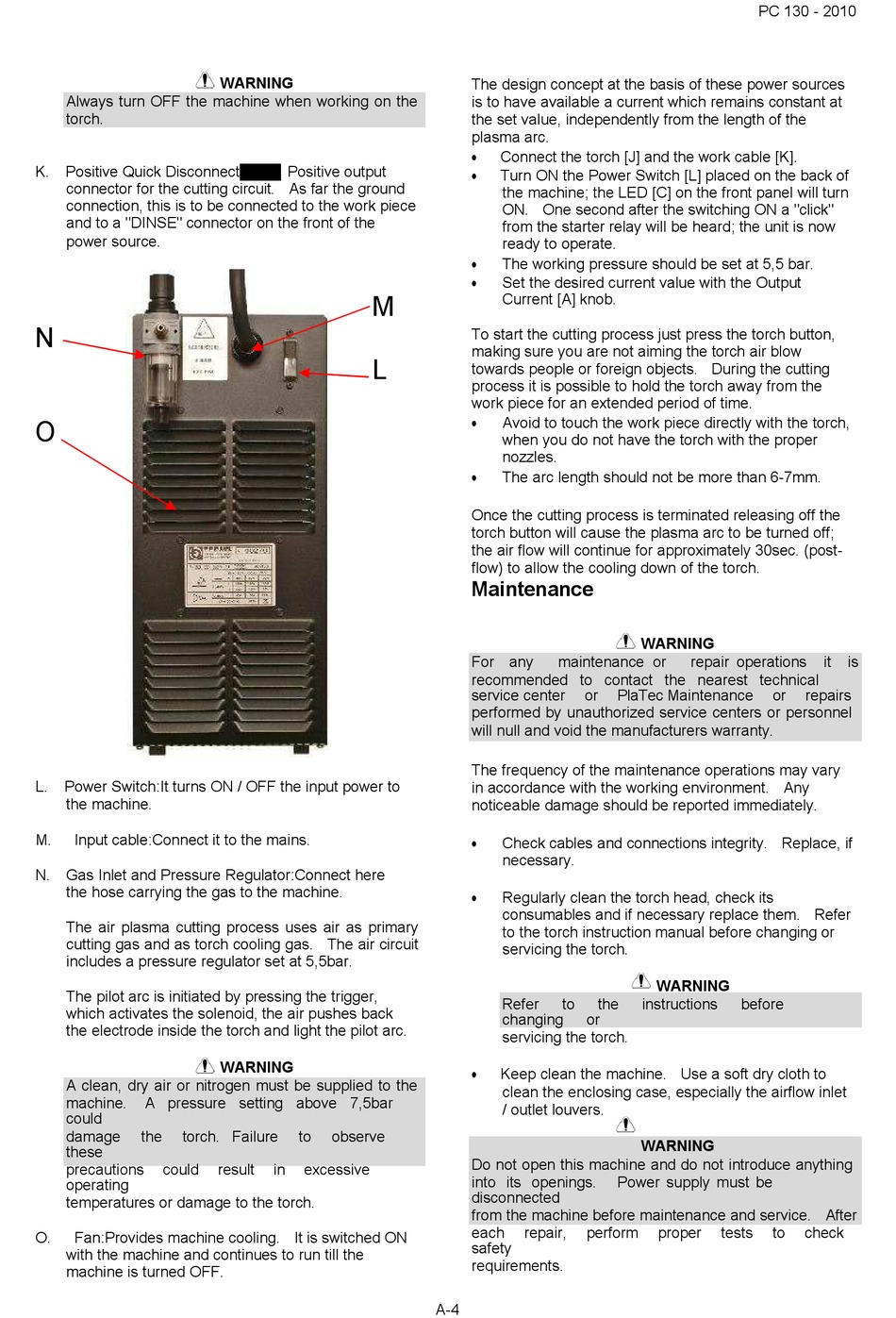

Platec PC-130 Bedienungsanleitung Seite 7

Always turn OFF the machine when working on the
torch.
K. Positive Quick Disconnect:
connector for the cutting circuit. As far the ground
connection, this is to be connected to the work piece
and to a "DINSE" connector on the front of the
power source.
N
O
L. Power Switch: It turns ON / OFF the input power to
the machine.
M. Input cable: Connect it to the mains.
N. Gas Inlet and Pressure Regulator: Connect here
the hose carrying the gas to the machine.
The air plasma cutting process uses air as primary
cutting gas and as torch cooling gas. The air circuit
includes a pressure regulator set at 5,5bar.
The pilot arc is initiated by pressing the trigger,
which activates the solenoid, the air pushes back
the electrode inside the torch and light the pilot arc.
A clean, dry air or nitrogen must be supplied to the
machine. A pressure setting above 7,5bar
could
damage the torch. Failure
these
precautions could
operating
temperatures or damage to the torch.
O. Fan: Provides machine cooling. It is switched ON
with the machine and continues to run till the
machine is turned OFF.
WARNING
Positive output
M
L
WARNING
to observe
result in excessive
The design concept at the basis of these power sources
is to have available a current which remains constant at
the set value, independently from the length of the
plasma arc.

Connect the torch [J] and the work cable [K].

Turn ON the Power Switch [L] placed on the back of
the machine; the LED [C] on the front panel will turn
ON. One second after the switching ON a "click"
from the starter relay will be heard; the unit is now
ready to operate.

The working pressure should be set at 5,5 bar.

Set the desired current value with the Output
Current [A] knob.
To start the cutting process just press the torch button,
making sure you are not aiming the torch air blow
towards people or foreign objects. During the cutting
process it is possible to hold the torch away from the
work piece for an extended period of time.

Avoid to touch the work piece directly with the torch,
when you do not have the torch with the proper
nozzles.

The arc length should not be more than 6-7mm.
Once the cutting process is terminated releasing off the
torch button will cause the plasma arc to be turned off;
the air flow will continue for approximately 30sec. (post-
flow) to allow the cooling down of the torch.
Maintenance
For any maintenance or
recommended to contact the nearest technical
service center or
performed by unauthorized service centers or personnel
will null and void the manufacturers warranty.
The frequency of the maintenance operations may vary
in accordance with the working environment. Any
noticeable damage should be reported immediately.

Check cables and connections integrity. Replace, if
necessary.

Regularly clean the torch head, check its
consumables and if necessary replace them. Refer
to the torch instruction manual before changing or
servicing the torch.
Refer to the
changing or
servicing the torch.

Keep clean the machine. Use a soft dry cloth to
clean the enclosing case, especially the airflow inlet
/ outlet louvers.
Do not open this machine and do not introduce anything
into its openings.
disconnected
from the machine before maintenance and service. After
each repair, perform
safety
requirements.
A-4
PC 130 - 2010
WARNING
repair operations
PlaTec Maintenance or
WARNING
instructions before
WARNING
Power supply must be
proper tests to
it is
repairs
check
