Part 4: Operation instructions of control panel

■ Displays and buttons
4.1 .1Display icon illustration
① Operation mode area
BOOST– light up means product is under boost mode (heat pump and electric heater heating together).
AUTOMATIC– light up means product is under automatic mode.
HEAT PUMP – light up means heat pump running on heat pump mode.
② Clock and timer area
– light up means timer on/off is turned on, maximun 3 timers can be set.
③ ON/OFF, TIMING area
TIMING – light up means heat pump is running or standby.
ON/OFF, TIMING – both light up means heat pump is under timer setting status.
④ Temperature area
When Light up means Wi-Fi is connected.
When SETTING light up it displays the set temperature.
When TEMP light up it displays the tank water temperature.
When there is faulty, it displays error code.
When heat pump running in special cycle, it displays special cycle code.
– means the temperature measurement is ℃.

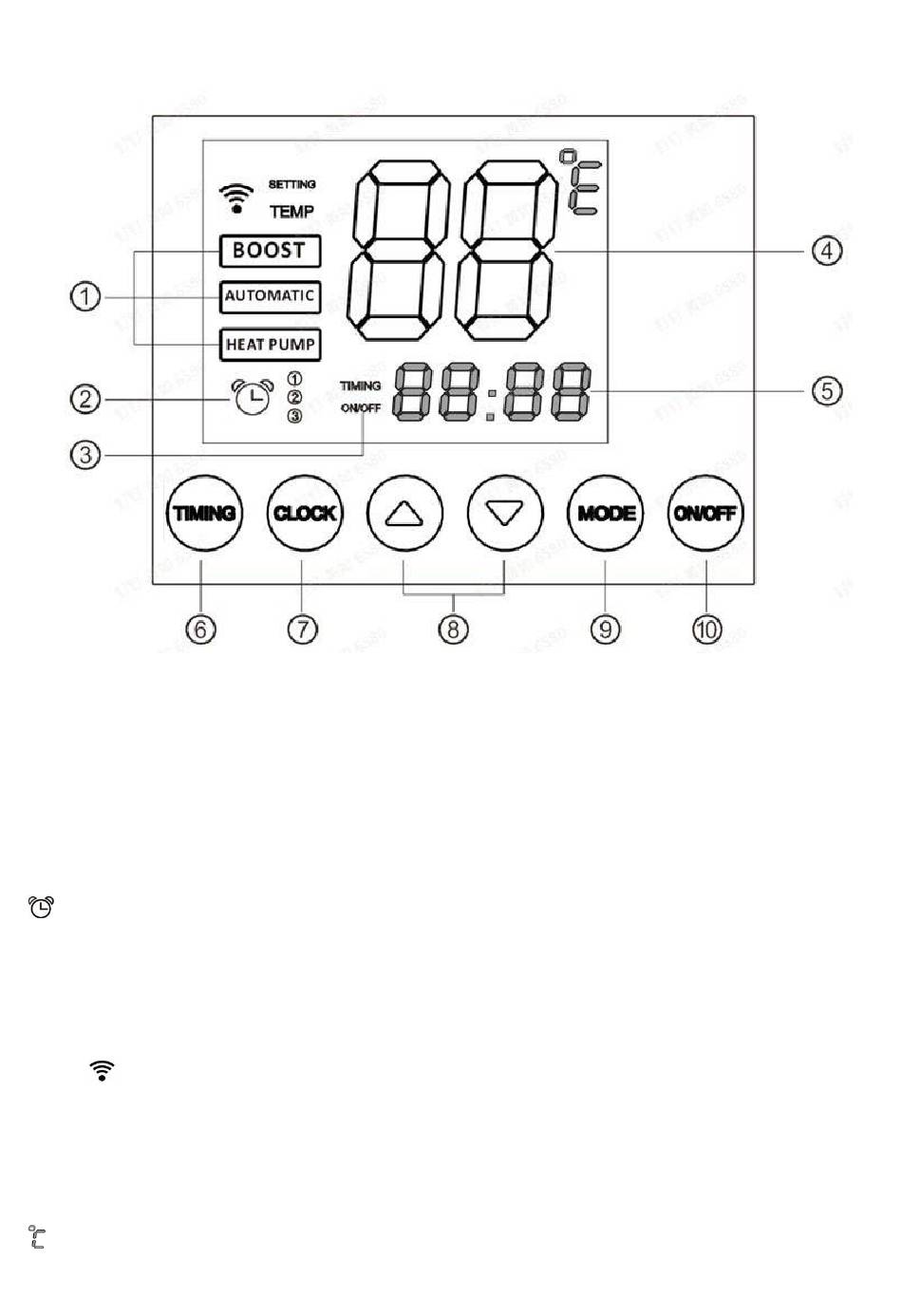

Fig.9 Control panel
