Part 3: Installation

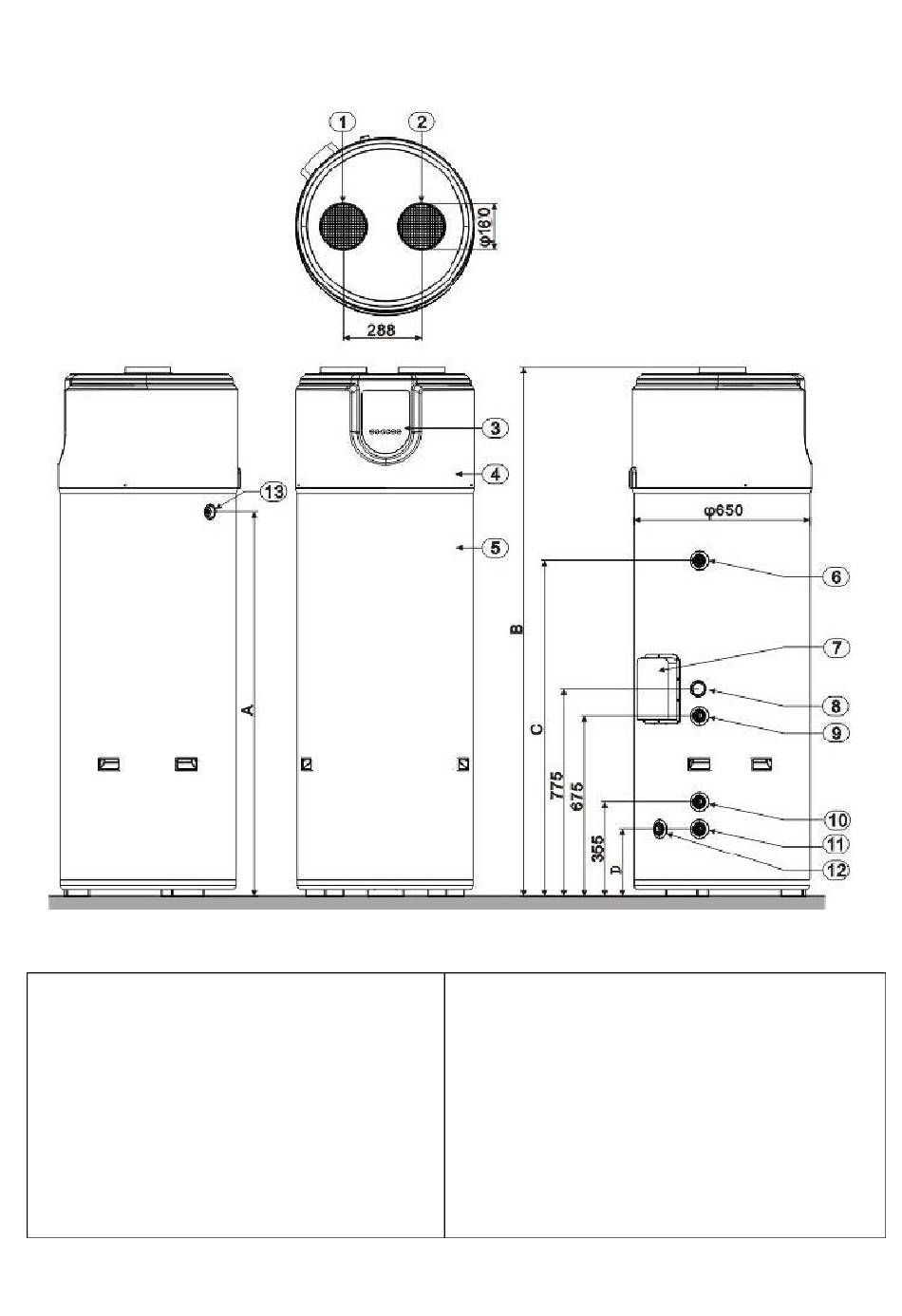

■ Appliance layout and dimensions
■
Part names:
1. Air inlet –φ160mm
2.Air outlet –φ160mm
3.Control panel
4.Housing cover
5.Water tank – 300 litre/200 litre
6.Hot water outlet –G 3/4" F
7.Electrical box (containing
non-self-resetting thermal cut-out, electric
heating element and electronic anode)
8.Magnesium rod
Fig.3 Appliance layout and dimensions
4
9.Solar energy inlet –G 3/4" F
10.Solar energy outlet –G 3/4" F
11.Cold water inlet –G 3/4" F
12.Sewage water outlet –G 3/4" F
13.Condensate outlet –G 1/2" F
