10. Wiring Diagram

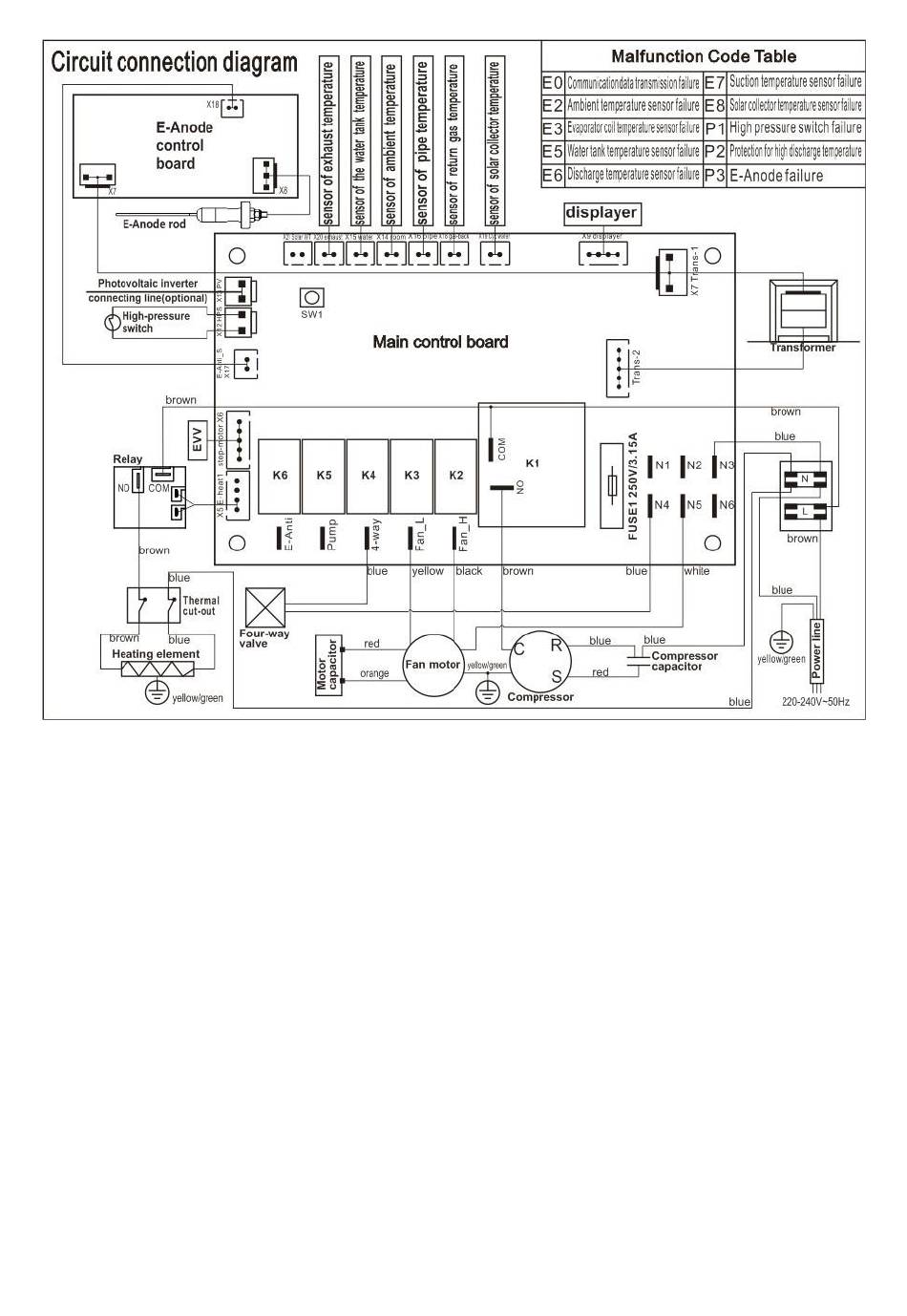

Fig.8 Wiring diagram
Note:
1. Type and rating of fuse: cartridge fuse-link, 3.15AL250V.
2. K5 terminal and N1 (orN2) used to connect with solar pump. Maximum solar water pump power
input: 250 w. (Optional function)
ATTENTION
This diagram is for reference only. When the content of the above diagram differs from that on the
appliance, please refer to the electrical diagram in the electric control box of the appliance.
