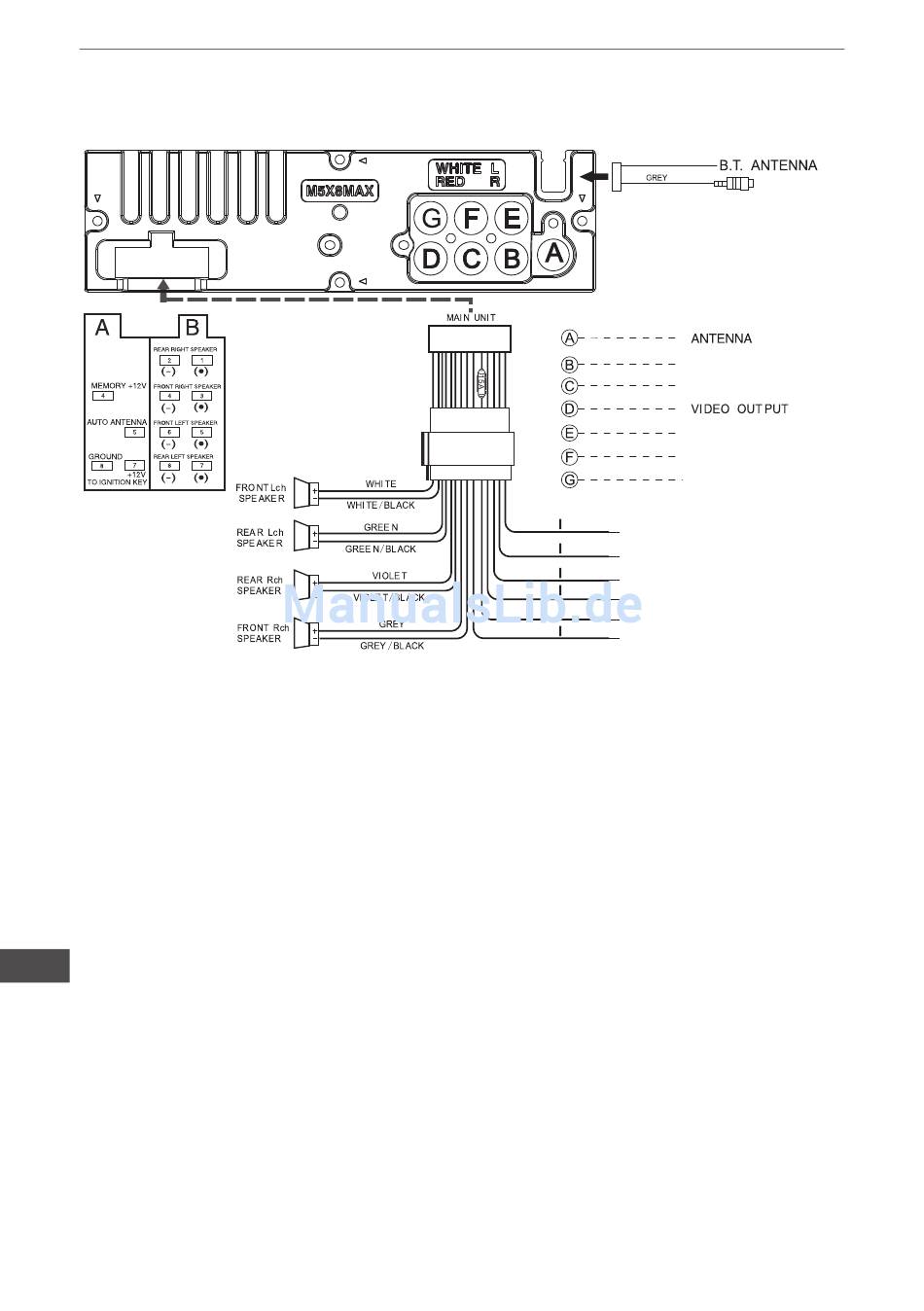

DIAGRAM PODŁĄCZANIA PRZEWODÓW
Warnning
Safety wire.This wire must connect to the ground of car.Otherwise,there are no picture on
the TFT screen when playing video file or a picture.

BASIC OPERATION

INITIAL SYSTEM STARTS- UP
EN
Operating the unit for the first time or after replacing the car battery, you should press ( 14) to
detach the front panel, and LED ( 15) will be blinking. Press( 1) Reset button with a pointed object(
such as a ballpoint) to set the unit to initial procedure.
Note: When some errors occur in the LCD display, you can also press RESET button to resume
tonormal. And it will erase the clock setting and some memorized functions.

TURNING THE UNIT ON/OFF

Press any button to turn on the unit, Press (2)POWER button more than 3 seconds to turn off.
6
Owner's manual
BACK VIEW (B+)
PINK
BROWN
SAFETY WIRE
IGNITION SWITCH (B+)
RED
GROUND (B-)
BLACK
YELLOW
MEMORY BACK -UP
BLUE
POWER ANTENNA
SU BWO OF ER
RE AR Rc h LI NE OUT
RE AR Lc h LI NE OUT
FR ON T Rc h LI NE OUT
FR ON T Lc h LI NE OUT
BA CK VI EW I NP UT
