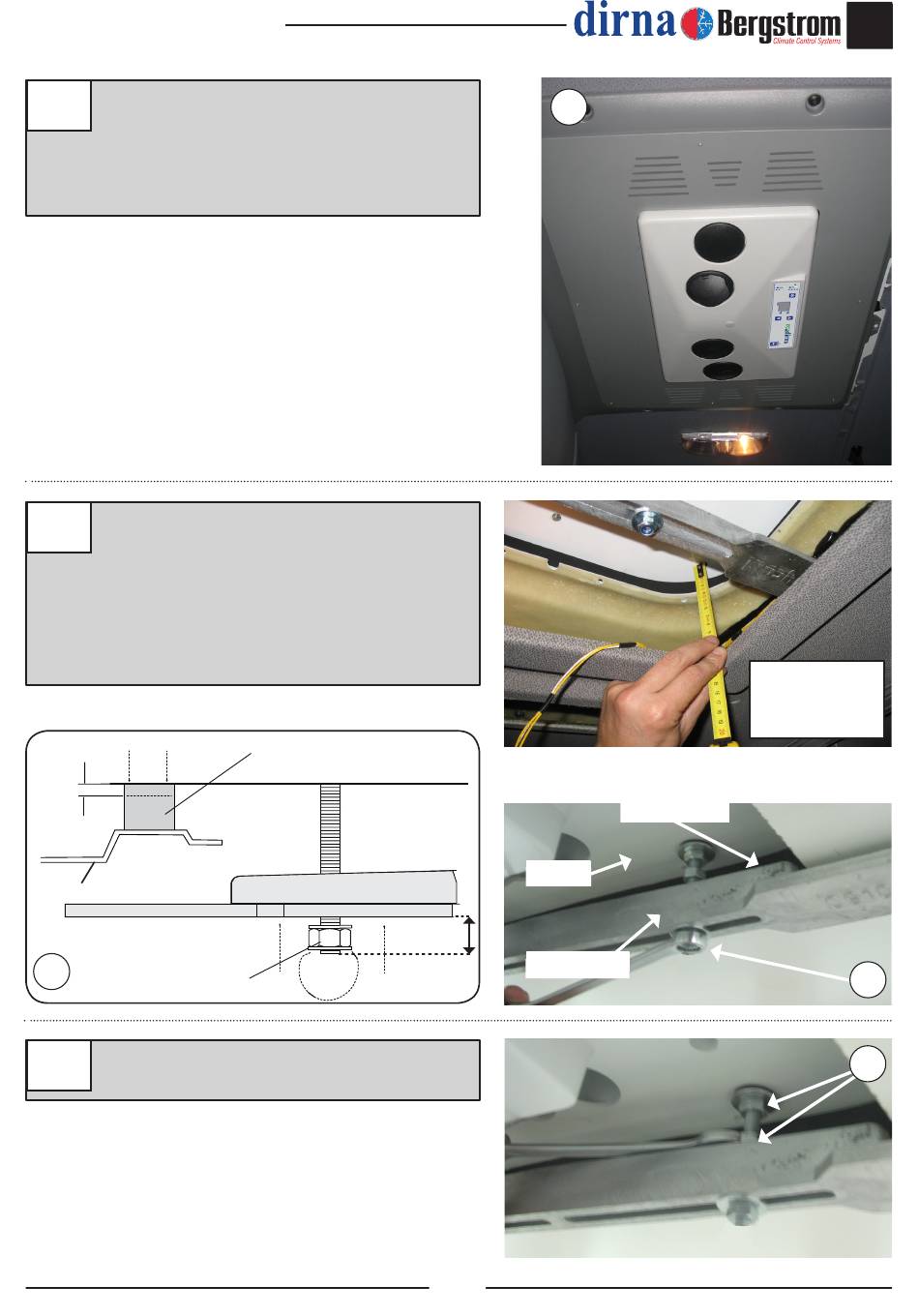

Place the supplied console on the original
console frame and align the unit.
BE SURE THERE IS A GAP BETWEEN THE
CONSOLE FRAME AND THE FRONT.
Fasten supports tightening nuts until outside
16
EPDM joint of equipment is compressed,
between 3 and 6 mm.
Important: To avoid water from filtering inside
cabin, check EPDM joint tightening with unit
base, as indicated on diagram.
3-6mm.
Cabin roof
Fasten selflocked nut until
EPDM gasket is compressed
16
between 3 and 6 mm.
Tighten (4) M8 nuts to support and (4) to Unit
17
base.
EPDM gasket
10 mm*
(*) (approx. after tightening)
Air conditioning for vehicles
15
Base
Bracket
23
Check compression
thickness using a
tape measure in the
four corners.
EPDM gasket
