dirna Bergstrom bycool green COMPACT 3.0 Montageanweisungen Seite 25

COMPACT 3.0
M8 x125x100 / 120
Studs
Cabin roof
EPDM Joint 25 mm.
Upholstery
Original console
frame

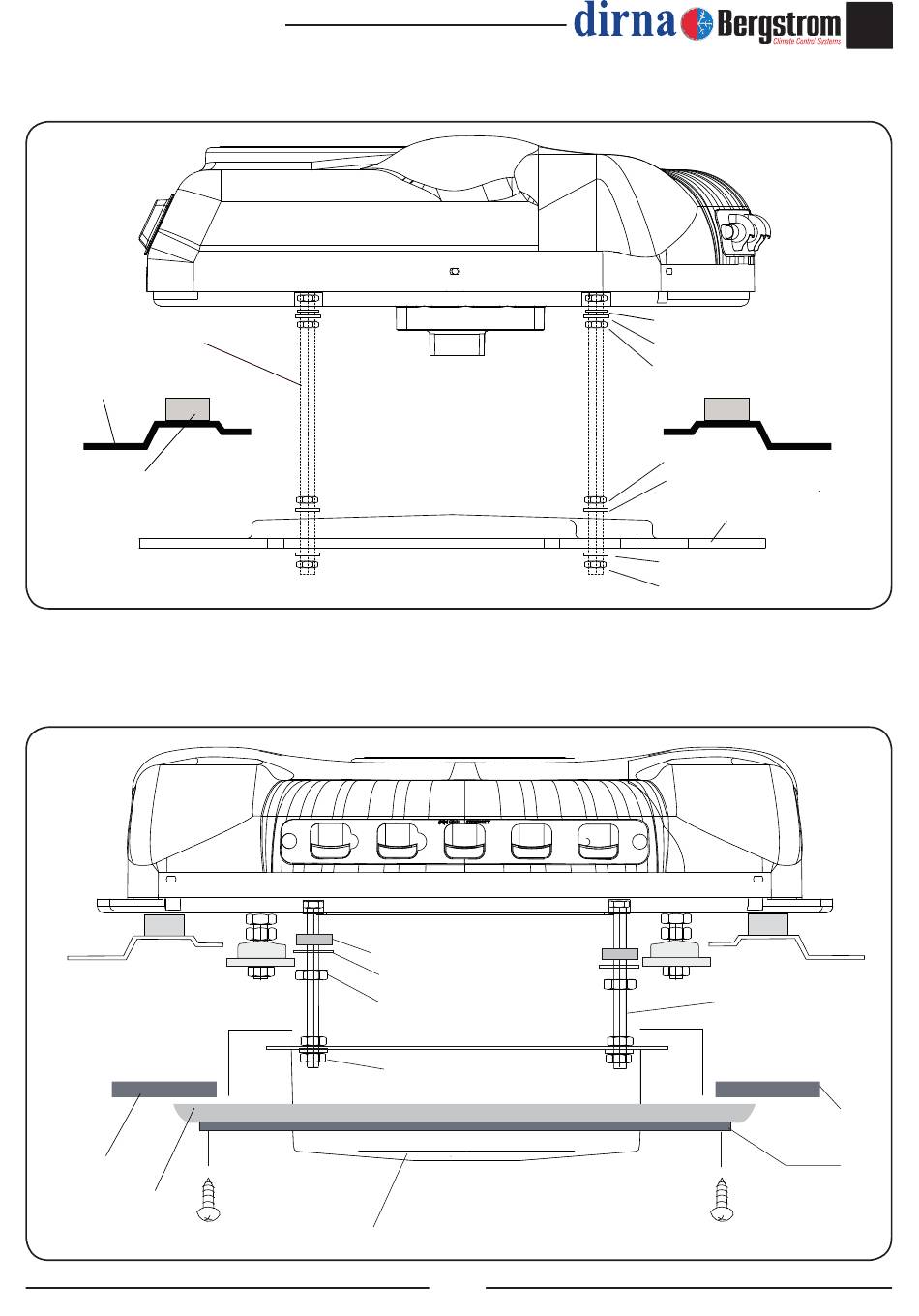

Exploded side view to supports fastening
Exploded rear view to consoles fastening
Rubber washer Ø6
Front with windows
Ø6 Wide wing flat washer
M6 Nut
M6 Nut
25
Air conditioning for vehicles
ø 7 Rubber washer
wide wing flat washer ø 8
M8 Nut
M8 Nut
Wide wing flat washer ø 8
Fastening support
Wide wing flat washer
M8 self-blocking nut
M6 Studs
ES
EN
Upholstery
Console
(8) 3.5x16
Self-tapping screws
