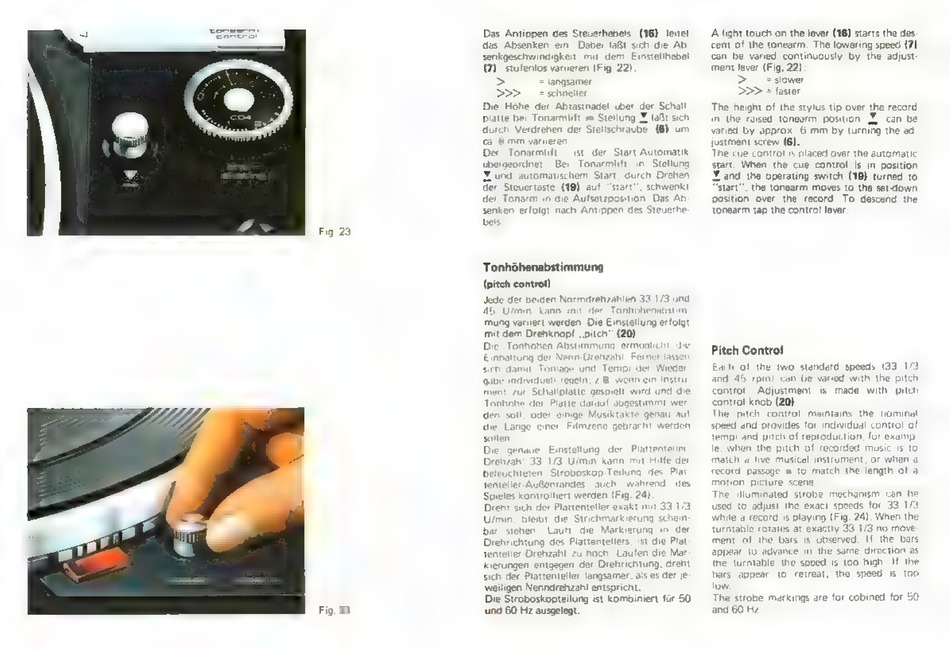

Fig. 23
Fig. 24
Das Antippen des Steverhebels (16) leitet
das Absenken ein, Dabel lait sich die Ab;
Senkgeschwvindigkeit mit. dem Einstelihebe!
(7) stufenios variieren (Fig. 22).
>
iangsamer
Tonhdhenabstimmung
(pitch control)
'mung variiert werden. Die Einstellung erfolgt
mit dem Drehknopf ..pitch' (20)
yenabystim:
ige Musik
A light touch on the lever (16) starts the des
cent of the tonearm. The lowering speed (71
an be varied continuously by the adjust
ment lever (Fig, 22)
> _ = slower
>>> = faster
The height of the stylus tip over the record
in the raised tonearm position ¥ can be
varied by approx. 6 mm by turning the ad
justment screw (6).
The cue control is placed aver the automatic
start. When the cue control is in position
Zand the operating switch (19) turned 0
Tbtart", the tonearm moves to the set-down
position over the record. To descend the
tonearm tap the contro! lever
Pitch Control
The pitch control maintains the nominal
speed and provides for individual control of
tempi and pitch of reproduction, for
e x a m p
le, when the pitch of recorded music 1s to
match a five musical instrument, or when a
record passage is to match the length of a
motion picture scene
The illuminated strobe mechanism
used (0 adjust the exact speeds for 33 1/3
while a record is playing (Fig. 24). When the
turntable rotates at exactly 33 1/3 no move
ment of the bars is observed. If the bars
appear to advance in the same direction as
the turntable the speed is too high, If the
bars appear to retreat, the speed 1s too
low.
The strobe markings are for cobined for 50
and 60 Ha
