5.2 Power Supply Connections

Camera can work with either VDC or 4VAC, dual voltage power.
It is strongly required the polarity-matched connection for 12VDC supply, otherwise IR LEDs will not operate
at night.
Primary and secondary grounds are completely isolated to avoid the possible ground-loop problems.
In case that HD-SDI Inputs are not supported in the monitor, please use HD-SDI converter (HDA-00EC,
Art. No. 00836) to connect HD-SDI cable with the monitor.
Some monitors for PC purpose in the market may not support 30p/25p and cannot display picture.
Please check specifications of the monitor before installation.

5.3 Limit of Pan and Tilt

1. Pan limit
Pan is limited to +/- 90°.

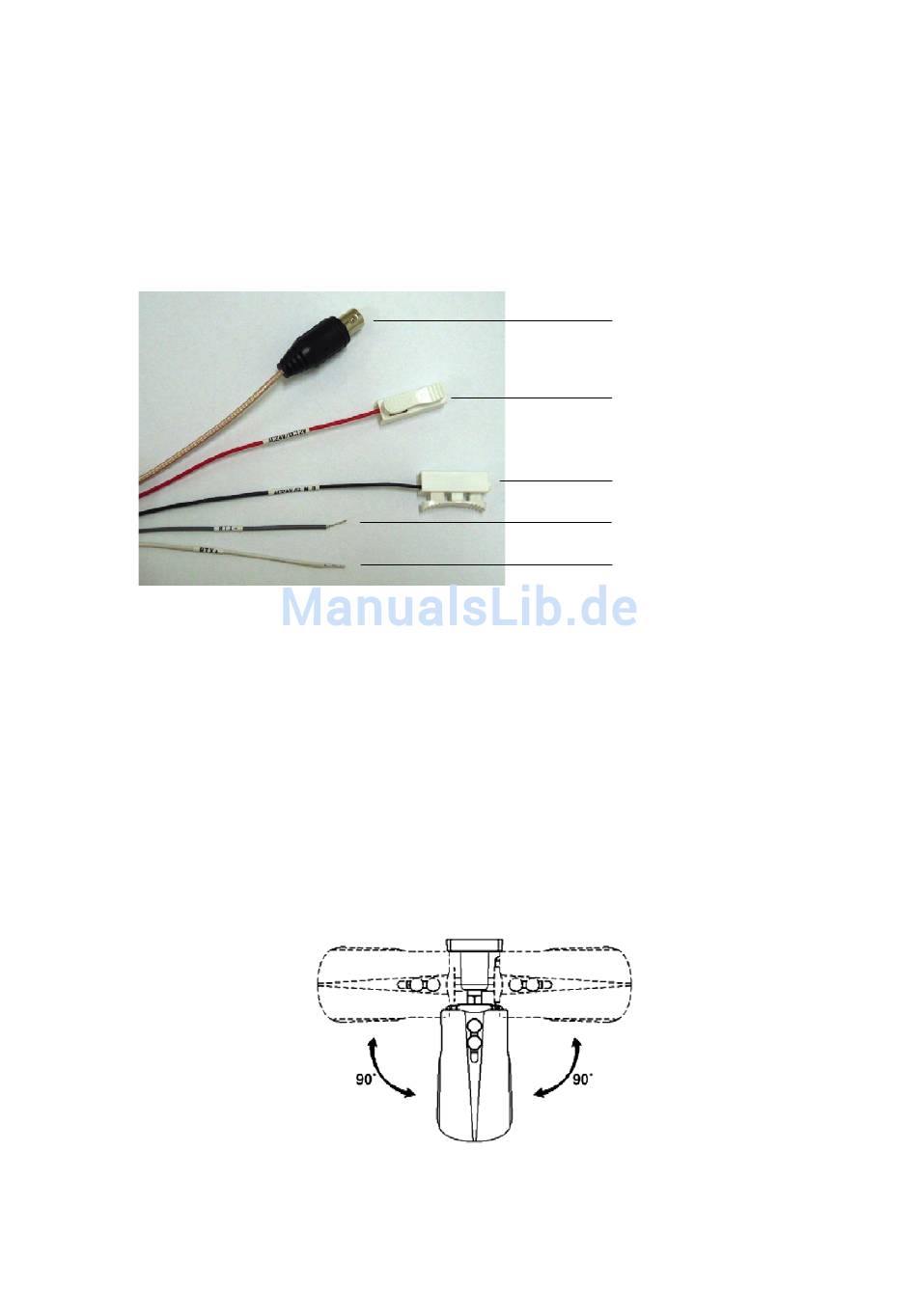

HD-SDI cable
4VAC / VDC (red wire)
4VAC / GND (black wire)
RS-485– (gray wire)
RS-485+ (white wire)
