6.3.2 HSBLC Menu

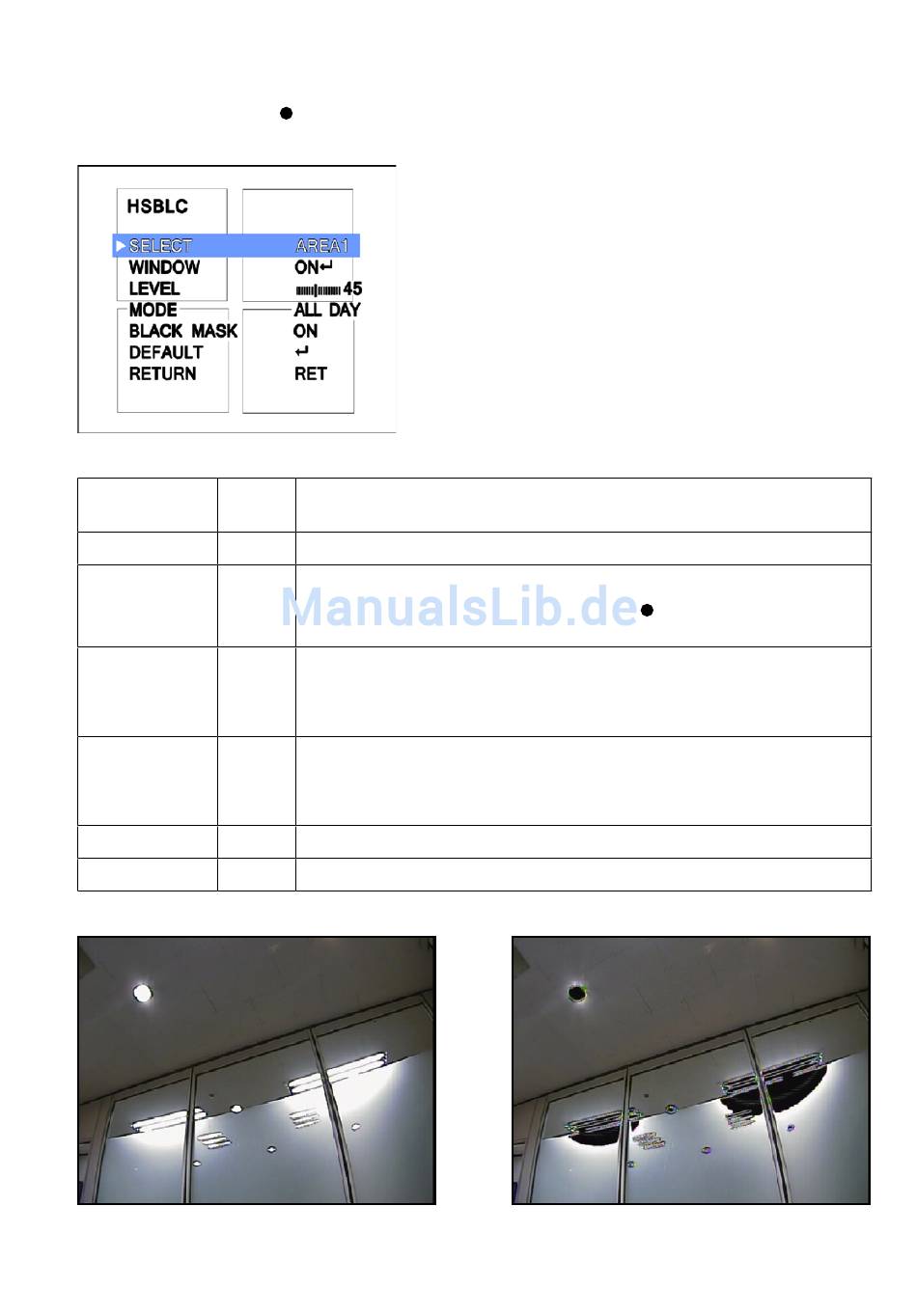

To enter HSBLC menu, press at EXPOSURE > BACKLIGHT > HSBLC.
HSBLC Factory
Default
SELECT AREA1
WINDOW ON
LEVEL 45
MODE ALL DAY Sets ALL DAY or NIGHT.
BLACK MASK ON
DEFAULT –
HSBLC OFF
HSBLC cuts out and fills the highlighted area with black
The cut out area is excluded in determining the light level by
the signal processor.
HSBLC has four windows and they can be set independently
in size, position, level and etc.
Descriptions
Selects a window to adjust out of the AREA ~4.
ON enables the selected window.
Window position and size can be set by pressing at EXPOSURE > BACKLIGHT
> HSBLC > WINDOW > ON.
LEVEL determines the video level that starts cutting out.
Lower setting starts the cut out at lower level.
The cut out area is masked with black colour.
ALL DAY enables HSBLC regardless of DAY or NIGHT mode.
NIGHT enables HSBLC only when camera works in NIGHT mode.
Sets ON or OFF of the displaying black mask.
Resets the current settings and loads the default for HSBLC settings.
43
HSBLC ON
