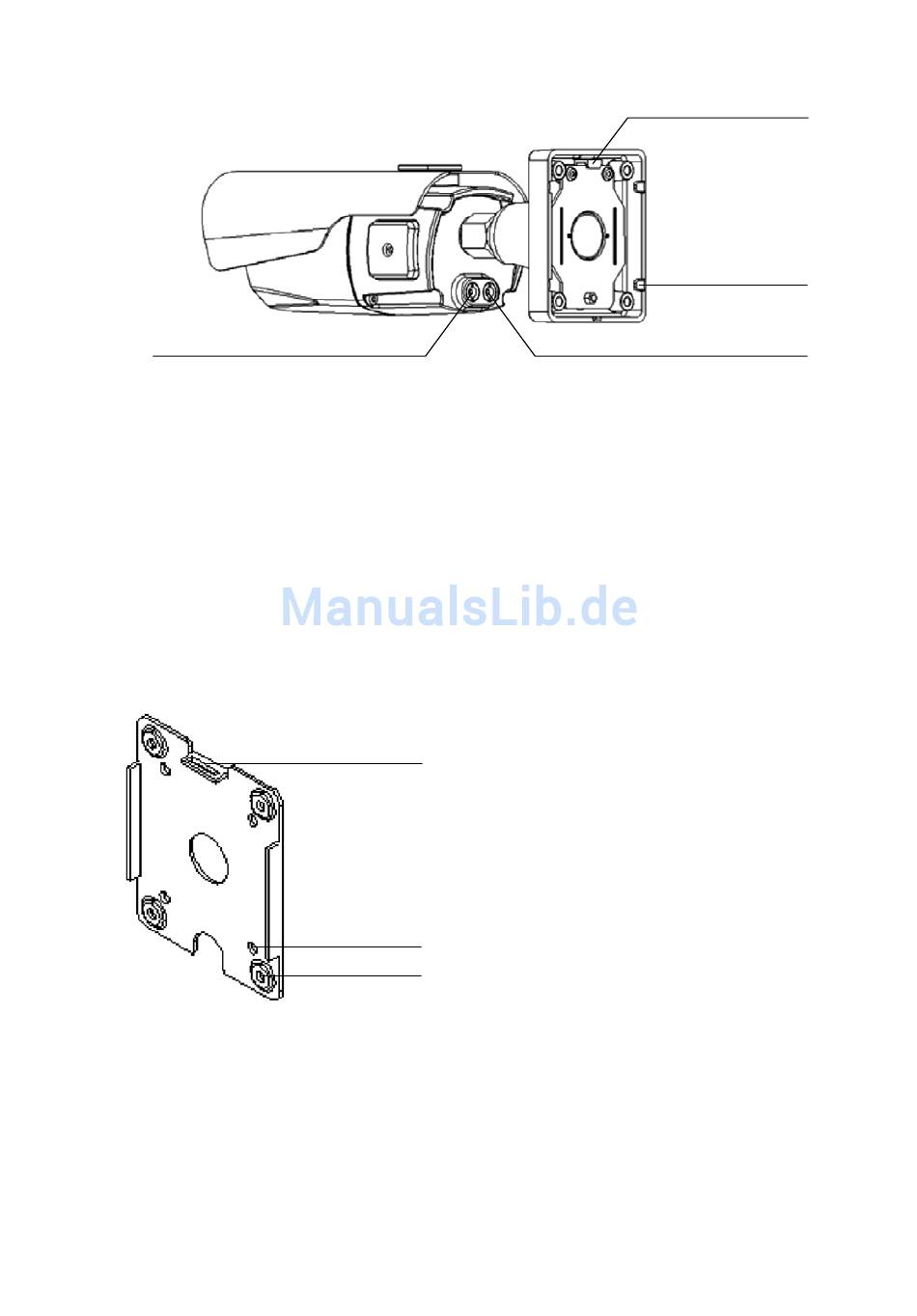

4.2 Rear Side View

(j)
(j) Focus adjustment
(k) Zoom adjustment
(l) Hook for Easy Bracket
(m) Cable Exits (5x)

4.3 Easy Bracket

(n) Peg for Easy Bracket Hook (l)
(o) Wall Mount hole (4x)
(p) Bracket foot fixing hole (4x)
CAUTION: Easy Bracket can not be installed on the ceiling.
When it is installed on the wall, Peg for Easy bracket Hook (n) must be placed upwardly.
(n)
(o)
(p)
