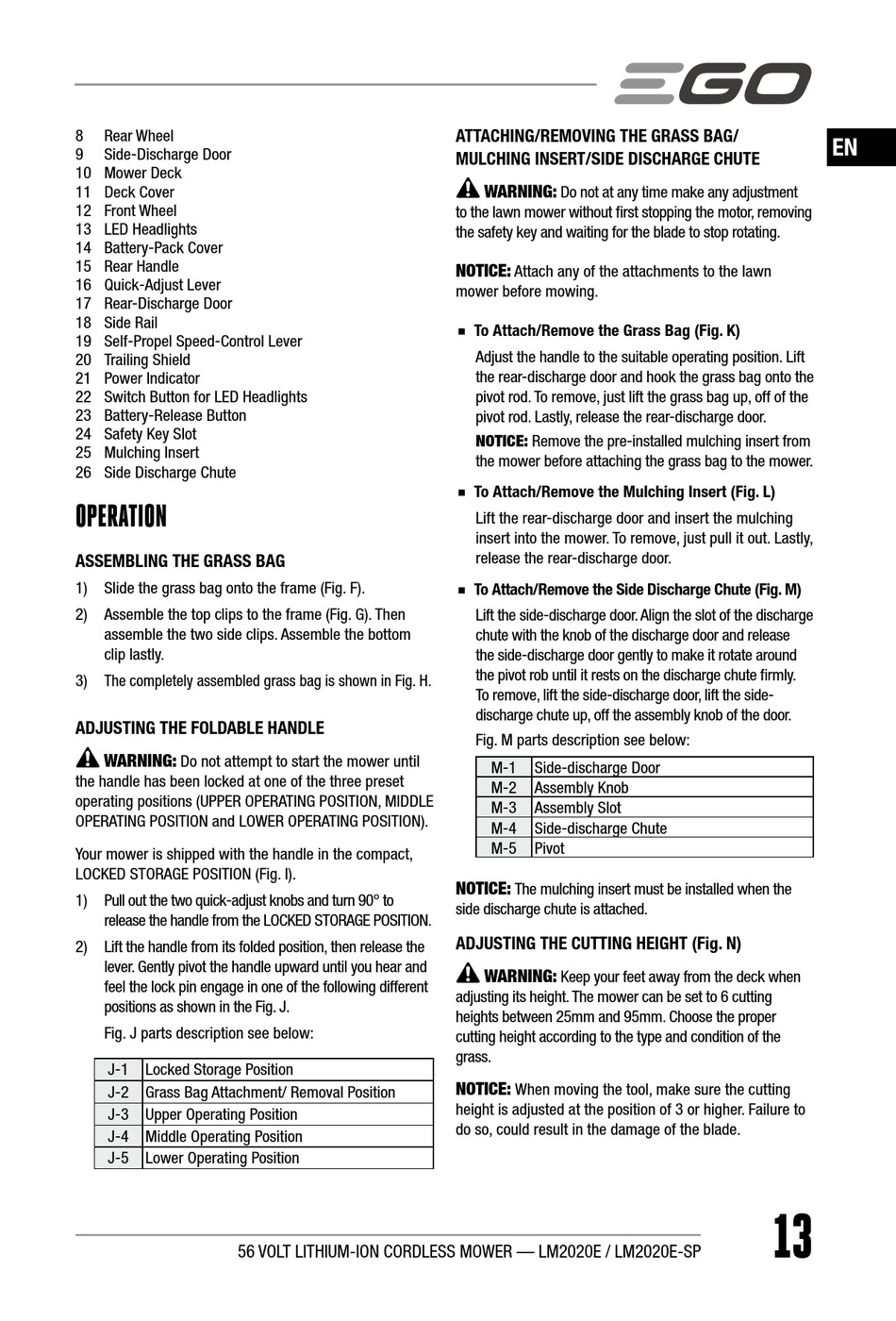

8
Rear Wheel
9
Side-Discharge Door
10 Mower Deck
11 Deck Cover
12 Front Wheel
13 LED Headlights
14 Battery-Pack Cover
15 Rear Handle
16 Quick-Adjust Lever
17 Rear-Discharge Door
18 Side Rail
19 Self-Propel Speed-Control Lever
20 Trailing Shield
21 Power Indicator
22 Switch Button for LED Headlights
23 Battery-Release Button
24 Safety Key Slot
25 Mulching Insert
26 Side Discharge Chute
OPERATION
ASSEMBLING THE GRASS BAG
1) Slide the grass bag onto the frame (Fig. F).
2) Assemble the top clips to the frame (Fig. G). Then
assemble the two side clips. Assemble the bottom
clip lastly.
3) The completely assembled grass bag is shown in Fig. H.
ADJUSTING THE FOLDABLE HANDLE
WARNING:
Do not attempt to start the mower until
the handle has been locked at one of the three preset
operating positions (UPPER OPERATING POSITION, MIDDLE
OPERATING POSITION and LOWER OPERATING POSITION).
Your mower is shipped with the handle in the compact,
LOCKED STORAGE POSITION (Fig. I).
1) Pull out the two quick-adjust knobs and turn 90° to
release the handle from the LOCKED STORAGE POSITION.
2) Lift the handle from its folded position, then release the
lever. Gently pivot the handle upward until you hear and
feel the lock pin engage in one of the following different
positions as shown in the Fig. J.
Fig. J parts description see below:
J-1 Locked Storage Position
J-2 Grass Bag Attachment/ Removal Position
J-3 Upper Operating Position
J-4 Middle Operating Position
J-5 Lower Operating Position
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2020E / LM2020E-SP
ATTACHING/REMOVING THE GRASS BAG/
MULCHING INSERT/SIDE DISCHARGE CHUTE
WARNING:
Do not at any time make any adjustment
to the lawn mower without first stopping the motor, removing
the safety key and waiting for the blade to stop rotating.
NOTICE:
Attach any of the attachments to the lawn
mower before mowing.
◾
To Attach/Remove the Grass Bag (Fig. K)
Adjust the handle to the suitable operating position. Lift
the rear-discharge door and hook the grass bag onto the
pivot rod. To remove, just lift the grass bag up, off of the
pivot rod. Lastly, release the rear-discharge door.
NOTICE: Remove the pre-installed mulching insert from
the mower before attaching the grass bag to the mower.
◾
To Attach/Remove the Mulching Insert (Fig. L)
Lift the rear-discharge door and insert the mulching
insert into the mower. To remove, just pull it out. Lastly,
release the rear-discharge door.
◾
To Attach/Remove the Side Discharge Chute (Fig. M)
Lift the side-discharge door. Align the slot of the discharge
chute with the knob of the discharge door and release
the side-discharge door gently to make it rotate around
the pivot rob until it rests on the discharge chute firmly.
To remove, lift the side-discharge door, lift the side-
discharge chute up, off the assembly knob of the door.
Fig. M parts description see below:
M-1
Side-discharge Door
M-2
Assembly Knob
M-3
Assembly Slot
M-4
Side-discharge Chute
M-5
Pivot
NOTICE:
The mulching insert must be installed when the
side discharge chute is attached.
ADJUSTING THE CUTTING HEIGHT (Fig. N)
WARNING:
Keep your feet away from the deck when
adjusting its height. The mower can be set to 6 cutting
heights between 25mm and 95mm. Choose the proper
cutting height according to the type and condition of the
grass.
NOTICE:
When moving the tool, make sure the cutting
height is adjusted at the position of 3 or higher. Failure to
do so, could result in the damage of the blade.
EN
13
