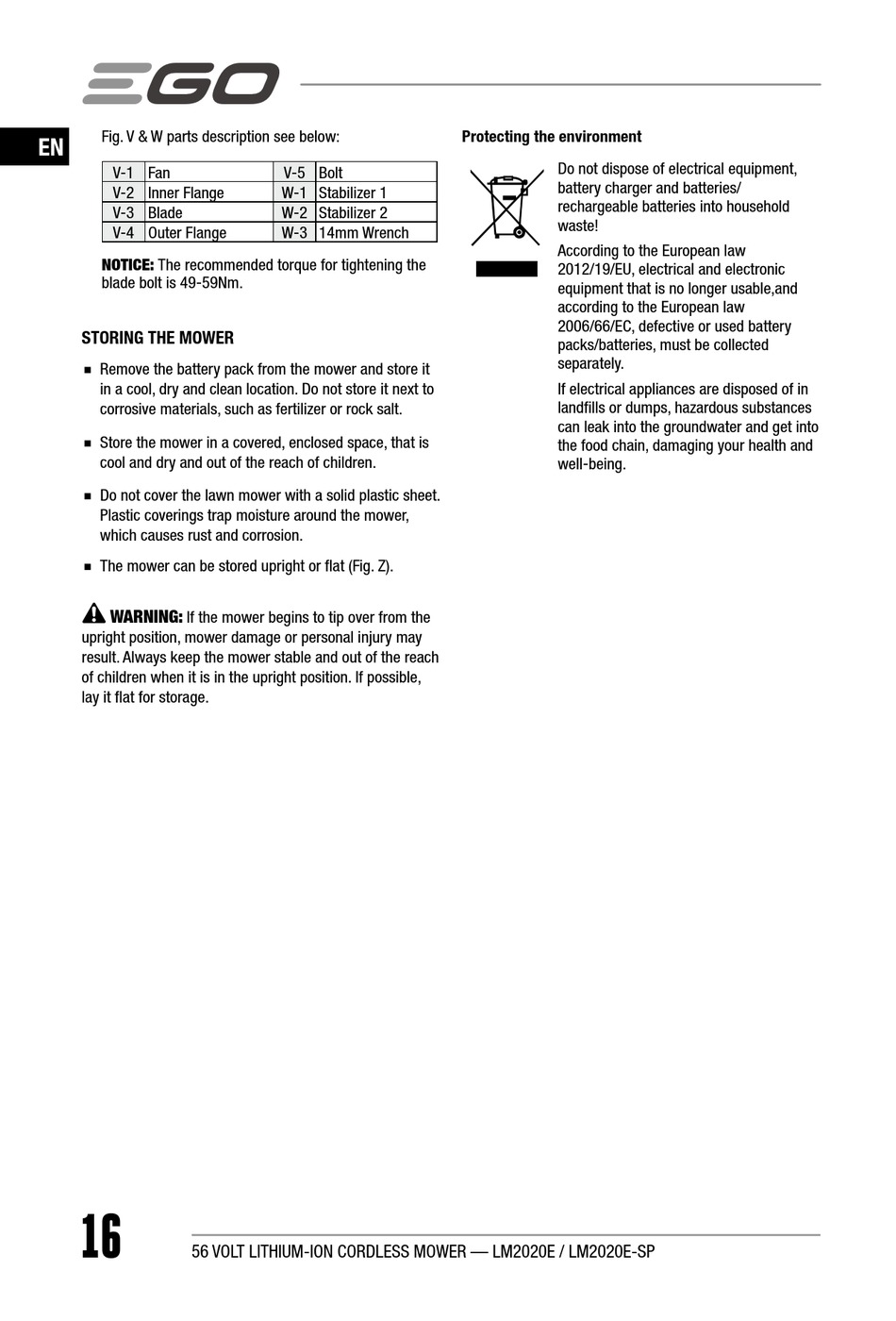

Fig. V & W parts description see below:
EN
V-1 Fan
V-2 Inner Flange
V-3 Blade
V-4 Outer Flange
NOTICE: The recommended torque for tightening the
blade bolt is 49-59Nm.
STORING THE MOWER
◾
Remove the battery pack from the mower and store it
in a cool, dry and clean location. Do not store it next to
corrosive materials, such as fertilizer or rock salt.
◾
Store the mower in a covered, enclosed space, that is
cool and dry and out of the reach of children.
◾
Do not cover the lawn mower with a solid plastic sheet.
Plastic coverings trap moisture around the mower,
which causes rust and corrosion.
◾
The mower can be stored upright or flat (Fig. Z).
WARNING:
If the mower begins to tip over from the
upright position, mower damage or personal injury may
result. Always keep the mower stable and out of the reach
of children when it is in the upright position. If possible,
lay it flat for storage.
16
56 VOLT LITHIUM-ION CORDLESS MOWER — LM2020E / LM2020E-SP
V-5 Bolt
W-1 Stabilizer 1
W-2 Stabilizer 2
W-3 14mm Wrench
Protecting the environment
Do not dispose of electrical equipment,
battery charger and batteries/
rechargeable batteries into household
waste!
According to the European law
2012/19/EU, electrical and electronic
equipment that is no longer usable,and
according to the European law
2006/66/EC, defective or used battery
packs/batteries, must be collected
separately.
If electrical appliances are disposed of in
landfills or dumps, hazardous substances
can leak into the groundwater and get into
the food chain, damaging your health and
well-being.
