SET-UP INSTRUCTIONS

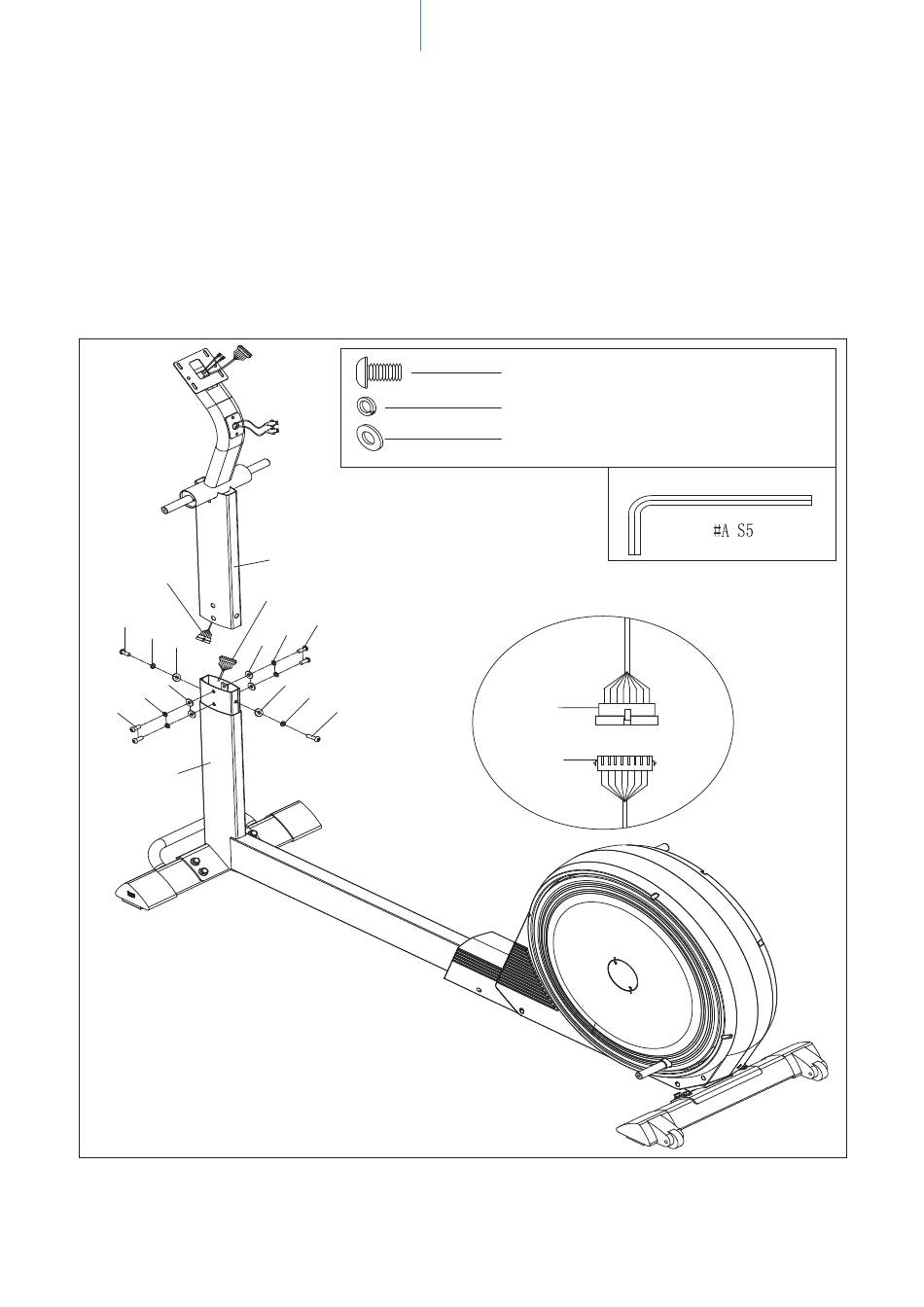

STEP 3
• Remove the screws (10), spring washers (11) and washers (12) from the main frame front part (34).
• Connect the cable parts (100b) and (101a).
• Insert the handle bar post (25) into the main frame front part (34) and fix with the screws (10),
spring washers (11) and washers (12).
25
100b
101a
10
11
12
12
12
11
10
34
10
11
12
11
10
32
#10 6 Pcs.
#11 6 Pcs.
#12 6 Pcs.
