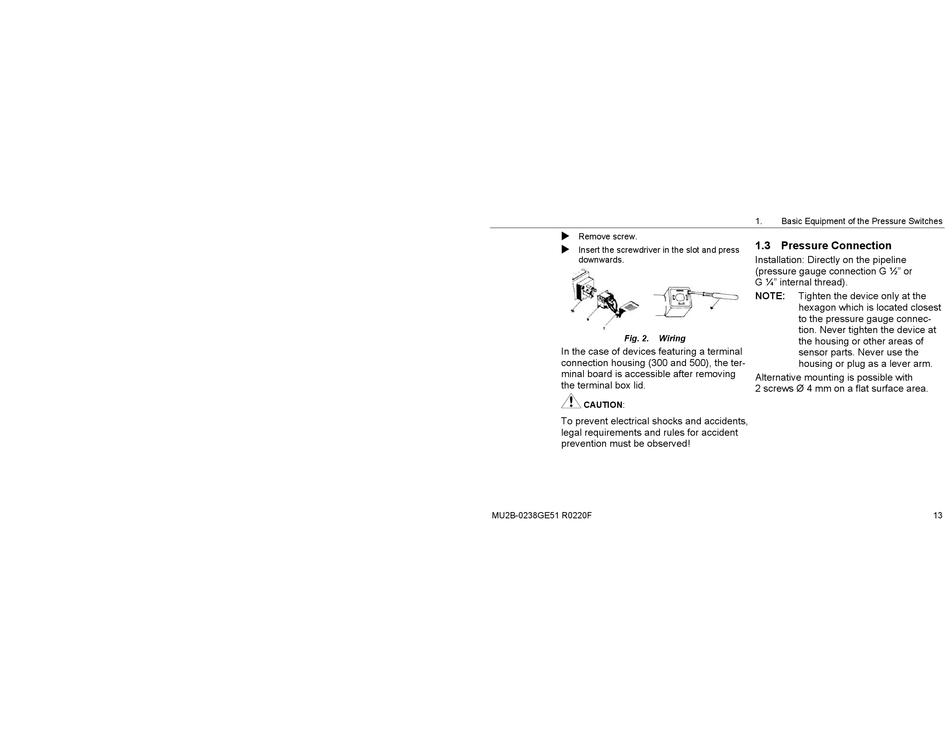

Remove screw.
Insert the screwdriver in the slot and press
downwards.
Fig. 2.
Wiring
In the case of devices featuring a terminal
connection housing (300 and 500), the ter-
minal board is accessible after removing
the terminal box lid.
CAUTION:
To prevent electrical shocks and accidents,
legal requirements and rules for accident
prevention must be observed!
MU2B-0238GE51 R0220F
1.
Basic Equipment of the Pressure Switches
1.3 Pressure Connection
Installation: Directly on the pipeline
(pressure gauge connection G ½" or
G ¼" internal thread).
NOTE:
Tighten the device only at the
hexagon which is located closest
to the pressure gauge connec-
tion. Never tighten the device at
the housing or other areas of
sensor parts. Never use the
housing or plug as a lever arm.
Alternative mounting is possible with
2 screws Ø 4 mm on a flat surface area.
13
