Two-Stage Pressure Switches ...-307, ...-217

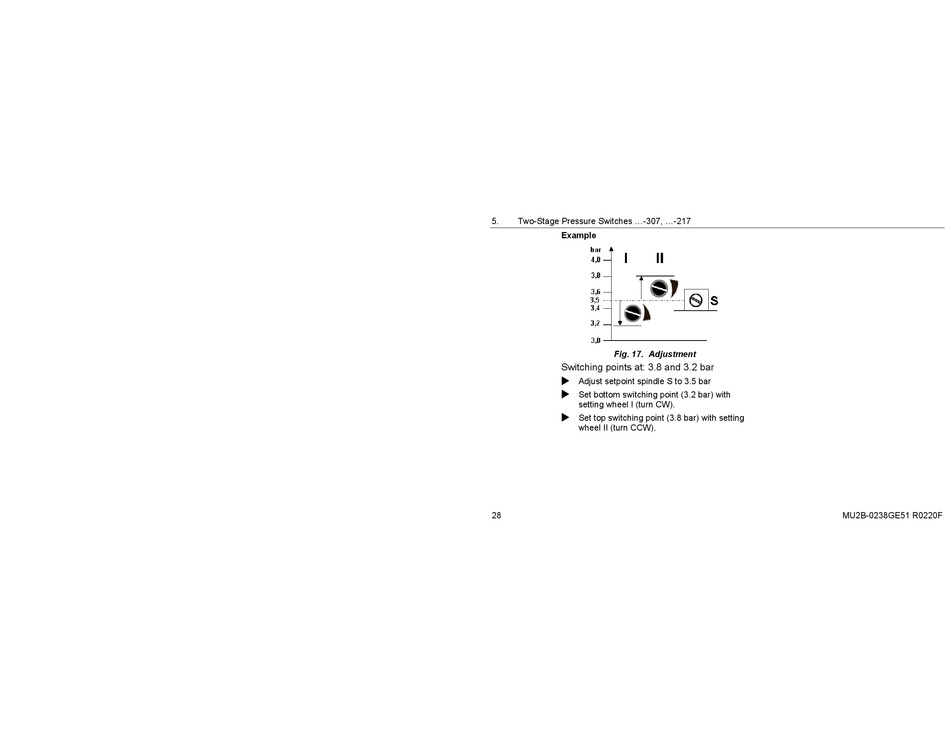

Example
Fig. 17. Adjustment
Switching points at: 3.8 and 3.2 bar
Adjust setpoint spindle S to 3.5 bar
Set bottom switching point (3.2 bar) with
setting wheel I (turn CW).
Set top switching point (3.8 bar) with setting
wheel II (turn CCW).
28
MU2B-0238GE51 R0220F
