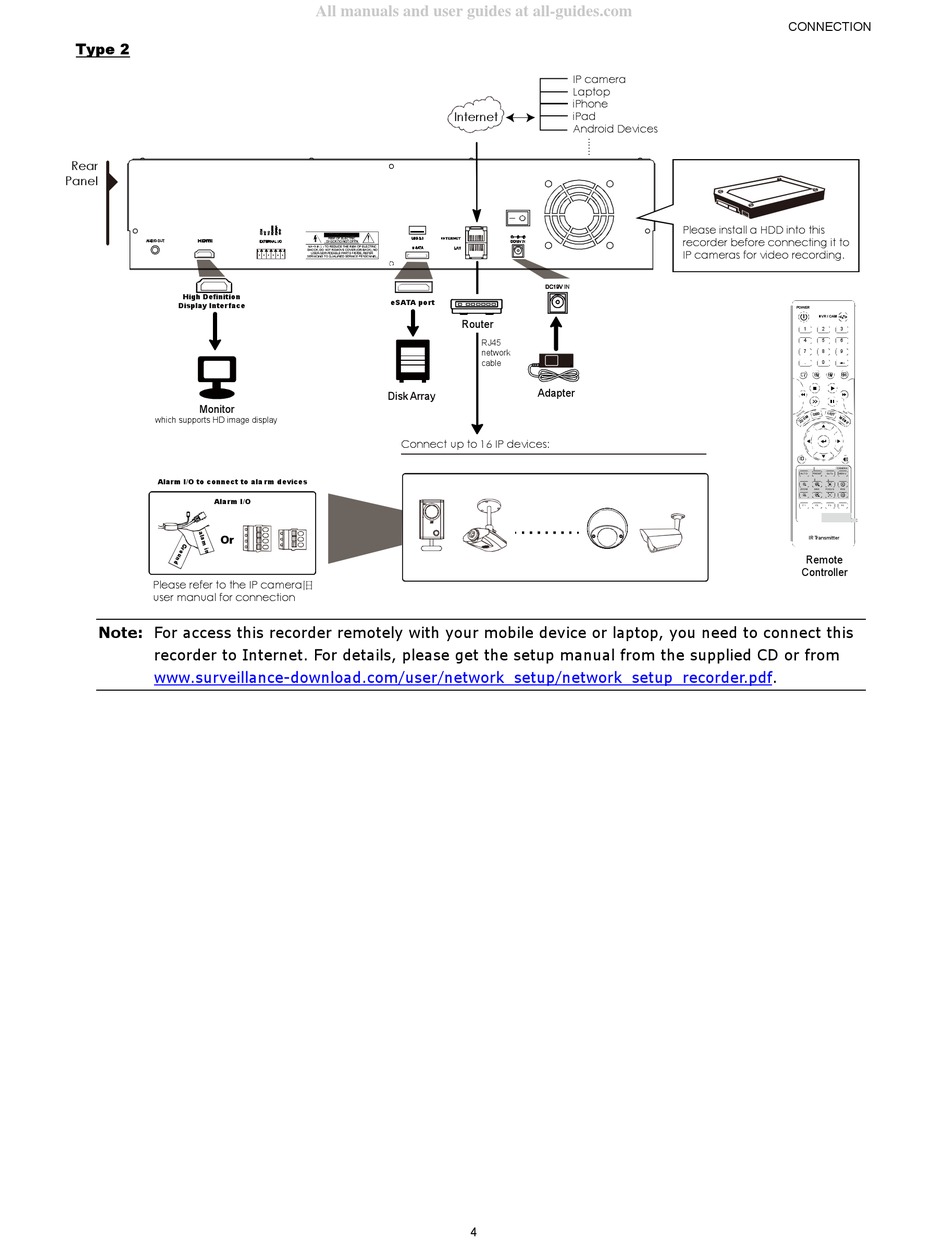

Type 2
Rear
Panel
High Definition
Display Inter face
Monitor
which supports HD image display
Alarm I/O to connect to ala rm devices
Alarm I/O
Or
Please refer to the IP camera旧
user manual for connection
Note: For access this recorder remotely with your mobile device or laptop, you need to connect this
recorder to Internet. For details, please get the setup manual from the supplied CD or from
www.surveillance-download.com/user/network_setup/network_setup_recorder.pdf.
All manuals and user guides at all-guides.com
Internet
eSATA port
Router
RJ45
network
cable
Disk Array
Connect up to 16 IP devices:
4
IP camera
Laptop
iPhone
iPad
Android Devices
Please install a HDD into this
recorder before connecting it to
IP cameras for video recording.
Adapter
CONNECTION
POWER
NVR / CAM
1 2 3
4 5 6
7 8 9
.
0
1 6 9
16
ID
CAMER A
AU T O PRESET Go To MEN U
ZOOM MAX FOCU S IRIS
F 1 F2 F 3 F4
IR Transmitter
Remote
Controller
