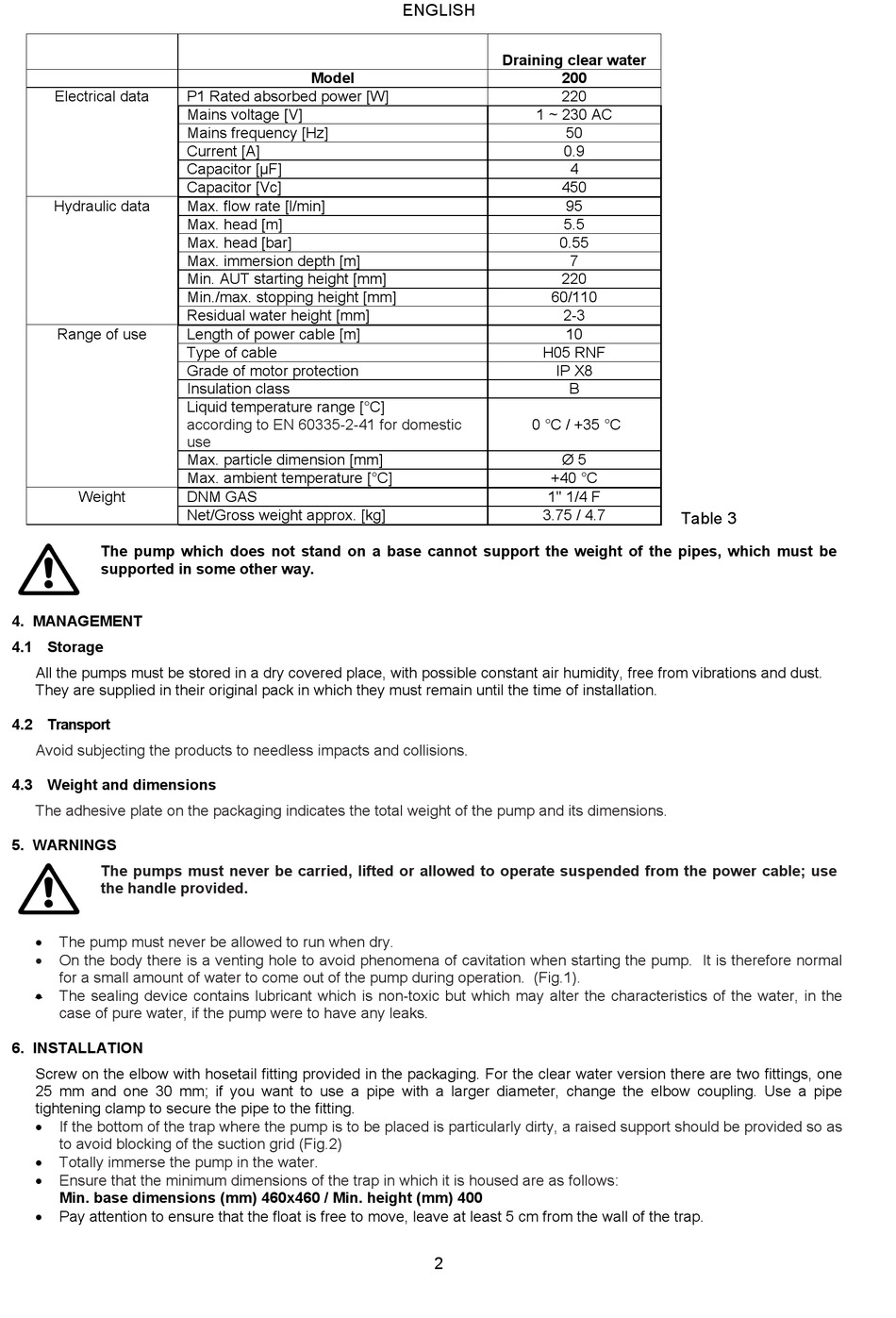

Electrical data
Hydraulic data
Range of use
Weight
The pump which does not stand on a base cannot support the weight of the pipes, which must be
supported in some other way.
4. MANAGEMENT
4.1 Storage
All the pumps must be stored in a dry covered place, with possible constant air humidity, free from vibrations and dust.
They are supplied in their original pack in which they must remain until the time of installation.
4.2 Transport
Avoid subjecting the products to needless impacts and collisions.
4.3 Weight and dimensions
The adhesive plate on the packaging indicates the total weight of the pump and its dimensions.
5. WARNINGS
The pumps must never be carried, lifted or allowed to operate suspended from the power cable; use
the handle provided.
The pump must never be allowed to run when dry.
On the body there is a venting hole to avoid phenomena of cavitation when starting the pump.
for a small amount of water to come out of the pump during operation. (Fig.1).
The sealing device contains lubricant which is non-toxic but which may alter the characteristics of the water, in the
case of pure water, if the pump were to have any leaks.
6. INSTALLATION
Screw on the elbow with hosetail fitting provided in the packaging. For the clear water version there are two fittings, one
25 mm and one 30 mm; if you want to use a pipe with a larger diameter, change the elbow coupling. Use a pipe
tightening clamp to secure the pipe to the fitting.
If the bottom of the trap where the pump is to be placed is particularly dirty, a raised support should be provided so as
to avoid blocking of the suction grid (Fig.2)
Totally immerse the pump in the water.
Ensure that the minimum dimensions of the trap in which it is housed are as follows:
Min. base dimensions (mm) 460x460 / Min. height (mm) 400
Pay attention to ensure that the float is free to move, leave at least 5 cm from the wall of the trap.
Model
P1 Rated absorbed power [W]
Mains voltage [V]
Mains frequency [Hz]
Current [A]
Capacitor [µF]
Capacitor [Vc]
Max. flow rate [l/min]
Max. head [m]
Max. head [bar]
Max. immersion depth [m]
Min. AUT starting height [mm]
Min./max. stopping height [mm]
Residual water height [mm]
Length of power cable [m]
Type of cable
Grade of motor protection
Insulation class
Liquid temperature range [°C]
according to EN 60335-2-41 for domestic
use
Max. particle dimension [mm]
Max. ambient temperature [°C]
DNM GAS
Net/Gross weight approx. [kg]
ENGLISH
Draining clear water
200
220
1 ~ 230 AC
50
0.9
450
95
5.5
0.55
220
60/110
2-3
10
H05 RNF
IP X8
0 °C / +35 °C
Ø 5
+40 °C
1'' 1/4 F
3.75 / 4.7
2
4
7
B
Table 3
It is therefore normal
